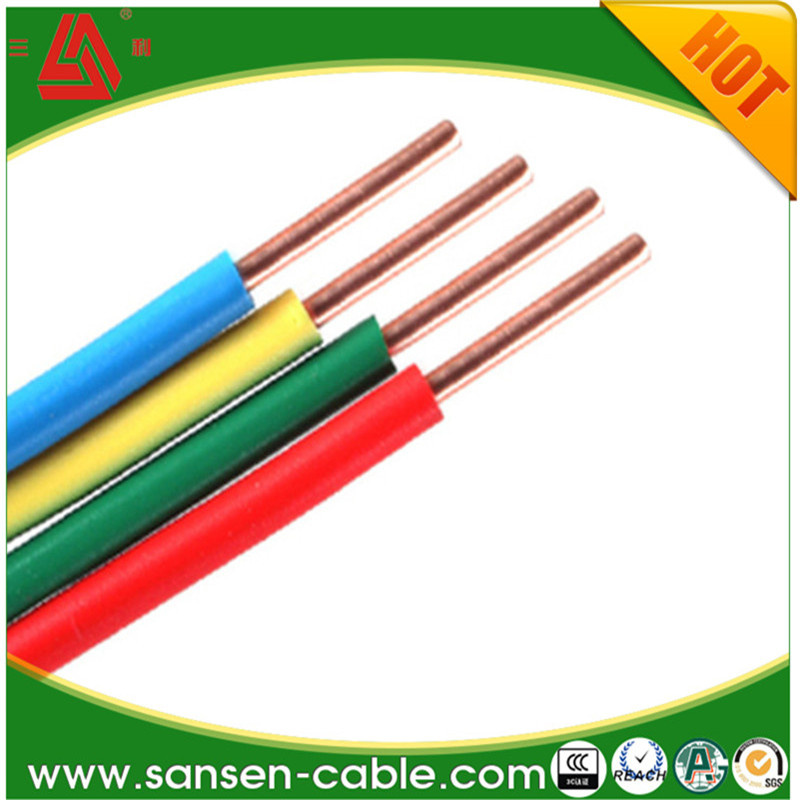

Electric Wire Single Wire Copper Core Ground Wire

Name: Electric Wire Single Wire Copper Core Ground Wire
Brand: all-electronics-online.com
SKU: 795453455
Availability: InStock
Rating: 4.4 (36 reviews)

Price:	US $ 1-3/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BV
Type:	Insulated
Conductor Type:	Solid
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Sheath Material:	No
Brand:	Sansen

Product Description

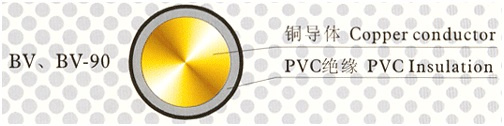

Synthetic data of 60227IEC01(BV)model 450/750V general purpose sheathless cable of single core hard conductor

Nominal cross section of conductor mm²	Conductor type	Rated value of insulator thickness mm	Upper value of average overall diameter mm	Minimum insulation resistance under temperature 70⁰C MΩ.km


1.5 1.5 2.5 2.5 4 4 6 6 10 10 16 25 35 50 70 95 120 150 185 240 300 400	1 2 1 2 1 2 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2	0.7 0.7 0.8 0.8 0.8 0.8 0.8 0.8 1.0 1.0 1.0 1.2 1.2 1.4 1.4 1.6 1.6 1.8 2.0 2.2 2.4 2.6	3.3 3.4 3.9 4.2 4.4 4.8 4.9 5.4 6.4 6.8 8.0 9.8 11.0 13.0 15.0 17.0 19.0 21.0 23.5 26.5 29.5 33.5	0.011 0.010 0.010 0.009 0.0085 0.0077 0.0070 0.0065 0.0070 0.0065 0.0050 0.0050 0.0040 0.0045 0.0035 0.0035 0.0032 0.0032 0.0032 0.0032 0.0030 0.0028

Note: 1.Conduct structure is selected according to GB/T3956.Type 1 is adopted as solid core conductor and type 2 is adopted as stranded conductor.
2.Insulator:PVC/C type PVC mixture is adopted as insulating material.
3.The average overall diameter should not be larger than the upper value stipulated in the above table.

FAQ:
Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, power cable ,control cable , telephone cable, speaker cable and ect.

Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.

Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.

Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.

Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.

Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.

Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.

Q8. Can you offer me a free sample?
A: Yes, we do, that is a start of business I think, and you will only pay the cost of delivery, which we will return it to you when you put the order.

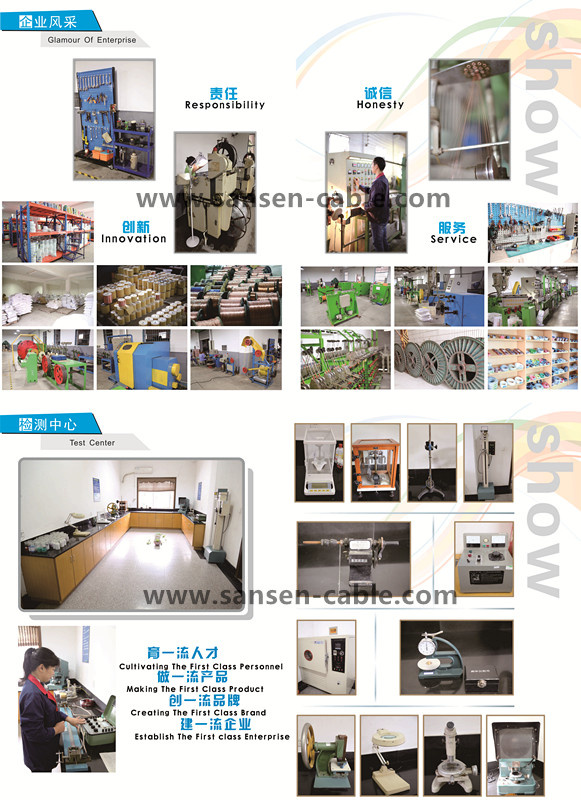

We are specialized in manufacturing of cables for more than 20 years. Can product Building cable, Electrical equipment cable, Automobile cable, Control cable, Coaxial cable, Network communication cable, Audio cable, Monitor cable and the like. We also offer OEM and ODM services.

Located in Huzhou, Zhejiang Province, where is between Shanghai and Hangzhou, we enjoy convenient transportation, thus we can ship goods in Shanghai Port as well as Ningbo Port. Our factory totally covers an area of 3, 000 square meters. High skilled staffs and technical engineers have been dedicated to cable techniques since our company was founded.

At the present, most of our customers are domestic trading companies, and 90% products are exported to all over the word via them; Meanwhile we are developing oversea market by ourselves.

We are keen on building long-term solid relationship with all serious buyers, with sincerity, we welcome you to China to visit our factory and office.
