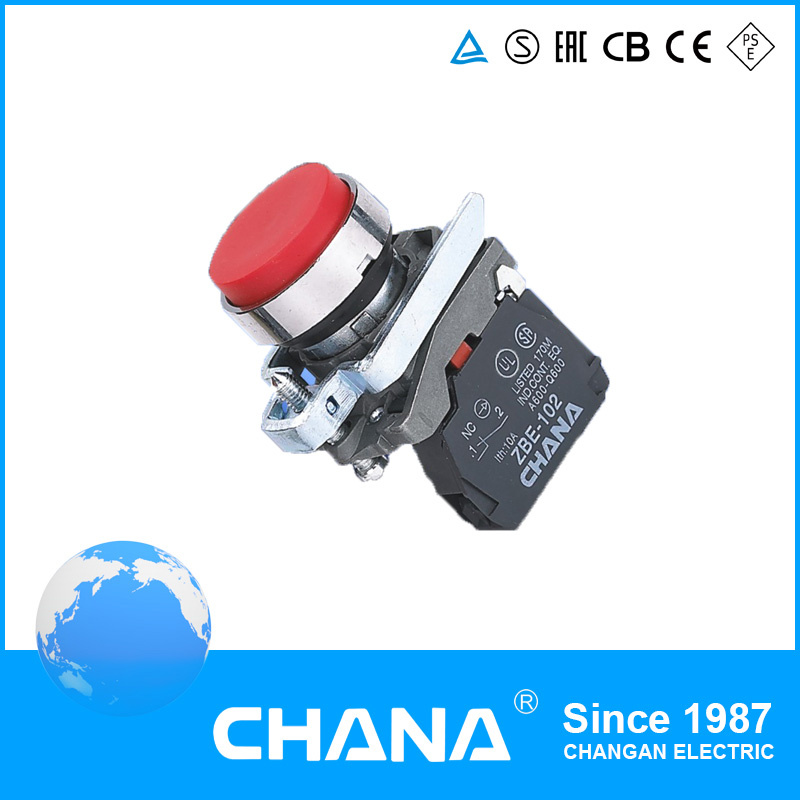

Electrical 22mm Pushbutton Switch with Ce RoHS Approval

Prod Model:	CB4-BD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contact:	Copper&Silver Contact
Manufacturer:	Original Factory
Loaction:	Liushi Wenzhou
Company Credit Rate:	AAA
Type:	Normal Open
Usage:	Reset Button
Kind:	Flushpushbutton
Brand:	Chana or OEM
Certification:	RoHS

Product Description

Standard Handle knob Pushbutton Switch

1. Application

The pushbutton series are used in controlling circuit of AC 50HZ or 60HZ, Voltage to 660V, DC coltage below 400v, it is used for controlling signal and interlocking. The main body adopts zinc alloy and high grade anti-flaming plastic, the contact adopts circuit of AC coltage 380v, 50hz or 60hz, DC vooltage below 380V, Used as kinds of indication signal, warning signal, accident signal and other signals. Our products comply withGB/T14048.1 and IEC60947-5-1, ALL PRODUCTS HAS GAINED ce, iso9001, ROHS and CE certification.

2. Specification


Operation temperature: -5ºC~+40ºC	Power-frequency withstand voltage:2500V, 1min
Operation humidity: 45%~85%	Electric durability: 50 x 104
Contact resistance: ≤50mΩ	Degree of protection: IP40
Rated insulation voltage	Ui 600V
Conventional thermal current	Ith 10A
Rated operation voltage	Ue 380V 220V 110V 48V 24V
Rated operation current	AC-5    2.5A    4.5A    6A    8A    -
	DC-13    -      0.3A    0.6A  1.3A  2.5



Description	Type	Scheme
Flush button spring return	CB4-BD21	N/O
	CB4-BD25	N/O+N/C
	CB4-BD41	N/O
	CB4-BD45	N/O+N/C
	CB4-BD33	2N/O
	CB4-BD53	2N/C
Button with protection cover IP65	CB4-BJ21	N/O
	CB4-BJ25	N/O+N/C
	CB4-BJ41	N/O
	CB4-BJ45	N/O+N/C
	CB4-BJ33	2N/O
	CB4-BJ53	2N/C

3. Certificate

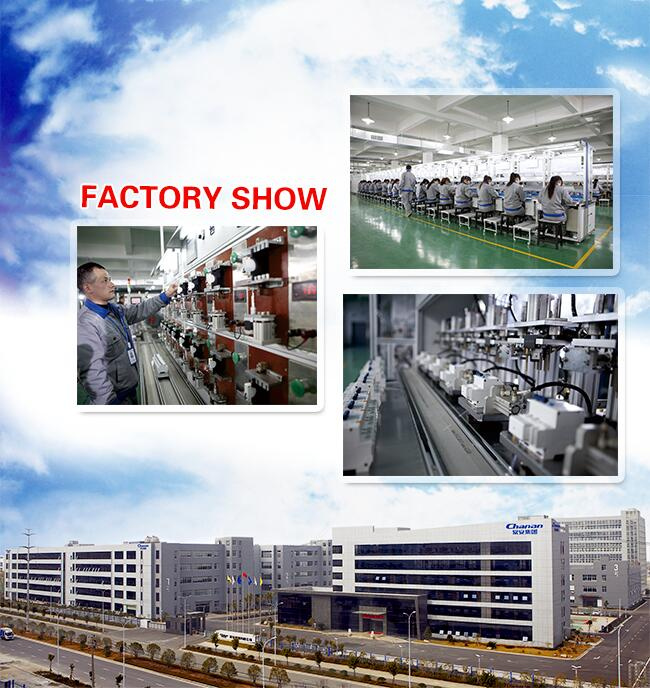

4. Company Profile

Changan Group Co., Ltd, Established in 1987, comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 30years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of Circuit Breaker,
Contactor, Relay, Switch, Solar Inverter etc..

1. We already get the certificate of ISO9001, CE, SGS.CB for most of our products.
2. We have 30 years of manufacture and 20 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Turkey, Europe, South America, Mid-east and Africa Market.
