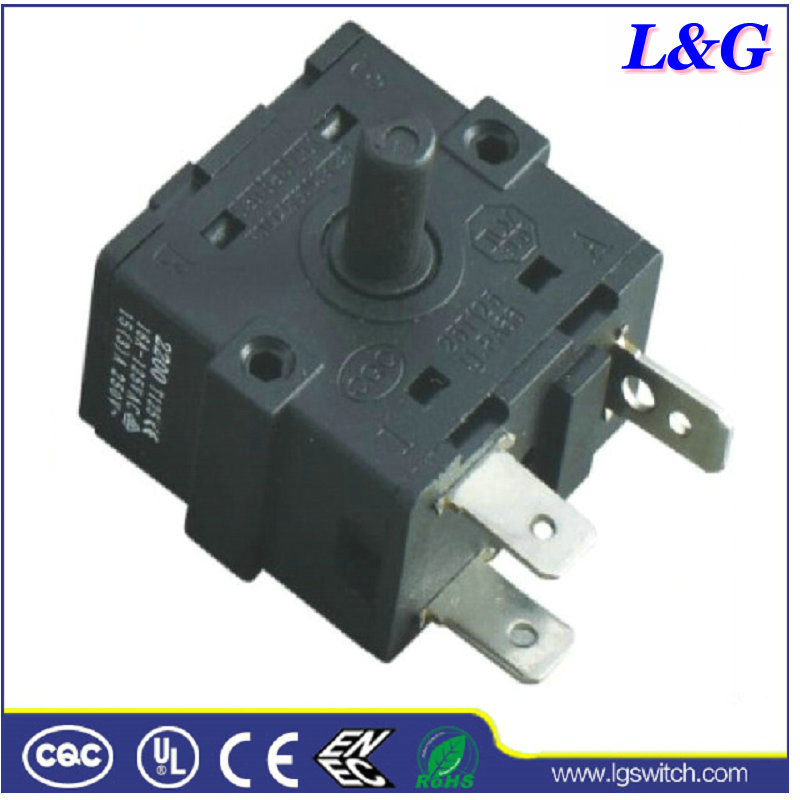

Electrical Appliances Power 2 Pole 4 Position Selector Rotary Switch

Name: Electrical Appliances Power 2 Pole 4 Position Selector Rotary Switch
Brand: all-electronics-online.com
SKU: 703433182
Availability: InStock
Rating: 4.5 (60 reviews)

Price:	US $ 0.1-0.3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rotation Angle Choose:	30
Mechanical Life:	50000 Cycles
No.of Poles:	1
No.of Switch Position:	2.3.4.5.6.
Max. Voltage:	250VAC
Max. Current:	16A
Svhc:	No Svhc
Rotary Number:	Single Button
Usage:	Digital Products
Standard:	Standard
Structure:	Self-Reset
Operation:	Knob
Certification:	UL,CB,Nemko,ENEC17
Condition:	New

Product Description

Max. Current:	16A/20A	Max. Voltage:	125V/250V	Mechanical Life:	10000
Color:	According to your requirements	Insulationresistance:	≥100mΩ	Contact resistance:	≤20mΩ
The shell material:	PA66	Withstand voltage1:	1500VAC for terminal to terminal 1 minute	Withstand voltage2:	3000VAC for terminal to body 1 minute
Electroplating:	silver (Ag)	Safety Certificate:	UL/VDE/ENEC/KC/CQC/ROHS	Glow-wire Test:	850ºC
Body and Actuator:	Nylon6.6

Items	Standard
Rated working voltage¤t	16A 250V, 20A125V
Contact resistance	less than or equal to 20mΩ
Insulation resistance	great than or equal to 100mΩ
Withstand Voltage	2000Vac
Operating temperature range	-40°C to 125°C
Lifetime	10000 Cycles
Flame Retardancy	UL94V0
Environmental humidity	45%~95%

Sample:

1. Free charge sample: Could provide(less than 10 PCS),freight collect

2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.

3. Samples payment term: T/T, PAYPAL, Western union

Quality Guarantee:

1.Strictly quality control before leave factory

2. Quality guarantee within one year

Advantage:

1.Low MOQ: 50~100PCS

2.New design Accepted: As your requirement

3.Good Service: Customer as God

4.Good Quality: Strict quality control and good reputation

5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)

Order Guide:

1. Inquiry-Professional quotation.

2. Confirm the price, lead time, packing requirement, payment term etc.

3. OMTER sales send the Proforma Invoice with OMTER seal.

4. Customer make the payment and send us Bank receipt.

5. Will inform client that we have got the payment, arrange the production & inform the estimated time.

6. After delivery will inform the tracking number and check the status for clients.

7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .

Dongguan Guanjun Electronic Technology Co., Ltd. Was established Taiwan in 1993. The factory in China mainland was established in 2007 and the HongKong office L&G ELECTRONICS Co., Ltd Was established in 2014. We turned into a manufacturer engaged in the R&D, manufacture and trading company of switches, Thermal protector, potentiometer and jacks.

Its leading products include switch products like Motor Thermal protector, power switch, rocker switch, trigger switch, micro switch, toggle switch, key switch and rotary switch, potentiometer etc.; And the jack/socket products like AC/DC jack, AV terminals, S-terminal and USB head and socket, etc.

The products are widely used for lighting decoration, toys, cold and hot fans, dust cleaner, vibrator, peripheral computer device and various video and audio products, electronic appliances, electronics, instrument and medical equipment.

After the development for a dozen of years, the company has turned into a corporate with powerful technology forces, self-contained production and testing equipment and complete quality assurance system; All operating procedures comply strictly with ISO9001 and ISO14000 Standards.

" It is our objective to innovate with science and technology, keep improving and launch sound services, We expecting the manufacturers and people from all walks of life for mutual refulgence.
