| Prod Model: |
RP14 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating Voltage: |
50V AC, 10V DC (Maxim) |
| Rotational Torque: |
10 to 200gf.Cm |
| Push-Pull Strength: |
8kgf.Cm (Minimum) |
| Shaft Wobble: |
0.6 X 20mm Vp-P (Maximum) |
| Operating Temperature Range: |
-30 to 60oc |
| Rotational Lifespan: |
30,000 Cycles |
| Total Rotational Angle: |
300 Degrees |
| Resistance: |
Variable Resistor |
| Function For Resistance: |
Protective Resistor |
| Installation: |
SMD Resistor |
| Material: |
Metal Film Resistor |
| Package Type: |
Throught Hole |
| Type: |

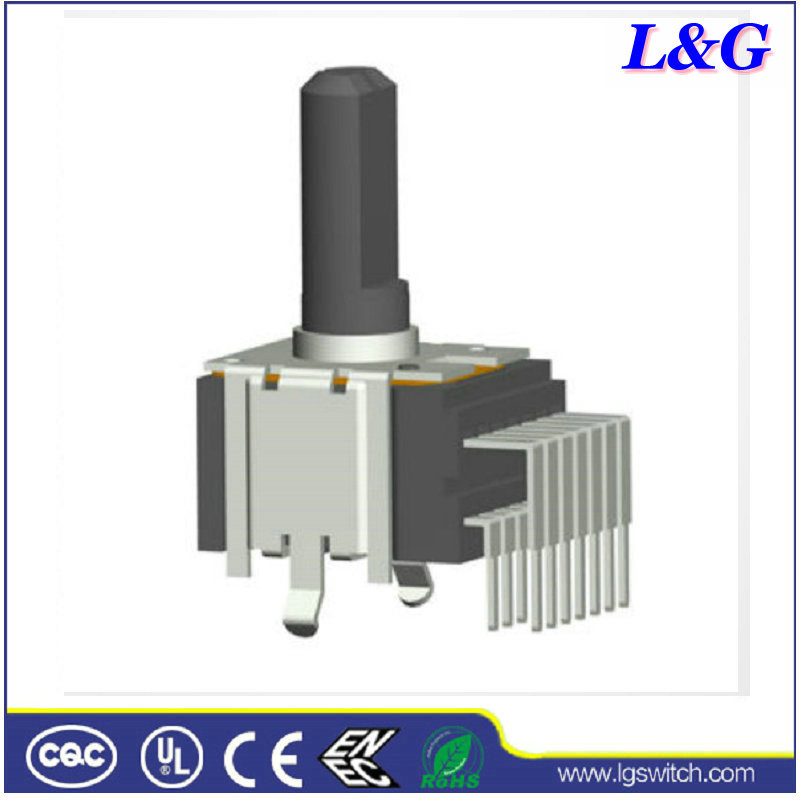

Rotary Potentiometer |
| Shape: |
Round |
| Brand: |
L&G |
Product Description
Mechanical characteristics:
Total resistance and tolerance: 500 to 200KΩ ±20%
Resistance taper: A/B/C/A&C/M&N taper
Power rating: 0.05W
Maximum operation voltage: 50V AC/20V DC
Residual resistance:
R≥250KΩ, 0.1% maximum of total resistance 10KΩ, 250KΩ, 20Ω maximum, R≤10KΩ, 10Ω maximum
Rotational noise: less than 100mV
Gang error (dual unit): -40 to 0dB≤±3dB
Insulation resistance: more than 100mΩ at 250V DC in 1 minute
Withstand voltage: 1 minute at 250V AC
Working temperature: -10 to 70°C
Storage temperature: -30 to 70°C
Mechanical characteristics:
Total rotation angle: 300°±10°
Rotation torque: 10 to 100gf.cm
Rotation stopper strength: ≥3Kgf.cm
Shaft push and pull strength: ≥3Kgf.cm
Shaft wobble: 0.7 x L/20mm p-p maximum
Number of detents (click): 1C (center detent)
Click torque: 30 to 150gf.cm
Resistance to soldering heat: manual soldering (temperature 300°C±10, time 3±1 second)
Rotational lifespan: 10,000 cycles minimum
Note: when the products without detent, the above 2 to 6, 2 to 7 items must be neglected
Product characteristic :
Knob it is an edge with one or a series of label of the common circular protrusion, disc or dial,
can be rotated or push pull, to start and to manipulate or control something. (such as radio or television).
It has plastic knob, baklite knob, aluminium knob,metal knob etc.
