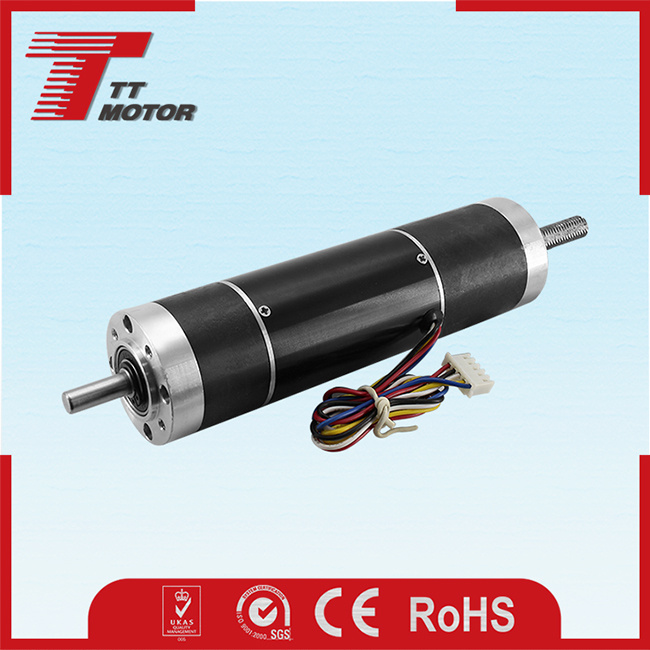

Electrical appliances switch control DC brushless gear motor

Prod Model:	DC Brushless Gear motor GMP42D-TEC4260
Product Name:	DC Brushless Gear motor GMP42D-TEC4260
Rated Voltage:	6V,12V
No-load Speed:	2500,5100r/min
No-load Current:	200,400mA
Rated Speed:	1700,4300r/min
Rated Torque:	250,330,430g.cm
Rated Current:	450,900,1200mA
Output Power:	6,11W
Stall Torque:	1300g.cm
Stall Current:	3.0,5.7A
Application:	Power Tools
Operating Speed:	Low Speed
Structure And Working Principle:	Brushless
Excitation Mode:	Permanent Magnet
Casing Protection:	Totally Enclosed
Type:	DC Brushless Gear motor
Certification:	RoHS CE
Brand:	TT motor

Product Description

Electrical appliances switch control dc brushless gear motor

Main Features
1.OEM/ODM 42mm Planetary gearbox plus TEC4260 permanent brushless motor
2.Small size dc gear motor with low speed and big torque
3.42mm gear motor provide 10.0Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.Reduction ratio:4,14,19,27,51,71,100,135,189,264,369,516,720

Motor model no.	Rated voltage	No-load speed	No-load current	Rated speed	Rated torque	Rated current	Output power	Stall torque	Stall current
	VDC	r/min	mA	r/min	g.cm	mA	W	g.cm	A
TFF-030PA-09220	6	2500	280	1700	330	1200	6	1300	5.7
TFF-030PA-10180	12	5100	400	4300	250	900	11	1500	3.0
TFF-030PA-06400	24	5100	200	4300	430	450	19	2700	3.0

 Gear motor technical data : GMP42D-TEC4260-0625-xxx

Reduction ratio	4	19	51	100	139	189	264	369	516	720
Length mm	31.5	42	52	52	52	62	62	62	62	62
No-load speed rpm	600	125	47	25	18	13	9	7	5	3
Rated speed rpm	425	90	33	17	12	9	6	4	3	2
Rated torque kg.cm	1.1	4.4	10	20	27	34	44	60	85	90
Max.momentary tolerance torque kg.cm	4.1	17	40	78	108	135	170	240	300	300


Gear motor technical data : GMP42D-TEC2460-1250-xxx

Reduction ratio	4	19	51	100	139	189	264	369	516	720
Length mm	31.5	42	52	52	52	62	62	62	62	62
No-load speed rpm	1250	260	98	50	36	27	19	14	10	7
Rated speed rpm	1070	225	84	43	31	23	16	12	8	6
Rated torque kg.cm	0.8	3.3	8	15	21	26	33	46	65	90
Max.momentary tolerance torque kg.cm	4.8	20	46	90	125	156	189	277	300	300

Gear motor technical data : GMP42D-TEC2460-2450-xxx

Reduction ratio	4	19	51	100	139	189	264	369	516	720
Length mm	31.5	42	52	52	52	62	62	62	62	62
No-load speed rpm	1250	260	98	50	36	27	19	14	10	7
Rated speed rpm	1070	225	84	43	31	23	16	12	8	6
Rated torque kg.cm	1.4	5.7	13	26	36	45	56	79	100	100
Max.momentary tolerance torque kg.cm	8.6	36	83	160	225	280	300	300	300	300
