| Prod Model: |
power cable |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Brand: |
Hanli |
Product Description

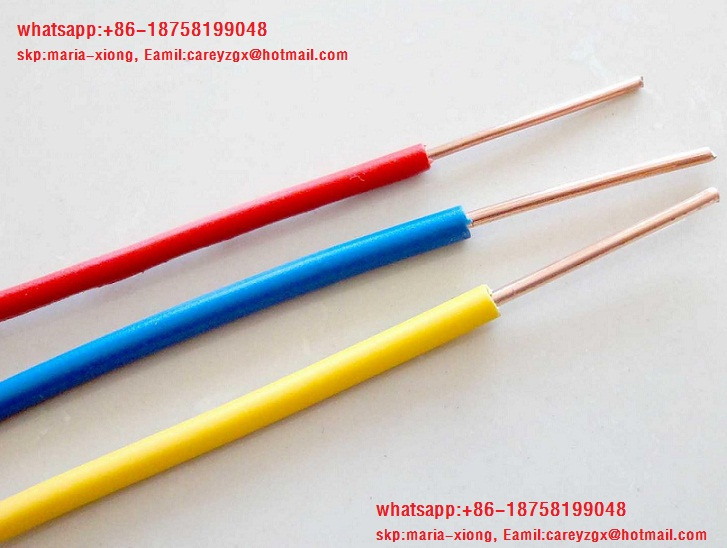

450/750V PVC Insulated (Non-Sheathed) Flexible Conductor General Purpose Cables to BS 6004
Harmonized Code
Designation H07V-K
Single Core PVC Insulated
| Size of conductor | Nominal thickness of insulation
mm | Mean overall diameter
Upper limit
mm | Approx. Net weight per km
Kg |
Nominal
Cross-sectional area
mm2 | Number and diameter of wires
No. /mm |
| 1.0 | 32/0.20 | 0.6 | 3.0 | 16 |
| 1.5 | 30/0.25 | 0.7 | 3.5 | 21 |
| 2.5 | 50/0.25 | 0.8 | 4.2 | 33 |
| 4 | 56/0.30 | 0.8 | 4.8 | 50 |
| 6 | 84/0.30 | 0.8 | 6.3 | 70 |
| 10 | 80/0.40 | 1.0 | 7.6 | 120 |
| 16 | 126/0.40 | 1.0 | 8.8 | 175 |
| 25 | 196/0.40 | 1.2 | 11.0 | 290 |
| 35 | 276/0.40 | 1.2 | 12.5 | 400 |
| 50 | 396/0.40 | 1.4 | 14.5 | 565 |
| 70 | 360/0.50 | 1.4 | 17.0 | 770 |
| 95 | 475/0.50 | 1.6 | 19.0 | 1010 |
| 120 | 608/0.50 | 1.6 | 21.0 | 1260 |
| 150 | 756/0.50 | 1.8 | 23.5 | 1580 |
| 185 | 925/0.50 | 2.0 | 26.0 | 1900 |
| 240 | 1221/0.50 | 2.2 | 29.5 | 2500 |
Notes
1. Conductor of high conductivity copper wires insulated with PVC compound.
2. Colors of standard: Red, black, brown, grey, orange, white, violet, pink, green/yellow, yellow
300/500V PVC Insulated PVC Sheathed Cables to BS 6004
Reference No 6243y
Three-core (Flat) with Bare
Earth-continuity Conductor
| Size of conductor | Nominal thickness
Of insulation
mm | Size of
Earth-
Conduct
-ivity
Conductor
No/mm | Nominal thickness
Of sheath
mm | Mean overall dimensions | Approx. Net weight per km
Kg |
Nominal
Cross-
Sectional area
mm2 | Number and diameter of wires
mm | Lower limit
mm | Upper
Limit
mm |
| 1.0 | 1/1.13 | 0.6 | 1/1.13 | 0.9 | 4.0*9.6 | 4.7*11.0 | 92 |
| 1.5 | 1/1.38 | 0.7 | 1/1.13 | 0.9 | 4.4*10.5 | 5.4*12.5 | 115 |
| 2.5 | 1/1.78 | 0.8 | 1/1.13 | 1.0 | 5.2*12.5 | 6.2*14.5 | 170 |
| 4 | 7/0.85 | 0.8 | 1/1.38 | 1.1 | 5.8*14.5 | 7.4*18.0 | 255 |
| 6 | 7/1.04 | 0.8 | 1/1.78 | 1.1 | 6.4*16.5 | 8.0*20.0 | 340 |
| 10 | 7/1.35 | 1.0 | 7/0.85 | 1.2 | 7.8*21.0 | 9.6*25.5 | 550 |
| 16 | 7/1.70 | 1.0 | 7/1.04 | 1.3 | 9.0*24.5 | 11.0*29.5 | 790 |
Notes
1. Conductor of high conductivity copper wires insulated with PVC compound. Sheathed with PVC compound.
2. Core colors: Red, yellow and blue(yellow in centre) Sheath colors: Grey or white.
300/300V PVC Insulated Parallel Flexible Cords to BS 6500
Reference No 2812X RVB
Twin Core
| Size of conductor | Nominal
Thickness
Of insulation
mm | Mean overall dimensions | Approx. Net weight per km
Kg |
Nominal
Cross-sectional area
mm2 | Number and diameter of wires
No/mm | Lower
Limit
mm | Upper
Limit
mm |
| 0.5 | 28/0.15 | 0.8 | 2.5X5.0 | 3.0X6.0 | 24 |
| 0.75 | 42/0.15 | 0.8 | 2.7X5.4 | 3.2X6.4 | 29 |
Notes
1. Conductors of high conductivity copper wires insulated with PVC compound.
2. One core with a ridge for identification.
300/500V and 450/750V PVC Insulated Flexible Cords to BS 6500/6004
Reference No 2491X
Single Core
| Size of conductor | Nominal
Thickness
Of insulation
mm | Mean overall diameter
Upper limit
mm | Approx. Net weight per km
Kg |
Nominal
Cross-sectional area
mm2 | Number and diameter of wire
No/mm |
| 0.5 | 16/0.20 | 0.6 | 2.6 | 10 |
| 0.75 | 24/0.20 | 0.6 | 2.8 | 13 |
| 1.0 | 32/0.20 | 0.6 | 3.0 | 16 |
| 1.5* | 30/0.25 | 0.7 | 3.5 | 20 |
| 2.5* | 50/0.25 | 0.8 | 4.2 | 32 |
| 4.0* | 56/0.30 | 0.8 | 4.8 | 49 |
Notes
1. Conductor of high conductivity copper wires insulated with PVC compound.
2. Standard colors: Red. Black, white, blue, brown, grey and green/yellow.
*: Rating Voltage 450/750V
300/500V PVC Insulated Twisted Twin Flexible Cords to BS 6500
Reference No 2492X
Twisted Twin
| Size of conductor | Nominal
Thickness
Of insulation
mm | Mean overall diameter of
Each core
Upper limit
mm | Approx. Net weight per km
Kg |
Nominal
Cross-sectional area
mm2 | Number and diameter of wires
mm |
| 0.5 | 16/0.20 | 0.6 | 4.6 | 20 |
| 0.75 | 24/0.20 | 0.6 | 5.0 | 26 |
| 1.0 | 32/0.20 | 0.6 | 5.4 | 33 |
Notes
1. Conductor of high conductivity copper wires insulated with PVC compound.
2. Two cores twisted together.
300/300V PVC Insulated PVC Sheathed Parallel Twin Light Flexible Cords to BS 6500
Reference No 2192Y
Parallel Twin
| Size of conductor | Nominal
Thickness
Of insulation
mm | Nominal
Thickness
Of sheath
mm | Mean overall dimensions | Approx. Net weight per km
Kg |
Nominal
Cross-
Sectional area
mm2 | Number and diameter of wires
No. /mm | Upper
Limit
mm | Upper
Limit
mm |
| 0.5 | 16/0.20 | 0.5 | 0.6 | 3.0X4.8 | 3.6X6.0 | 27 |
| 0.75 | 24/0.20 | 0.5 | 0.6 | 3.2X5.2 | 3.9X6.4 | 34 |
Notes
1. Conductors of high conductivity copper wires insulated with PVC compound. Sheathed with PVC compound.
2. Core colors: Blue and brown. Sheathed colors: Grey, white or black.
300/300V PVC/PVC Sheathed Circular Light Flexible Cords to BS 6500
Reference No 2182Y
Twin Core
| Size of conductor | Nominal
Thickness
Of insulation
mm | Nominal
Thickness
Of sheath
mm | Mean overall dimensions | Approx. Net weight per km
Kg |
Nominal
Cross-
Sectional
Area
mm2 | Number and diameter of wires
No. /mm | Upper
Limit
mm | Upper
Limit
mm |
| 0.5 | 16/0.20 | 0.5 | 0.6 | 4.8 | 6.0 | 36 |
| 0.75 | 24/0.20 | 0.5 | 0.6 | 5.2 | 6.4 | 45 |
Notes
1. Conductors of high conductivity copper wires insulated with PVC compound. Sheathed with PVC compound.
2. Core colors: Blue and brown. Sheathed colors: Grey, white or black.
Reference No 2183Y
Three Core
| Size of conductor | Nominal
Thickness of insulation
mm | Nominal
Thickness of
Sheath
mm | Mean overall dimensions | Approx. Net weight per km
Kg |
Nominal
Cross-
Sectional area
mm2 | Number and diameter of wires
No/mm | Lower
Limit
mm | Upper
Limit
mm |
| 0.5 | 16/0.2 | 0.5 | 0.6 | 5.0 | 6.2 | 44 |
| 0.75 | 24/0.2 | 0.5 | 0.6 | 5.4 | 6.8 | 55 |
Notes
1. Conductor of high conductivity copper wires insulated with PVC compound. Sheathed with PVC compound.
2. Core colors: Green/ yellow blue and brown. Sheathed colors: Grey, white or black.
300/500V PVC/PVC Sheathed Parallel Twin Flexible Cords to BS 6500
Reference No 3192Y
Parallel Twin
| Size of conductor | Nominal
Thickness of insulation
mm | Nominal thickness of
Sheath
mm | Mean overall dimensions | Approx. Net weight per km
Kg |
Nominal
Cross-
Sectional area
mm2 | Number and diameter of wires
No. /mm | Lower
Limit
mm | Upper
Limit
mm |
| 0.75 | 24/0.20 | 0.6 | 0.8 | 3.8*6.0 | 5.2*7.6 | 47 |
Notes
1. Conductors of high conductivity copper wires insulated with PVC compound. Sheathed with PVC compound.
2. Core colors: Blue and brown. Sheathed colors: Grey white or black.
300/500VPVC/PVC Sheathed Circular Flexible Cords to BS 6500
Reference No 3182Y
Twin Core
| Size of conductor | Nominal
Thickness of insulation
mm | Nominal
Thickness of
Sheath
mm | Mean overall dimensions | Approx. Net weight per km
Kg |
Nominal
Cross-
Sectional
Area
mm2 | Number and diameter of wires
No/mm | Lower
Limit
mm | Upper
Limit
mm |
| 0.75 | 24/0.20 | 0.6 | 0.8 | 6.0 | 7.6 | 63 |
| 1.0 | 32/0.20 | 0.6 | 0.8 | 6.4 | 8.0 | 73 |
| 1.25 | 40/0.20 | 0.7 | 0.8 | 7.0 | 8.6 | 84 |
| 1.5 | 30/0.25 | 0.7 | 0.8 | 7.4 | 9.0 | 95 |
| 2.5 | 50/0.25 | 0.8 | 1.0 | 8.9 | 11.0 | 145 |
Notes
1. Conductors of high conductivity copper wires insulated with PVC compound. Sheathed with PVC compound.
2. Core colors: Blue and brown. Sheathed colors: Grey. White or black.
Notes:
Conductors of high conductivity copper wires, insulated with PVC compound, two cores twisted together.
