Electrical Cable for House Wiring

Name: Electrical Cable for House Wiring
Brand: all-electronics-online.com
SKU: 687026842
Availability: InStock
Rating: 5 (120 reviews)

Price:	US $ 0.05-8.8/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	BV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	PVC Insulated Wire
Conductor:	Copper
Insulation:	PVC
Standard:	BS6004
Size:	1 to 500
Color:	as Required
Packing:	by Coil
Packing Length:	100m or as Request
Certificate:	Ce,ISO,CCC
OEM/Ogm Service:	Yes
Type:	Insulated
Conductor Type:	Solid
Application:	Household
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Sheath Material:	No
Range Of Application:	House Wiring
Brand:	Jytop

Product Description

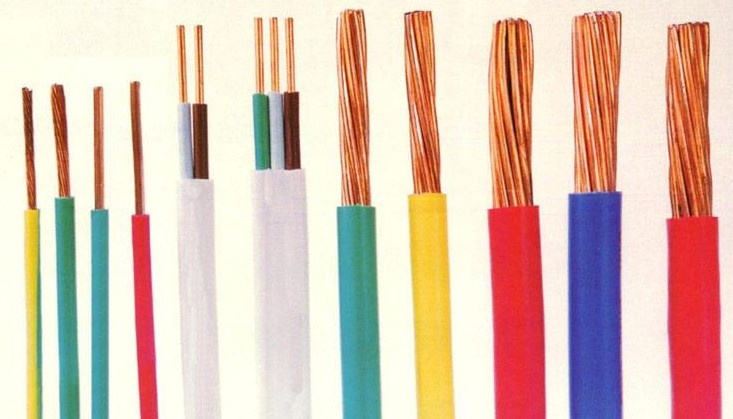

Electrical Cable for House Wiring
House Wiring & Flexible Cables, Electrical Cables

Application:
Electrical cable for housing is designed for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.

Standards: BS6004,
Conductor: Copper conductors to BS EN 60228: 2005 (previously BS6360)
Insulation: PVC (Polyvinyl Chloride) Type TI 1 to BS7655
Insulation Colour: Black, Blue, Green/Yellow, Red, Yellow, White, Violet, Brown, Grey, Orange, Pink
Temperature Rating: 0° C to +70° C
Minimum Bending Radius: 6 X overall diameter

Specification of Electrical cable for house wiring

Size of conductor		Nominal thickness of insulation mm	Mean overall diameter Upper limit mm	Approx. net weight per km (kg)
Nominal cross-sectional area mm2 (one core cable)	Number and diameter of wires no./mm	Nominal thickness of insulation mm	Mean overall diameter Upper limit mm	Approx. net weight per km (kg)
1.0	1/1.13	0.6	2.8	14
1.5	1/1.38	0.7	3.3	20
1.5	7/0.50	0.7	3.4	20
2.5	1/1.78	0.8	3.9	33
2.5	7/0.67	0.8	4.2	34
4	1/2.25	0.8	4.4	51
4	7/0.85	0.8	4.8	51
6	1/2.76	0.8	4.9	67
6	7/1.04	0.8	5.4	71
10	1/3.57	1.0	6.4	110
10	7/1.35	1.0	6.8	120
16	1/4.50	1.0	7.3	170
16	7/1.70	1.0	8.0	180
25	7/2.14	1.2	9.8	285
35	19/1.53	1.2	11.0	380
50	19/1.78	1.4	13.0	510
70	19/2.14	1.4	15.0	715
95	19/2.52	1.6	17.0	990
120	37/2.03	1.6	19.0	1230
150	37/2.25	1.8	21.0	1510
185	37/2.52	2.0	23.5	1900
240	61/2.25	2.2	26.5	2490
300	61/2.52	2.4	29.5	3050
400	61/2.85	2.6	33.5	3900
500	61/3.20	2.8	37.0	4880

Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,

PRODUCTS & STANDARDS & International Market:

1). Bare Conductor:

All Aluminum Conductor (AAC),

All Aluminum Alloy Conductor (AAAC),

Aluminum Conductor Steel Reinforced (ACSR),

Aluminum Alloy Conductor Steel Reinforced (AACSR),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),

Aluminum Conductor Aluminum Alloy Reinforced (ACAR),

Aluminum Conductor Steel Supported (ACSS),

Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)

All Copper Conductors(ACC),

Aluminum Coated Steel Wire(ACS),

Copper Coated Steel Wire(CCS),

Copper Coated Aluminum(CCA),

Galvanized Steel Wire(GSW),

Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire

2). Overhead Cable:

Aerial Bundled Cable (ABC).

XLPE Cable,

Flexible Cable,

Single Core Cable,

2 Core Cable,

3 Core Cable,

4 Core Cable.

3). Building wire and cable:

THHN /THWN Cable

TW/THW Cable

PVC Insulated Wire,

XLPE Insulated cable.

4. Power Cable:

Armored /Non-armored Power cable

AWA Cable

SWA Cable

Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.

We can meet customers' special requirements, and provided OEM service.

Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.

We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.
