Electrical Cable Wire Rg214 Coaxial Cable

Name: Electrical Cable Wire Rg214 Coaxial Cable
Brand: all-electronics-online.com
SKU: 643678775
Availability: InStock
Rating: 4.4 (62 reviews)

Price:	US $ 0.5-0.6km
Trade Terms:	FOB,CFR,CIF
Min Order:	5km
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG214
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Center Conductor:	Solid Bare Copper/Copper Clad Steel
Dielectric:	Foam PE/Solid PE
Shield:	Al Foil/Bonded Al Foil
Braiding Wire Material:	Al/Bc/Tinned Copper
Jacket:	PVC
Jacket Color:	Black,Per Customers' Special Requirement
Outer Packing:	Carton Box, Pull out Box, Pallet
Type:	Bare
Conductor Type:	Solid
Application:	Overhead
Insulation Material:	PE
Conductor Material:	Bc/CCS/CCA/Tc/Cu
Certification:	ISO ETL Ce RoHS Reach SGS BV
Brand:	Xinga/OEM

Product Description

1. Application:
Used as a distribution cable for indoor CATV, CCTV systems and as a connection cable
For satellite systems where lower attenuation required.
2. Packing:
1) Packing Lengths: 100/roll, 200 m/roll, 300m/roll. 305m/roll
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
3. Certificate:
We have pass the IS09001, CCC, Rohs, CE, and UL, in order to meet your market requirement
4. Exhibition Trade Show
We attend to 3-5 Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company to the future new customers.

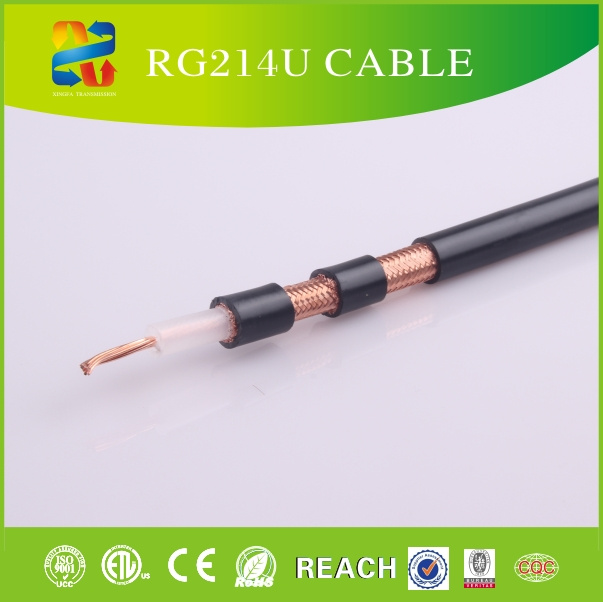

RG214 Coaxial Cable

Construction

Center Conductor:	7X0.75 Solid Copper
Dielectric:	7.25+0.02mm Solid PE
Braid Coverage:	96%: 0.16mm Copper/TC
	98%: 0.16mm Copper/TC
Jacket:	10.50+0.10mm PVC
Jacket Thickness:	1.10mm

Characteristics

Sparker Test:	4000VAC
Dielectric Strength:	Conductor to Shield: 10000 VDC
Impedance:	50+3Ohm
Capacitance:	100+3pF/Ft (Nom. )
Velocity of Propagation:	66.0%
DCR:	Conductor: 6.0 ohms/1000Ft
SRL:	15dB (10 to 300 MHz) Swept Tested

Attenuation

Attenuation	[@68o F. (20o C. )]
Frequency (GHz)	Nom. (dB/100 ft. )
0.05	5.2
0.10	7.6
0.20	11.0
