Shenzhen Rigao Electronics Co., Ltd. >> Electrical Control Panel Board, Distributionpanel Board

Electrical Control Panel Board, Distributionpanel Board

Electrical Control Panel Board, Distributionpanel Board
Price: US $ 0.15/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: Rigao PCB&PCBA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Board Thickness: 0.1mm~0.2mm
Min. Line Spacing: 0.1mm
PCB Testing: E-Testing
Min. Line Width: 0.1mm
Surface Finishing: HASL
Color Of Silk-Screen: White,Black,Silver
Copper Thickness: 1oz
Coler Of Solder Mask: Green, Black, Blue, White, Yellow
Engineering Support: Support
Structure: Multilayer Rigid PCB
Material: Polyester Glass Fiber Mat Laminate
Production Process: Additive Process

Product Description

        Welcome To Rigao Electronics

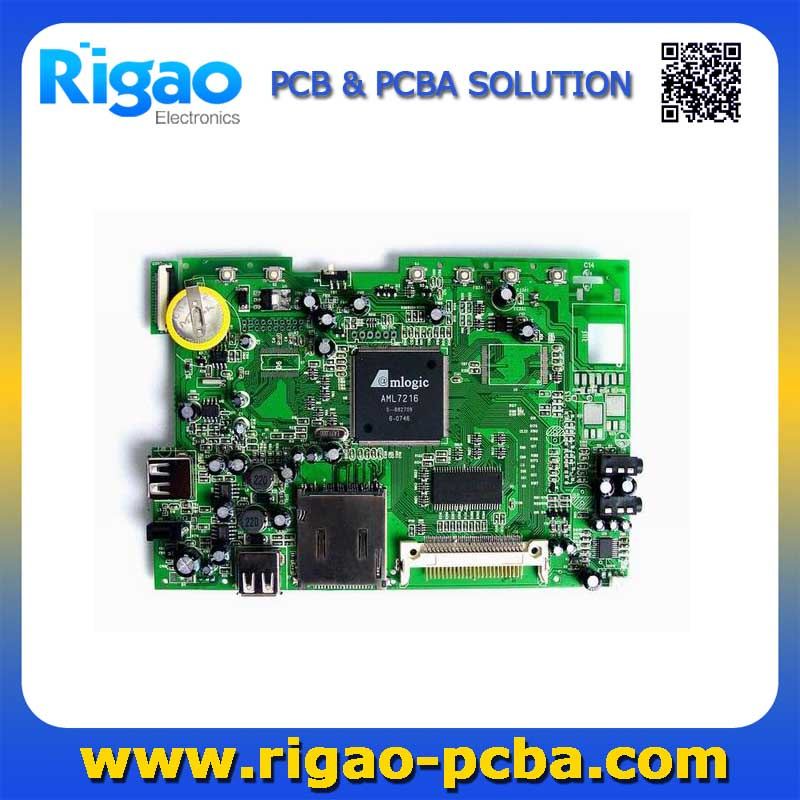

Electrical Control Panel Board, DistributionPanel Board



One-stop EMS service-----Your reliable PCB and PCB Assembly Supplier

1.Company profile:
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering a cost advantage and scheduled delivery.
 Our main services include offering
 Rigid PCB (up to 22 Layers),
 Flexible PCB/FPC (1~6 Layers),
 Rigid-Flex (2~10 Layers),
 Aluminum-based PCB (1~4 Layers),
 High Density Interconnection/HDI PCB,
 High frequency material PCB
 Assembly Services
 Components purchasing


2.General Specifications  Capability

(1)Material Requirements:

Size
Max.Finshed Size20.9"x24.4"(530mm x 620mm )
Board ThicknessStandard0.004"to0.16 " ±10% ( 0.1mmto4.0mm±10% )
Min. Single/ Double-sided:0.008"±0.004"(0.2mm ±0.1mm)
4-layer:0.01"±0.008"(0.4mm ±0.1mm)
8-layer :0.01"±0.008"(0.4mm ±0.1mm)
Bow and twist  < 7/1000
 Copper  Weight Outer Cu weight 0.5oz ~ 3.0oz
Inner Cu wight 0.5oz ~ 3.0oz
 Laminate MaterialsFR-4,FR-1,,FR-2,CEM-1,CEM-3



(2)Process Requirements:


Solder Mask
Colorgreen,light green,white,black,dark brown,yellow,red,blue
Min. solder mask clearance0.003"(0.07mm)
Thickness0.0005"-0.0007"(0.012mm-0.017mm)
SilkscreenColorWhite,black,yellow,red,blue,green
Min. Size0.006"(0.15mm)
Surface FinishHASL,HASL pb free,immersion gold,immersion silver,immersion tin,O.S.P (Entek),S/G plating,ENEPIG,G/F plating,carbon



(3)Quality Control:


Electrical testing
  Flying Probe TesterY
Controlled Impedance  Tolerance±10%
 Impedance testerTektronix TDS8200
Routing  End Mills Test± 0.006"(0.15mm)
  CNC Tolerance±0.004"(0.1mm)
  V-Cut Depth V-cutFR-4(1/3+-0.1mm);FR-1,FR-2,CEM-1,CEM-3(1/2+-0.1mm)
  V-cut angle V-CUT  15°,18°,30°
  V-CUT  line,hole,V-shape



(4)Certificates


UL Cert.
 Y
ISO Cert.ISO9001 :2008
TS16949Y
ISO14000Y



3.Manufacturing Capability for PCB Board

1). Material type: CEM-3,FR-4,FR-4-TG170/TG180,Halogen Free,Rogers,Arlon,Taconic,Isola,PTFE, Bergquist
2). Surface Treatment: HASL,HASL lead-free,HAL,Flash gold,immersion gold,OSP,Gold Finger Palting,Selective thick gold plating, immersion silver,immersion tin, Carbon ink,peelable mask
3). Solder mask colour: Green/MATT Green/Blue/Yello/White/Black/Red
4). Board Size: 650mm*1000mm
5). Board Layer: 1L-26L
6). Board thickness: 0.2mm to 6.0mm
7). Finished Copper thickness: 0.5 OZ to 6 OZ
8). Min. drilled hole size: 3mil (0.075mm)
9). Min. Line width/Line spacing: 3mil/3mil
10). Copper thickness in hole: >20um
11). Board thickness tolerance: ±10%
12). Outline tolerance: Routing:±0.1mm,Punching:±0.1mm
13). Hole tolerance: PTH: ±0.076mm , NPTH: ±0.05mm
14). impedance control tolerance: ±10%
15). Warp and Twist: <0.75%
16). Tested by:Flying-Probe Tester, Fixture tester , Visual Inspection
17). Special requirements: Buried and blind vias, impedance control, thick Cu PCB,selectivity plating gold 30 microinch
18). Profiling: Punching, Routing, V-CUT, Beveling
19). Certificate: UL,ISO 9001,ISO14001,ROHS
20). We have a sound quality management system,Ensure the quality of all products

FAQ:
Q: Why don't person reply to me?
A: Our person is 24hours on-line. When nobody reply you , please leave your requirements on e-mail or chat tool, we will reply you as soon as possible.
Q:Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q:How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture. You will get competitive price and better quality.
 Q:What does Rigao need for a customized Electronic pcb assembly  order?
 A:When you place a Electronic pcb assembly order, the customers need to provide Gerber or pcb file. If you do not have the file in the correct format, you can send all the details related to the products.
Q:How do you ship the goods and how long does it take?
A: We usually ship by UPS, TNT ,DHL, FEDEX.

Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.

As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.

Our main services include offering

Rigid PCB (up to 64 Layers)

Flexible PCB/FPC (1~6 Layers)

Rigid-Flex (3~18 Layers)

Aluminum-based PCB (1~6 Layers)

High Density Interconnection/HDI PCB

High frequency material PCB

DIP, COB, SMT assembly Services

Components Sourcing

We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.

Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.

Our Principle is simple, "Act by heart, Make the best. "

Our strength is distinct, "Years of experiences in PCB and PCBA field"

Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "

Our orientation is clear, "Focus on prototypes and low to medium volume business "

Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.

We are look forward to working with you!
