| Prod Model: |
DC Stepper Motor GM35-35BY |
| Reduction Ratio: |
19.30.60.120 |
| Rated Voltage: |
12 VDC |
| No.of Phase: |
4 |
| Step Angle: |
7.5 Degree |
| Gear Ratio: |
1/19,1/30,1/60 |
| Resistance: |
30,60,30ohm |
| Current: |
400,200,400mA |
| Holding Torque: |
3000,4000,6000 G.Cm |
| Pull In Rate: |
350PPS |
| Product Name: |
DC Stepper Motor GM35-35BY |
| Application: |
Power Tools |
| Operating Speed: |
Low Speed |
| Structure And Working Principle: |
Brushless |
| Excitation Mode: |
Pm-Permanent Magnet |
| Type: |
Stepper Motor |
| Certification: |
RoHS CE |
| Brand: |
TT motor |
Product Description

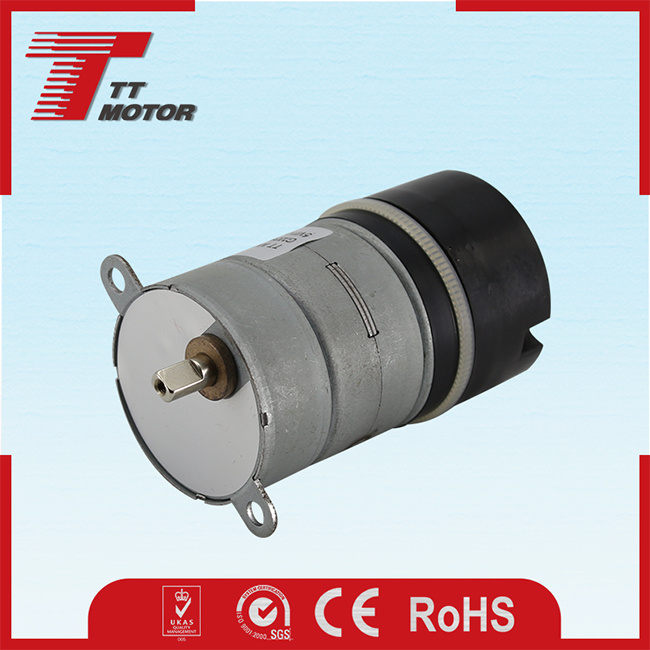

Electrical controlled valve mini 12V Stepper Motor
Product Application
Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.
Main Features
35mm gearbox plus 35mm stepping motor
Small size dc gear motor with low speed and big torque
35mm gear motor provide 0.2Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
Reduction ratio:19,30,60,120
Home appliance, electric curtai, door lock, automatic tv rack, slot machine, currency acount machine, office autination, automatic door lock.
| Motor model No. | Rated voltage | No.of Phase | Step Angle | Gear Ratio | Resistance | Holding Torque | Current | Pull in Rate |
| VDC | | | | | Ω | mA | pps |
| GM35-35BY-19 | 12 | 4 | 7.5° | 1/19 | 30 | 3000 | 400 | 350 |
| GM35-35BY-30 | 12 | 4 | 7.5° | 1/30 | 60 | 4000 | 200 | 350 |
| GM35-35BY-60 | 12 | 4 | 7.5° | 1/60 | 30 | 6000 | 400 | 350 |
Packing & Delivery
Packaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
China Post: Depends on ship to which country;
Sea: Depends on ship to which country
