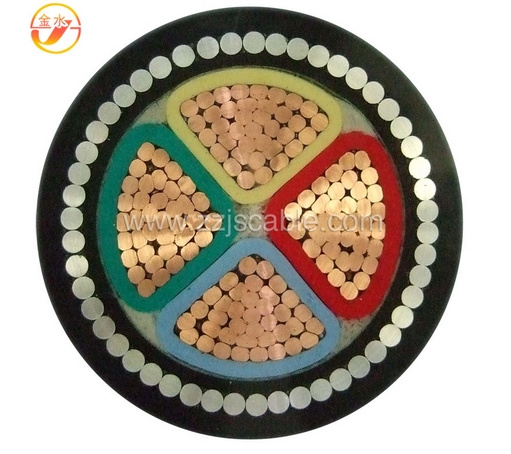

Electrical Copper Conductor XLPE Power Cable Armoured
| Price: |
US $ 0.99/Meter |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
YJV |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
VDE |
| Brand: |
Jinshui |
Product Description
Specifications
cable manufacturing process
1.CCC and ISO9001-2000 certification
2.Factory price
3.PVC or XLPE insulation
cable manufacturing process
The product is fit for electric transmission and distribution system operating at rated voltage of 0.6/1 3.6/6 6/6 6/10 8.7/10 8.7/15 21/35 26/35KV
Product Standard
GB/T12706.1-2002<
>
GB/T12706.2-2002<>
GB/T12706.3-2002<>
Service Characteristic
1.
1.the long-time working temperature of cable should not be higher than 90°C.
2.When core is in short-circuit (max 5s) the temperature should not exceed 250°C.
3.While installation the ambient temperature should not be lower than 0°C.
4.The bending radius should not be less than:(D is outer diameter cable)
(1) single-core cables:unarmored 20D;armored 15D.
(2) much-core cables:unarmored 15D;armored 12D.
Model and name| Model | Name |
| YJV YJLV ZR-YJV ZR-YJLV | XLPE insulated PVC sheathed electric cable
XLPE insulated PVC sheathed flame retardent electric cable |
| YJV22 YJLV22 ZR-YJV22 ZR-YJLV22 | XLPE insulated steel tape armored PVC sheathed electric cable XLPE insulated steel tape armored PVC sheathed flame retardant electric cable |
| YJV23 YJLV23 ZR-YJV23 ZR-YJLV23 | XLPE insulated steel tape armored PE sheathed electric cable XLPE insulated steel tape armored PE sheathed flame retardant electric cable |
| YJV32 YJLV32 ZR-YJV32 ZR-YJLV32 | XLPE insulated steel tape armored PVC sheathed electric cable XLPE insulated steel tape armored PVC sheathed flame retardant electric cable |
| YJV33 YJLV33 ZR-YJV33 ZR-YJLV33 | XLPE insulated steel tape armored PE sheathed electric cable XLPE insulated steel tape armored PE sheathed flame retardant electric cable |
| YJV42 YJLV42 ZR-YJV42 ZR-YJLV42 | XLPE insulated steel tape armored PVC sheathed electric cable XLPE insulated steel tape armored PVC sheathed flame retardant electric cable |
| YJV43 YJLV43 ZR-YJV43 ZR-YJLV43 | XLPE insulated steel tape armored PE sheathed electric cable XLPE insulated steel tape armored PE sheathed flame retardant electric cable |
Cross-linked polyethylene insulated power cable not only has excellent electric,mechanical properties,but also has powerful resistance against chemical corrosion,heat aging and environmental stress.Its structure is simple.The long term operature is 90°C
.It is convenient to use and can be laid with no restriction of differentlevel.
Our enterprise can produce both flame retardant and non-flame retardant series of XLPE power cable.
Our XLPE power cable covers all kinds of low-smoke low-halogen,low-smoke halogen free and three classes of A,B,C.
We can design and manufacture special XLPE cable according to the other standards requird by the customers,such as Heavy section cut apart conductors,water-resistance,defend termites,defend mouse,and so on.
Established in 1984, Henan Jinshui Cable Group Co., Ltd. specializes in design and manufacture of various kinds of wires and cables. Our company's headquarters is located in Zhengzhou City of Henan Province, a famous city with convenient transportation in China.
Our company is in charge of 23 domestic sale companies and one trade company, Zhengzhou Jin Hang High-Tech Co., Ltd., mainly responsible for overseas market. There are 638 staff members in the factory, including 18 experienced engineers, 52 lab assistants and 568 workers. The capital asset reached USD10, 507, 000. We have various advance product lines and equipment, including 180 sets for producing use and 40 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We also have some ability to satisfy special need of customers. The annual product capacity of cables and wires of our factory is more than 10, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Henan Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries. We insisted that pay adequate attention to every customer's request. We insist on our principle of "Good Quality Results Trust and Honesty Makes Success". We sincerely welcome you to touch with us and visit us.
