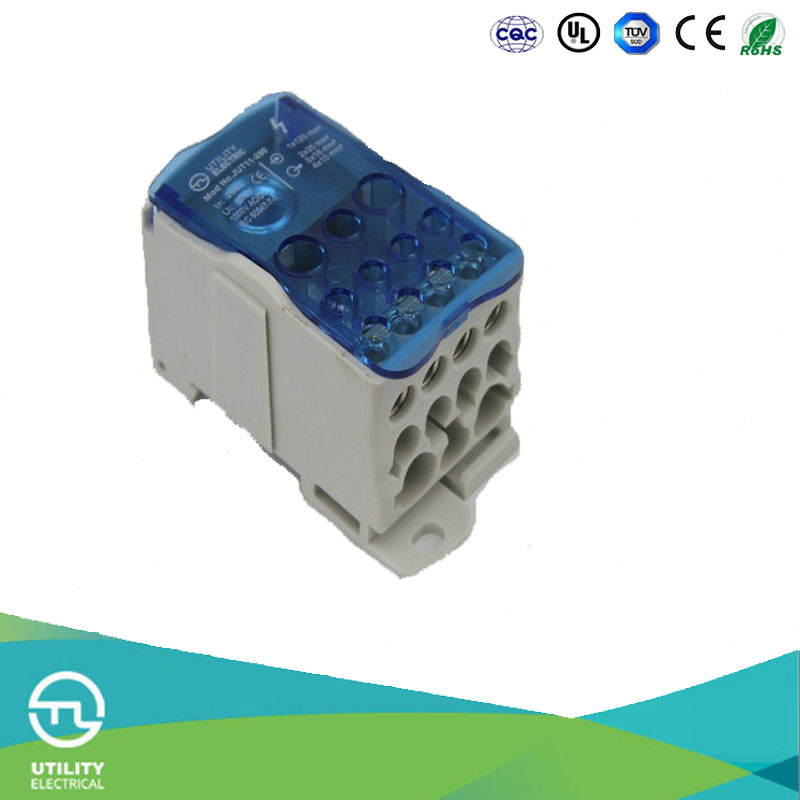

Electrical DIN Rail Distribution Copper Universal Terminals Block Connector

Name: Electrical DIN Rail Distribution Copper Universal Terminals Block Connector
Brand: all-electronics-online.com
SKU: 816731675
Availability: InStock
Rating: 4.7 (125 reviews)

Price:	US $ 4.38/Piece
Min Order:	100/Piece
Pay Type:	Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JUT11-125
Current Rating:	125A
Mounting Hole:	64mm
Size:	774629mm
Vir:	600V
Type:	Single Hole Terminals
Material:	Copper
Application:	Conduct Electricity
Certification:	RoHS
Brand:	Utl

Product Description

Model No.	JUT11-125
Item name	Universal Power Distribution Terminal Block
Color	Blue or OEM
Current (Amp)	150A
Voltage(V)	690V IEC
Dimensions (LxWxH)	29x46x77(mm)
Insulation resistance	DC 1000V 1000MΩ min
Income line specification	→ In 4×15.5×0.8 to 8×24 x1 Out→ 6 to 35 x2 Out→ 2.5 to 16 x5 Out→ 2.5 to 10 x4
Mouldar	Allows a variety of combinations,can be used unipolar,bipolar,three poles,four poles
Payment term	A.Below US$300,western,paypal accepted B.Above US$300,bank account
Certificate	TUV/CE/UL/VDE/RoHS/SGS/CCC/CQC approved standard
Logo	Customized logo are available as request
Design ability	We can supply sample,OEM&ODM is welcome

Features:

Material:
Cover: PC UL94-V0 Body: PA66 UL94-V0 Block: Copper(Ni Plated)
Screw: Steel(Zinc Plated) Fixed Part: Steel(Zinc Plated) Standard: IEC 60947-7-1 IP20
Electrical:
(1) Voltage rating/Current rating: 690V/30A~500A;
(2) Insulation resistance: DC 1000V 1000MΩ min;
(3) Contact resistance: 20MΩ max;

UTL ELECTRICAL CO,. LTD. is a PROFESSIONAL MANUFACTURE of all kinds of terminal blocks, which was founded in 1990. Through persistent research and development, we have grown into a leading manufacturer of this field. The main products have gained the certifications, such as VDE, UL, CE, RoHS, ISO9001, CCC and CCS etc.

Our advantages:

1.We are one of the only companies in China who have applied for UL witness laboratory.
2.More than 25 years of export experience support us to do superior service to meet customers special requirement.ODM is available.Your pormpt reply will be highly appreciated.

Product Features:
Advantage:High contact pressure,reliable connection.Screw retention,shaker proof.
Application:European terminal block is one of the most widely used product which can be assembled on Din Rail.When screw tighten,the connecting wire will be fixed on terminal block

Miya Zhang./ sales manager./UTL.
Mob:+86 156 0587 2925
Tel: +86 577 6265 8507

Web: www.china-utl.com

UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
