| Prod Model: |
PL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Cold-Rolled Sheet Steel |
| Color: |
Ral 7032/Ral 7035/Customize |
| Surface Finish: |
Epoxy Thermosetting Powder Coating |
| Thickness: |
1.2mm |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
| Certification: |
ISO9001:2008,RoHS |
| Size: |
150X150X80mm to 800X400X120 |
| Application Range: |
Electrical Distribution |
| Shell Protection Grade: |
IP66 |
| Brand: |
Prota |
Product Description

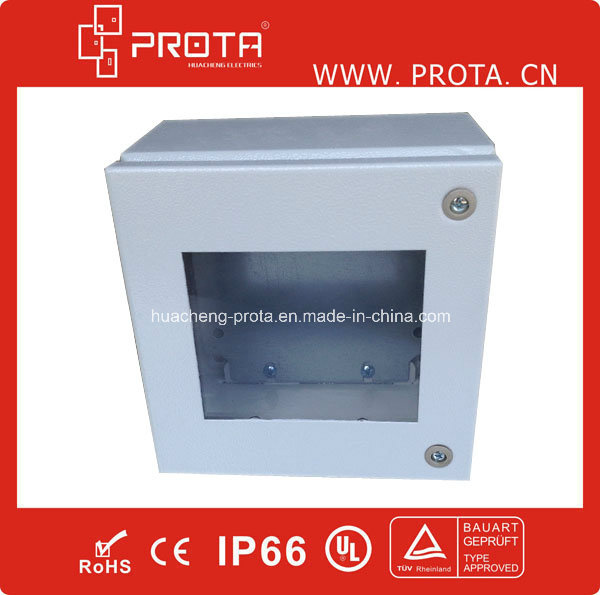

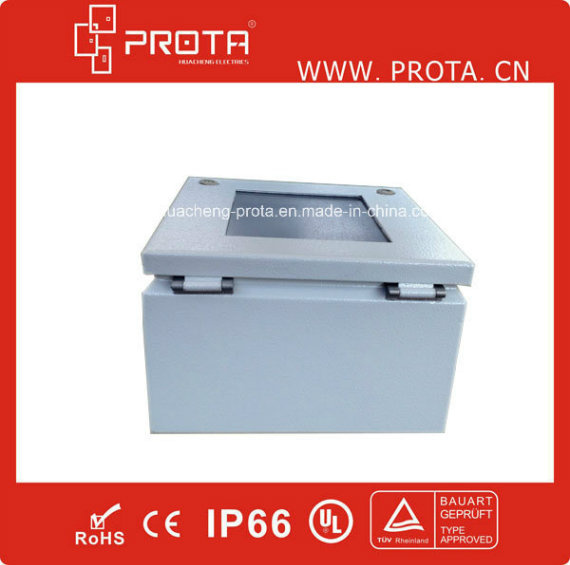

Electrical Distribution Box / Wall Mount Enclosure
Standard Configuration
Material:1.2mm cold rolling sheet steel
Surface: epoxy thermosetting powder coating, textured finish.
Color:RAL7032 & RAL7035
Protection degree:IP66
Craftsmanship
1. The lid and body are assembled by standard screws and washers, which ensures the protection grade, and the utilization and maintenance in the narrow space. The slot of the body strengthens the enclosure itself, also prevents the dust and the water when enclosures are opened.
2. The PU foam sealing gasket makes sure the IP66 protection degree of the enclosures. The grounding wire can be connected to the body and lid.
3. The two sides inside body are equipped with supporting strips with screw holes, which ensures the maximum height of boxes. Moreover, they can be installed with DIN rails and mounting plate as options.
4. Specialized plastic insulated tubes prevent the screws peeling off from the lid, also guiding the direction when fastening the screws.
5. Opening Glands on the top, bottom or 2 sides, are the options, on your request.
Selection Table
| Model No. | W
mm | H
mm | D
mm |
| PL15158 | 150 | 150 | 80 |
| PL151512 | 150 | 150 | 120 |
| PL20158 | 200 | 150 | 80 |
| PL201512 | 200 | 150 | 120 |
| PL20208 | 200 | 200 | 80 |
| PL202012 | 200 | 200 | 120 |
| PL30158 | 300 | 150 | 80 |
| PL301512 | 300 | 150 | 120 |
| PL301512-G | 300 | 150 | 120 |
| PL30208 | 300 | 200 | 80 |
| PL302012 | 310 | 220 | 130 |
| PL302012-G | 300 | 200 | 120 |
| PL303012 | 300 | 300 | 120 |
| PL303012-G | 300 | 300 | 120 |
| PL401512 | 400 | 150 | 120 |
| PL40208 | 400 | 200 | 80 |
| PL402012 | 400 | 200 | 120 |
| PL402012-G | 400 | 200 | 120 |
| PL403012 | 400 | 300 | 120 |
| PL404012 | 400 | 400 | 120 |
| PL404012-G | 400 | 400 | 120 |
| PL502012 | 500 | 200 | 120 |
| PL502012-G | 500 | 200 | 120 |
| PL503012 | 500 | 300 | 120 |
| PL503012-G | 500 | 300 | 120 |
| PL60208 | 600 | 200 | 80 |
| PL602012 | 600 | 200 | 120 |
| PL602012-G | 600 | 200 | 120 |
| PL603012 | 600 | 300 | 120 |
| PL603012-G | 600 | 300 | 120 |
| PL604012 | 600 | 400 | 120 |
| PL604012-G | 600 | 400 | 120 |
| PL802012 | 800 | 200 | 120 |
| PL802012-G | 800 | 200 | 120 |
| PL804012 | 800 | 400 | 120 |
