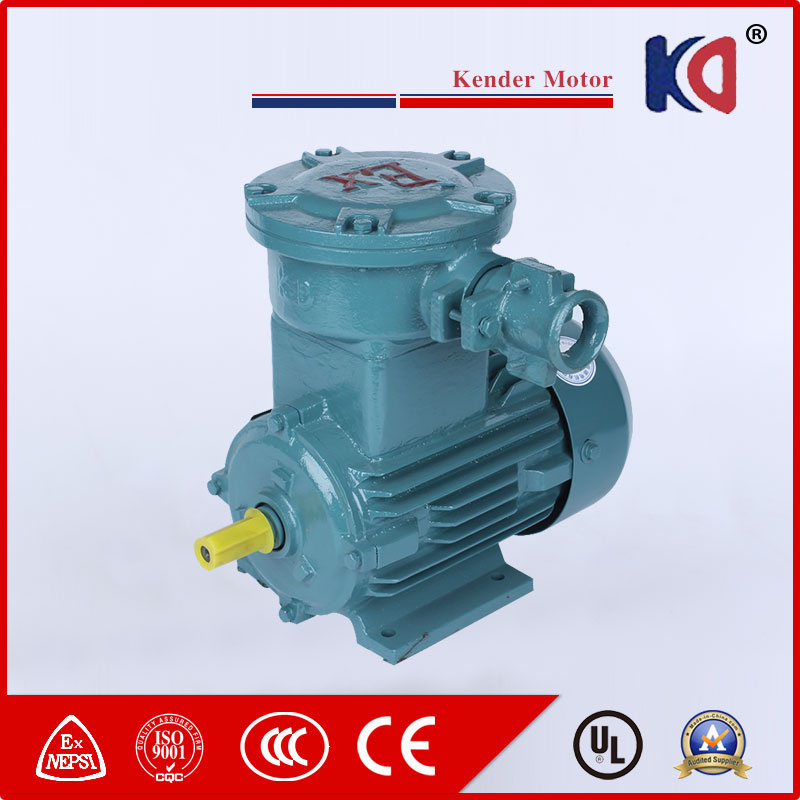

Electrical Explosion Proof Induction AC Motor 400V/415V/440V
| Price: |
US $ 55-65/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
YB3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Yb3-112m-4-4kw |
| Rate Power: |
0.75kw |
| Current: |
1.27A |
| Speed: |
890 R/Min |
| Voltage: |
380V |
| Efficiency: |
62% |
| Power Factor: |
0.70 Cosφ |
| Stall/Rated Torque: |
2.0tst/Tn |
| Stall/Rated Current: |
4.7 Ist/in |
| Noise: |
54db |
| Application: |
Power Tools |
| Operating Speed: |
Adjust Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Explosion-Proof Three-Phase |
| Rotor Structure: |
Winding Type |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Direct on-line Starting |
| Brand: |
Kender |
Product Description
Electrical Explosion Proof Induction AC Motor 400V/415V/440V
Technical parameters:
1.Frame NO:YB3-m-4
2.Rated power:0.75KW
3.Rated voltage:220V/660V/380/660V/660V/1140V or on request
4.Rated Frequency: 50 Hz / 60 Hz;
5. Poles: 2-8
6. Speed: 890r/min
7. Ambient Temperature: -15°C-35°C in coal mine and -15°C-40°C in plant
8. Model of CONEECTION: Y-Connection for under 3 KW motor while Delta-Connection for above 4
KW motor;
9. Mounting: B3; B35; B34; B14; B5; V1;
10. Current: 82A (AC);
11. Duty: continuous (S1);
12. Insulation Class: B,F,H
13. Protection Class: IP55;
14. Cooling Method: IC411;
15. Altitude: No more than 1,000 meters above sea level;
16. Packing: 63-132 frame be packaged by carton&pallets and 160-355 frame be packaged by plywood case;
17. EX-mark: Exd I, Exd II AT4, Exd II BT4.
Technical data of Electrical Explosion Proof Induction AC Motor 400V/415V/440V Model
Type | Rate power | Current | Speed | Efficiency | Power Factor | Stall/Rated
current | Stall/Rated
torque | Max/Rated
torque | Min/Rated
torque | Noise |
| | KW | In(A) | (r/min) | (%) | (cosφ) | Ist/IN | Tst/TN | | | db(A) |
| YB3-63M1-2 | 0.18 | 0.52 | 2720 | 65.0 | 0.80 | 5.5 | 2.3 | 2.2 | 1.6 | 61 |
| YB3-63M2-2 | 0.25 | 0.69 | 2720 | 68.0 | 0.81 | 5.5 |
| YB3-71M1-2 | 0.37 | 0.99 | 2760 | 69.0 | 0.81 | 6.1 | 64 |
| YB3-71M2-2 | 0.55 | 1.38 | 2760 | 74.0 | 0.82 | 6.1 | 2.3 | |
| YB3-63M1-4 | 0.12 | 0.44 | 1340 | 57.0 | 0.72 | 4.4 | 2.3 | 2.2 | 1.7 | 52 |
| YB3-63M2-4 | 0.18 | 0.59 | 1340 | 60.0 | 0.73 | 4.4 |
| YB3-71M1-4 | 0.25 | 0.78 | 1350 | 65.0 | 0.74 | 5.2 | 55 |
| YB3-71M2-4 | 0.37 | 1.08 | 1350 | 67.0 | 0.75 | 5.2 |
| YB3-71M1-6 | 0.18 | 0.67 | 880 | 56.0 | 0.66 | 4.0 | 1.9 | 2.0 | 1.5 | 52 |
| YB3-71M2-6 | 0.25 | 0.88 | 880 | 59.0 | 0.68 | 4.0 |
| YB3-80M1-6 | 0.37 | 1.27 | 890 | 62.0 | 0.70 | 4.7 | 54 |
| YB3-80M2-6 | 0.55 | 1.54 | 890 | 75.4 | 0.72 | 4.7 | 2.1 | 55 |
| YB3-80M1-8 | 0.18 | 0.86 | 650 | 51.0 | 0.61 | 3.3 | 1.8 | 1.9 | 1.3 | 52 |
| YB3-80M2-8 | 0.25 | 1.13 | 650 | 54.0 | 0.61 | 3.3 |
| YB3-90S-8 | 0.37 | 1.43 | 670 | 62.0 | 0.61 | 4.0 | 56 |
| YB3-90L-8 | 0.55 | 1.79 | 670 | 63.0 | 0.61 | 4.0 | 2.0 | |
| YB3-315S-10 | 45 | 99.4 | 592 | 91.5 | 0.75 | 6.2 | 1.5 | 2.0 | 0.8 | 82 |
Features:
Energy-saving
Stable running
Good quality
Tiny vibration
Good appearance
Reliable operation
Convenient use and maintenance
The application of Electrical Explosion Proof Induction AC Motor 400V/415V/440V
Ideal for the coal mine where methane and coal dust may be present(Ex d I) and dangerous explosion areas (Ex d IIAt4,d IIBT4) in the plant with the class IIA,IIB and temperature T1-T4 flammable gas.
The production process of explosion proof motor
• Stamping of lamination
• Rotor die-casting
• Winding and inserting - both manual and semi-automatically
• Vacuum varnishing
• Machining shaft, housing, end shields, etc…
• Rotor balancing
• Painting - both wet paint and powder coating
• Motor assembly
• Packing
• Inspecting spare parts every processing
• 100% test after each process and final test before packing
FAQ:
Q:What's the mounting size of your motor?
A:Foot mount , face mount, Flange mount ,foot cum face mount,face cum flange mount and design as customer required.
Q: Do you offer OEM service?
A: Yes.and we provide the best quality service to our customers.
Q: What is your payment term?
A: TT, western union ,Paypal. L/C,Cash.
Q: What is your lead time?
A:About 10-45 days after receiving deposit or original L/C.the balance need to accepted before shipment.
Q: What certificate do you have?
A: We have CE, ISO9001,CCC ,EX and so on.
Q:How long the warranty?
A:one year ,but except man-made destroyed.
