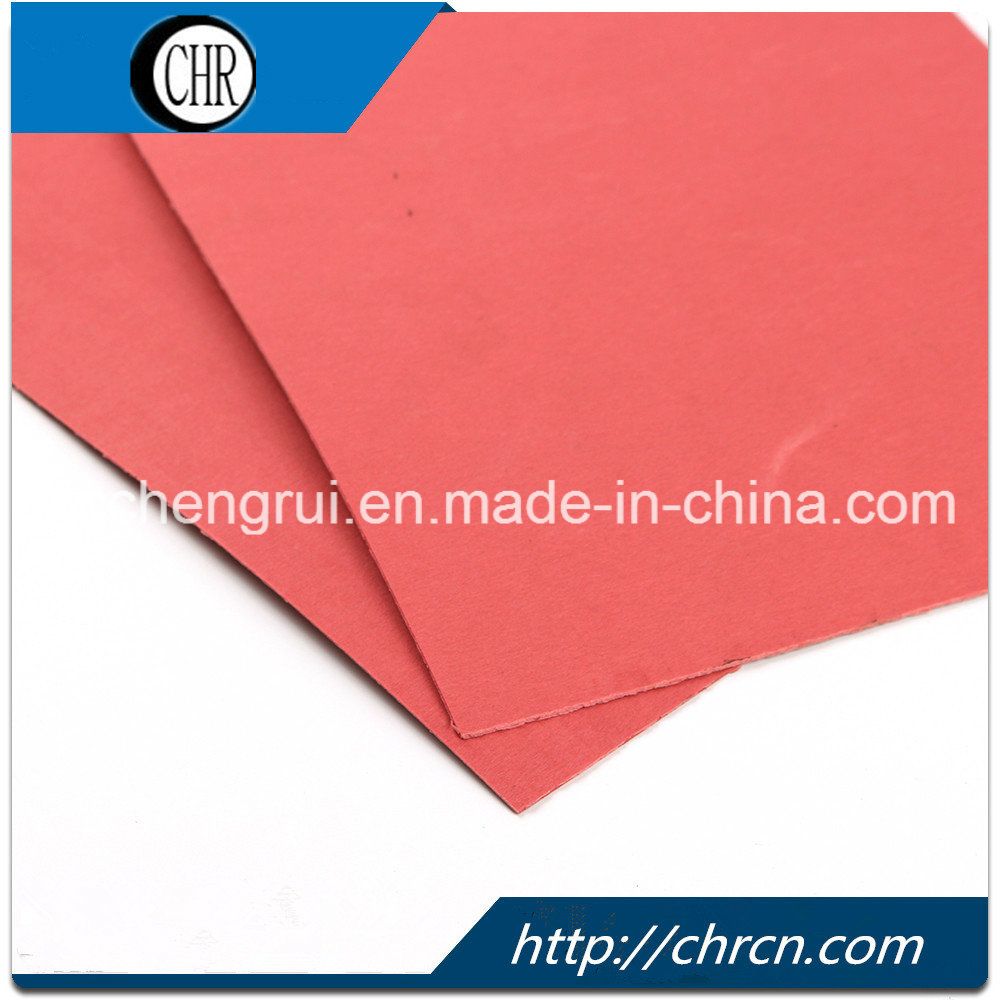

Electrical Insulation Fiber Vulcanized Fiber Paper

Name: Electrical Insulation Fiber Vulcanized Fiber Paper
Brand: all-electronics-online.com
SKU: 703593792
Availability: InStock
Rating: 4.4 (112 reviews)

Price:	US $ 3.2kg
Trade Terms:	FOB,CFR,CIF
Min Order:	1000kg
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	0.5-2.0mm
Markets:	North America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Thickness:	O.5mm,0.7mm,0.8mm,1.0mm,1.5mm,1.6mm,2.0mm
Size:	Sheets and Rolls
Width:	1.2m*1.6m
Application:	Switch Baseplate
Type:	Solid
Chemistry:	Inorganic Insulation
Material:	Paper
Thermal Rating:	B 130
Maximum Voltage:	20KV~100KV
Color:	Red
Brand:	Chr

Product Description

vulcanized paper
1. Description:   Technical grade vulcanized paper is made of fibre and its derivatives with Metal - zinc chloride solution, with excellent mechanical strength and electrical properties, resistance of solvents.

2.Specifications

1). High mechanical and tensile strength
2). Easily bendable and perforated without any cracking
3). Exceptionally light weight, about half the weight of aluminum
4). Excellent electrical properties, ideal arc resistance, tear resistance
5). Possesses the beneficial properties of metals, plastics, rubber and leather
6). Environment friendly, poses no threat to nature, easily disposable
7). Thickness: 0.8-12 mm   Width: 1200-1700 mm
8). Density: 1.0-1.45g/cm3

3.Color: red, black, gray, white, and others

Available in rolls and coils for easy automatic punching

4.Usage: It can be used for sanding discs, washers, insulating sheet, switch and appliance insulation, electric motor insulation, gaskets, automobile parts etc
Technical Data of Technical grade vulcanized paper

Items		Unit	Standard			result
Thickness		mm	0.6±0.05			0.634
Density		g/cm3	0.5mm-0.9mm 1.0mm-2.0mm 2.1mm-5.9mm ≥6.0mm		≥1.1 ≥1.15 ≥1.15 ≥1.20	1.17
Breakdown Voltage (In (23±1)°Ctemperature)		KV/mm	0.5mm-0.9mm		≥6.0	__
			1.0mm-2.0mm 2.1mm-5.0mm		≥5.0 ≥3.0
			5.1mm-12.0mm		≥2.5
Cross-section tensile strength		kN/m2	0.5mm-0.9mm	MD	≥5.5X104	MD 1.31X105 CMD 6.31X105
				CMD	≥3.5X104
			1.0mm-2.0mm	MD	≥6.0X104
				CMD	≥3.5X104
			2.1mm-3.5mm	MD	≥6.0X104
				CMD	≥4.0X104
			≥6.0mm	MD	≥5.0X104
				CMD	≥3.0X104
Elongation percentage	MD	%	_____			2.1
	CMD		_____			2.6
Volume Resistance		Ω.cm	≥108			1.9x1011
Water Absorption		%	≤65			82.5
Gluing Coefficient		N/m	≥200			231
Zinc chloride content		%	≤0.20			0.07
Moisture content		%	6-10			6.5
Ash content		%	≤2.5			0.59

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
