Electrical Insulation High Quality Crepe Paper

Name: Electrical Insulation High Quality Crepe Paper
Brand: all-electronics-online.com
SKU: 666749752
Availability: InStock
Rating: 5 (26 reviews)

Price:	US $ 2.5kg
Trade Terms:	FOB,CFR,CIF
Min Order:	500kg
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	0.05 0.08mm x20mm 25mm
Markets:	North America,Africa,Oceania,Mid East,Eastern Asia
Thickness:	0.35-0.90mm
Width:	20mm 25mm 30mm 40mm
Storage Life:	1 Year
Delivery Time:	15-20days
Application:	Switch Baseplate
Type:	Insulation Paper
Chemistry:	Inorganic Insulation
Material:	Paper
Thermal Rating:	E 120
Maximum Voltage:	<10KV
Brand:	Chr

Product Description

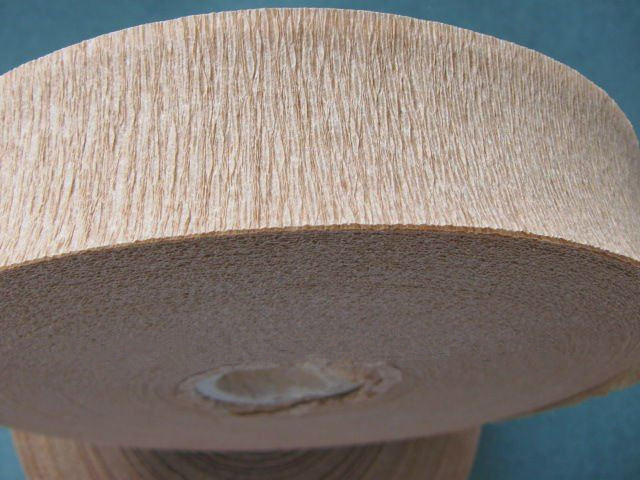

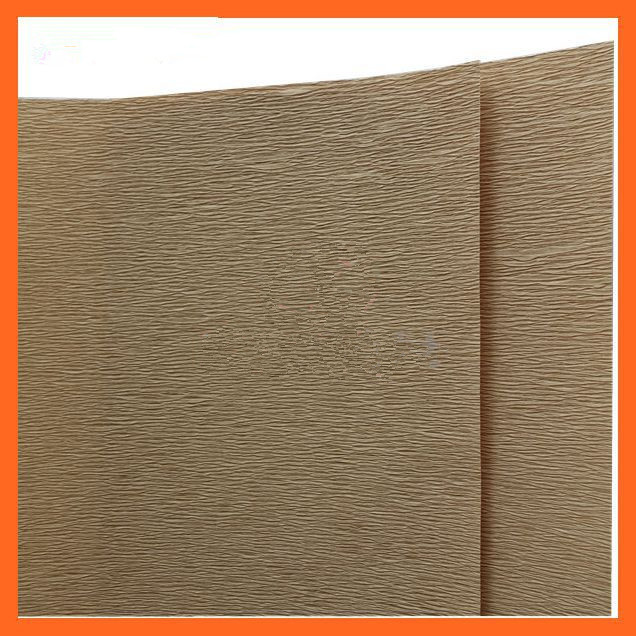

Electrical insulation crepe paper
Electrical insulation crepe paper is a kind of insulation material base on insulation paper, the best product for oil type transformer
Materil: 100% superior sulfate insulation wood pulp.
Feature: It has excellent electrical properties and influences the quality of life-span of transformer directly, the base liquid for kraft paper is dissolved in pure liquids to manufacture crepe kraft paper.
Thickness: 0.05mm 0.08mm 0.13mm
Width: 25mm-960mm color: Natural
Package: Carton and pallet

No	Item		unit	(paper thickness)
No	Item		unit	0.05mm	0.075mm	0.08mm	0.13mm
1	Thickness of crepe paper		mm	0.35±0.05	0.38±0.08	0.40-0.60	0.70-0.90
2	(ash content)		%	≤0.7	≤0.7	≤0.8	≤0.8
3	(water content)		%	≤7.0	≤7.0	≤8.0	≤8.0
4	(ether extract)		%	≤0.3	≤0.3
5	PH(water Ph)			6.0-8.0	6.0-8.0	6.0-8.0	6.0-8.0
6	(oil pollution)		%	<0.1
7	Tensile strength	(MD)	N	30	40	45	50
7	Tensile strength	TD	N	20	30	35	40
8	(crepe percentage)		%	50
9	(Breakdown voltage)		V/	≥950	≥1000	≥1000	≥1000
10	Electrical conductivity		ms/m			≤9.0	≤10
11	density		g/m²	60±10%	110±10%	110±10%	120-150

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
