Electrical Insulation Magnetic Laminated Sheet
| Price: |
US $ 7.5-9.8KG |
| Min Order: |
500KG |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
MJ-3352 |
| Size: |
According to Customer Requirement |
| Density: |
3.5g/cm3 |
| Delievery Time: |
Within 7-10 Working Days |
| Sample: |
Free |
| Thickness: |
According to Customer Requirement |
| Application: |
Generator |
| Type: |
Insulation Sheet |
| Chemistry: |
Inorganic Insulation |
| Material: |
Fiberglass |
| Thermal Rating: |
H 180 |
| Maximum Voltage: |
>100KV |
| Brand: |
Mj |

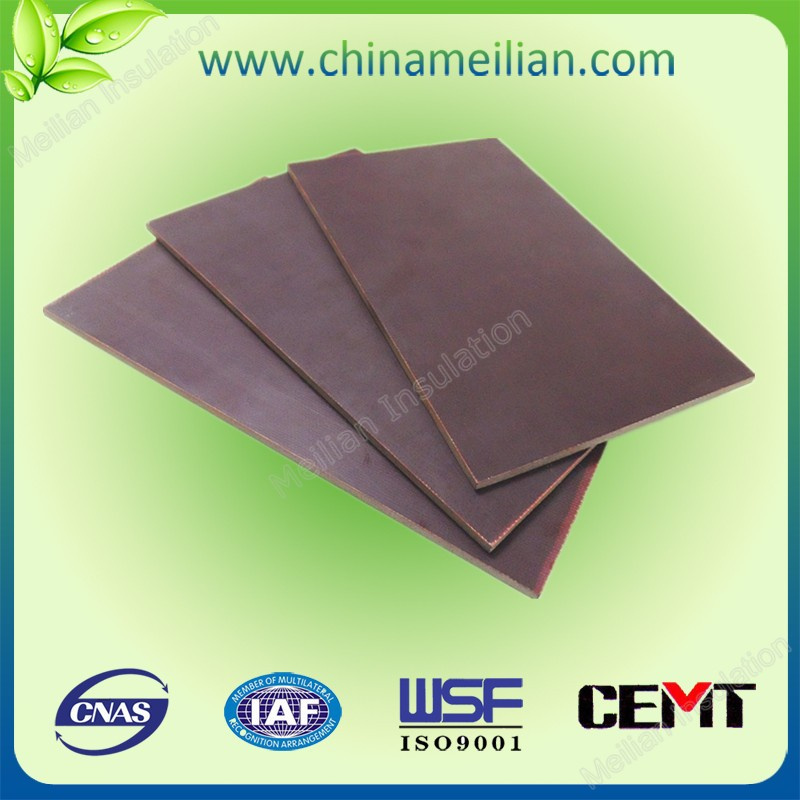

Product Description
Electrical Insulation Laminated Magnetic SheetUsually, it is always used as magnetic slot wedge for motor and generator. Magnetic slot wedges reduce slot ripple in the air gap flux caused by the changing reluctance due to the slots, and also reduce the associated eddy current losses due to the interaction of the harmonics in the air gap flux with the conducting surface of the rotor.
The magnetizing current required in the stator windings to generate the desired air gap flux is less with magnetic slot wedges, since more of the air gap flux is available for useful power production.Appearance:Natural color Brown, Light Brown, surface smoothly without bubble and impurities, no flow marks, Cutting edge without fault and separation.Application:Motors & generators
Traction motors
High-speed motors
Wind turbines Metro reactorsFearures:Good mechanical property
Heat resistance.
magnetic permeability.
Low thickness tolerance.
It is an ideal energy saving new product.| Basic information |
| Product name | Magnetic Electrical Insulation Laminted Sheet |
| Item No. | MJ-3352 |
| Brand | MJ |
| Material | Epoxy resin and Alkali free fiberglass cloth with magnetic powder |
| Grade | Grade H |
| Technical Performance |
| Density | ≥3.0g/cm 3 |
| Sheets Thickness | 0.1-6mm |
| Size | ≥480x980mm |
| Formation methods | High temperature and high pressure |
| Thermal stability in 24h | ≥220ºC |
| Water absorption | ≤1.0% |
| Impact strength | ≥40 KJ/m 2 |
| Tensile strength | ≥120 Mpa |
Flexural strength
at room temperature
at high temperature 155°C | ≥195 MPa ≥120 MPa |
| Comparative magnetic permeability 1.6KA/m (200 Oe) | ≥7.5 |
| Reference Standard | GB/T1303.1-1998 |
Packaging Detail:
Insulation laminated sheet package: Each package is not more than 100KG. Respectively, paper and plastic film cover plate, a paper packaging box, steel strapping / or according to customers' requirements.
Delivery Detail: 7-10 working days.Our Service:
FAQ:(1) Can you give me a discount price?
Answer: It is depending on the volume. The larger the volume is, the more discount you can enjoy.
(2) Why is your price a bit higher than other Chinese suppliers?
Answer: To meet the requirement of different customers and areas, our factory manufactures various kinds of quality for each item at a wide range of price. We can offer the products of different quality levels depending on customer's target price and quality requirement.
(3) How can I get a sample?
Answer: Normally small samples (sizes not larger than 300*300mm) can be sent free of charge and customers just need to bear a little shipping charge, or you can provide your DHL, FEDEX, EMS, UPS courier account number to us. For bigger sizes, it depends.
(4) How can you guarantee the quality of mass production is same with the sample sent to me before?
Answer: Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.
(5) How can you deal with quality issues that customer feedback after receiving the goods?
Answer:
1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.
3) Finally, we will negotiate with our customers to make some compensation.

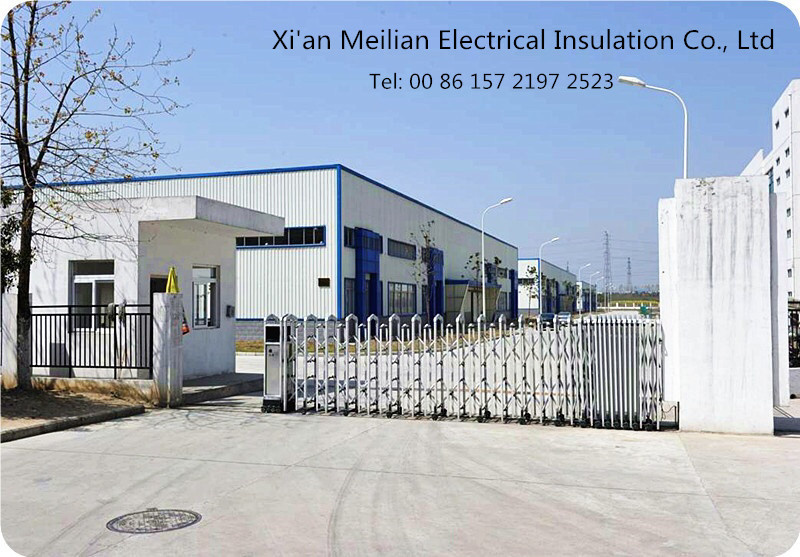

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.
We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.
Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.
We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".
The spirit of our company is: "Good Reputation, Best Products, Wonderful Services
