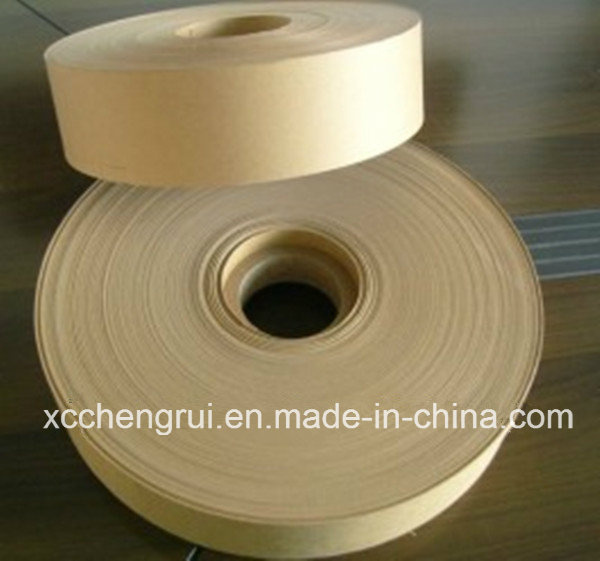

Electrical Insulation Power Cable Paper

Name: Electrical Insulation Power Cable Paper
Brand: all-electronics-online.com
SKU: 702769402
Availability: InStock
Rating: 5 (78 reviews)

Price:	US $ 1.5kg
Trade Terms:	FOB,CFR,CIF
Min Order:	1000kg
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	0.08mm, 0.13mm, 0.17mm
Markets:	South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Thickness:	0.08mm, 0.13mm, 0.17mm
Width:	625mm, 960mm, 25mm, 40mm
Rated Voltage:	Below 35 Kv
Using:	Electrical Insulation
Application:	Insulating Varnish
Type:	Insulation Paper
Chemistry:	Inorganic Insulation
Material:	Paper
Maximum Voltage:	20KV~100KV
Thermal Rating:	Below 35
Color:	Grey
Brand:	Chr

Product Description

Description:

Insulation cable paper for motor winding insulation
All paper with 100% unbleached sulphate pulp copied into, the outermost layer of the cable to protect the conductive core insulation seal, not to moisture intrusion, do not let the destruction of the insulating layer, paper tough, Leveling. A higher tensile. For high-voltage power cables, control cables and signal cables with an insulating paper. It packs in the outermost layer of the cable to protect the conductive core insulation seal, not to moisture intrusion, do not let the destruction of the insulating layer. For the web.
Features
?This paper is highly refined and cleaned to ensure uniform thickness and free from formation Pinholes, un-dispersed fiber bundles and tiny defects
?It is a low-voltage grade insulating paper well suited for making electromagnetic wires, power cables of
transformers below 35kV and other electrical insulating equipments below 35kV
?This paper has stable electrical and chemical properties, and high physical strength to meet the exacting

needs of our valued customers

Cable paper Features and Applications:
--For power cables.communication cables, telephone cables and other electric appliances.

No.	Properties		Unit	Power Cable Paper			Communication Cable Paper			Telephone Cable Paper

1	Thickness		μm	80±5	130±7	170±8	100±6	120±7	170±8	50+4/-2	75+6/-3
2	Density		g/cm3	0.8±0.05			0.7~0.9			0.8
3	Tensile Strength≥	MD	Kn/cm	6.2	11.0	13.7	6.85	9.65	13.7	4.3	5.2
		CD		3.05	5.15	6.85	3.45	4.85	6.85	1.65	2.1
4	Elongation≥	MD	%	1.7	1.8	1.7	2.0	2.2	2.2	1.6	1.6
		CD		5.4	5.7	5.4	6.0	6.5	6.5	3.6	3.5
5	Tear Strength≥	M.N		510	1020	1390	650	930	1390
6	Breakdown voltage at power frequency≥		V/layer	600	950	1200
7	PH Value of Aqueous Extract			6.0-8.0			6.8-8.5
8	Ash Content≤		%	1.0			1.0			0.8
9	Moisture Content		%	6.0-9.0			6.0-9.0			5.0-8.0

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
