| Prod Model: |
JTSM |
| Model: |
Jtsm Plastic Distribution Box |
| Ways: |
1p,2p, 4p,6p,8p,12p,18p,24p,36p |
| Material: |
ABS, ABS Fireproof, PC |
| Waterproof: |
IP30,IP55 |
| Mounted: |
Open Mounted, or Conceal Mounted |
| Color: |
Grey/White |
| Packing: |
by Carton Box |
| Type: |
Lighting |
| Structure: |
Protection |
| Certification: |
Ce, SGS |
| Form: |
Open Mounted, or Conceal Mounted |
| Size: |
1p,2p, 4p,6p,8p,12p,18p,24p,36p |
| Application Range: |
Home, Power Plant, Many Places |
| Shell Material: |
ABS, PC(Plastic) |
| Brand: |
Joymell |
Product Description

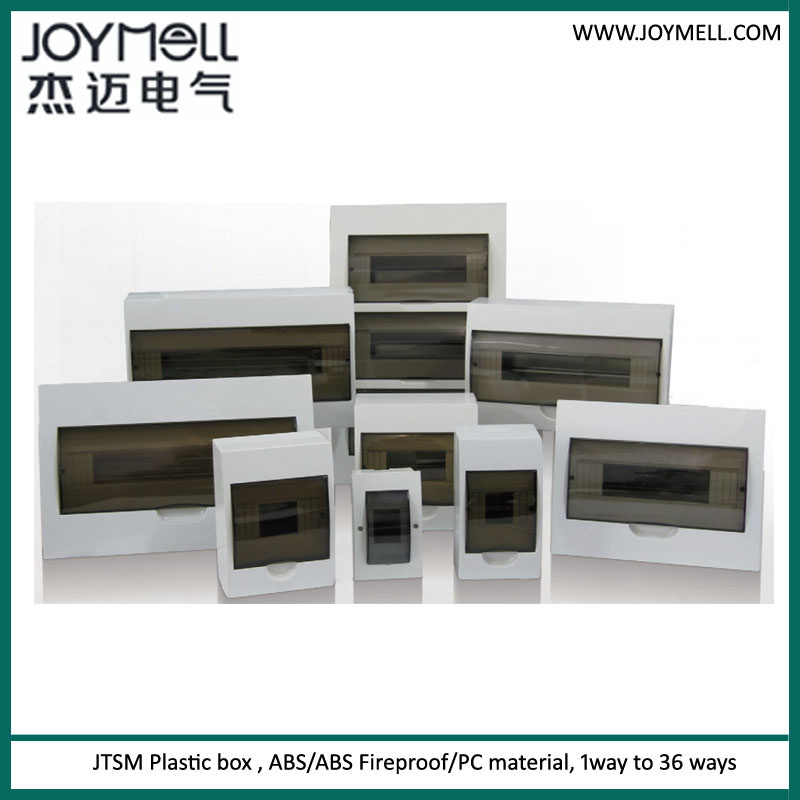

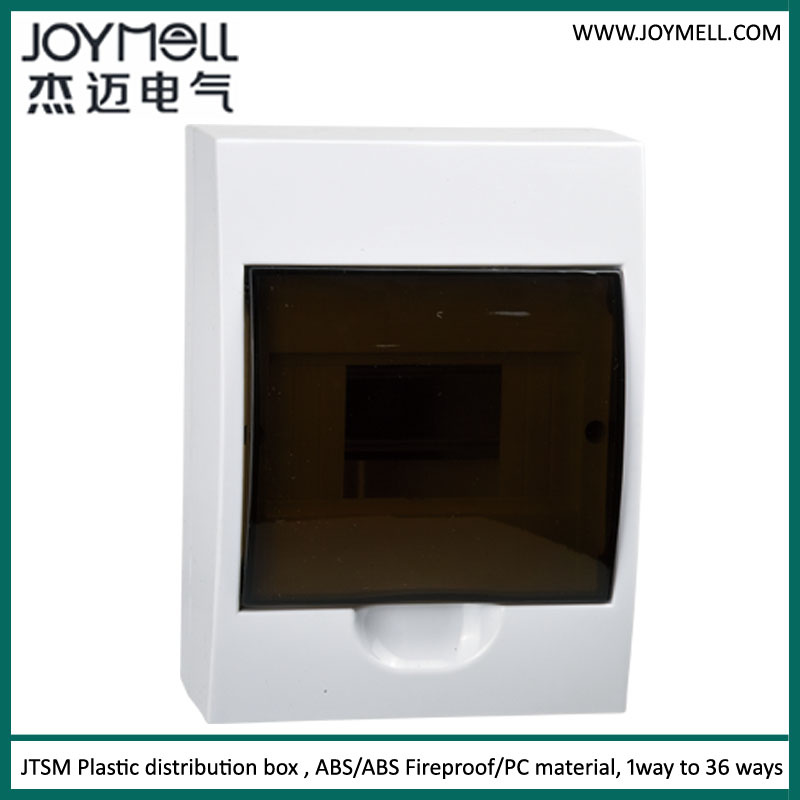

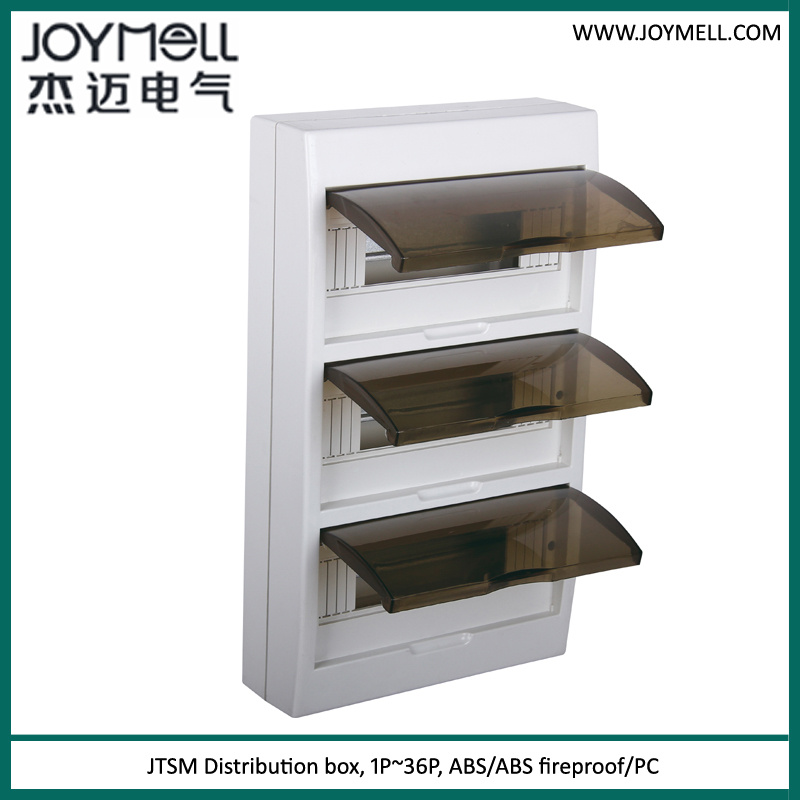

Electrical Open mounted Concealed mounted Plastic Distribution box from 1way to 36ways1. Application:Overall panel design is luxury and attractive.the face covering colors are dark Green and brown (provided according to the color needs of the different interior residential designs except for the standard colors). The design of the face covering gives a noble and elegant feeling. Pure Ivory.high strength.never change color,transparent material is PC. Fixed frame.simple structure.and easy Installation.
2. Parameter:Shell protection grade: IP30).
Shell material: ABS polymeric carbon.
Color: White.
Face covering Transparent.

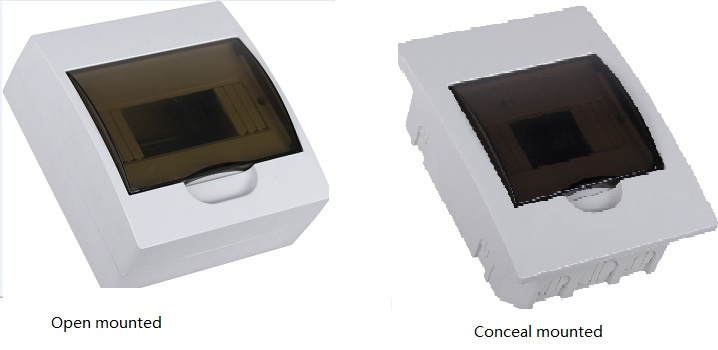

3. Sizes:| | Conceal mounted | Open mounted |
| Model | L(mm) | W(mm) | D(mm) | L(mm) | W(mm) | D(mm) |
| JTSM-2Ways | 94 | 146 | 85 | 94 | 146 | 85 |
| JTSM-4Ways | 135 | 222 | 85 | 112 | 200 | 94 |
| JTSM-6Ways | 171 | 222 | 85 | 146 | 200 | 94 |
| JTSM-8Ways | 207 | 222 | 85 | 184 | 200 | 94 |
| JTSM-10Ways | 244 | 222 | 85 | 222 | 200 | 94 |
| JTSM-12Ways | 280 | 222 | 85 | 256 | 200 | 94 |
| JTSM-15Ways | 334 | 222 | 85 | 312 | 200 | 94 |
| JTSM-18Ways | 399 | 251 | 92 | 363 | 220 | 94 |
| JTSM-24Ways | 300 | 344 | 98 | 270 | 325 | 94 |
| JTSM-36Ways | 300 | 481 | 98 | 270 | 458 | 94 |

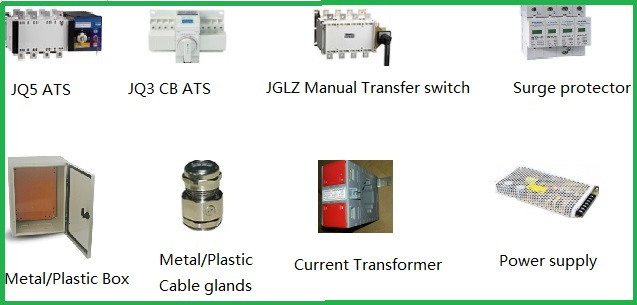

4. Pictures:5. Other our product series:| Manual transfer switch | 1A~1600A, 3P/4P. |
| Automatic Transfer switch | 1A~3200A, 2P/3P/4P. |
| Metal power distribution box | Metal box, size can color can be customized. |
| Plstic box | Different ways, competitive price, welcome to contact |
| Surge protector | B,C,D Class, AC, DC type you can choose. Different types and
discharge current you choose. |
| Power supply | Hot used in Gepenerator system, 120W 12/24V. And other types |
| Current transformer | Different size you can choose, quality guarantee,
hot used in Generator cabinets. |
| Push button | Metal or plastic, different types for power cabinet. |
