Name: Electrical Power Cable
Brand: all-electronics-online.com
SKU: 755291565
Availability: InStock
Rating: 4.5 (104 reviews)

Price:	US $ 0.1-10/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DW03
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	Silicone Rubber
Certification:	RoHS
Brand:	Dewei

Product Description

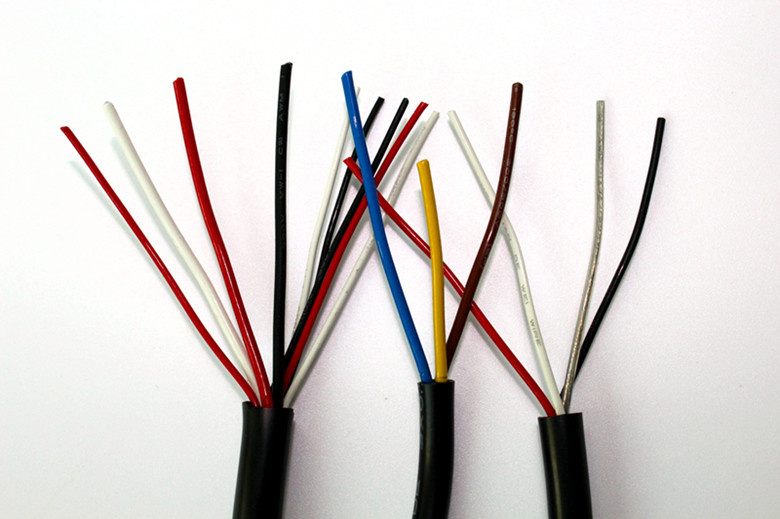

Electrical power Cable

Nominal Voltage: 600V
Temperature Range: -60º C to 150º C
Conductor: Tinned, Nickeled, siliver plated, gold plated copper, bare copper
Testing Voltage: 2000V
Insulator: Silicone rubber
O. D. Tolerance: ± 0.20mm
Color: Black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow. Ect
Con. Of conductor.: 483/0.06
Diameter: 1.47MM
Thickness of insulator: 1.05MM
Over diameter: 3.57MM
Packing: 305M/COIL
<

AWG	con.of conductor.	Diameter	Thickness of insulator	over diameter	Packing
	NO/mm	mm	mm	mm	mt/coils
26#	42/0.06	0.45	1.05	2.55	305
24#	80/0.06	0.58	1.05	2.68	305
22#	120/0.06	0.72	1.05	2.82	305
20#	195/0.06	0.92	1.05	3.02	305
18#	294/0.06	1.19	1.05	3.29	305
16#	483/0.06	1.47	1.05	3.57	305
14#	707/0.06	1.85	1.05	3.95	305
12#	1062/0.06	2.29	1.10	4.50	305
10#	1780/0.06	2.95	1.50	5.96	305

DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.

Besides, we set up a wire processing workshop to provide customers with well processed wire group and wire harness of the batteries, the brushes, electric adjustment, steering gear, all kinds of JST, AMP connector, T-type plugs, banana plugs etc,

We set up and implement quality management system strictly according to international standard ISO9000, and had been awarded the certification of AMT ISO 9001: 2008 in 2009.

Our philosophy is quality-oriented, continuous innovative, reputation first and to treat our clients sincerely. In the meantime we persist in providing our customers with competitive high-quality products, creating a belief that quality decides the survival of the company.

Welcome to visit and give advice, let' S work together and create brilliant future.
