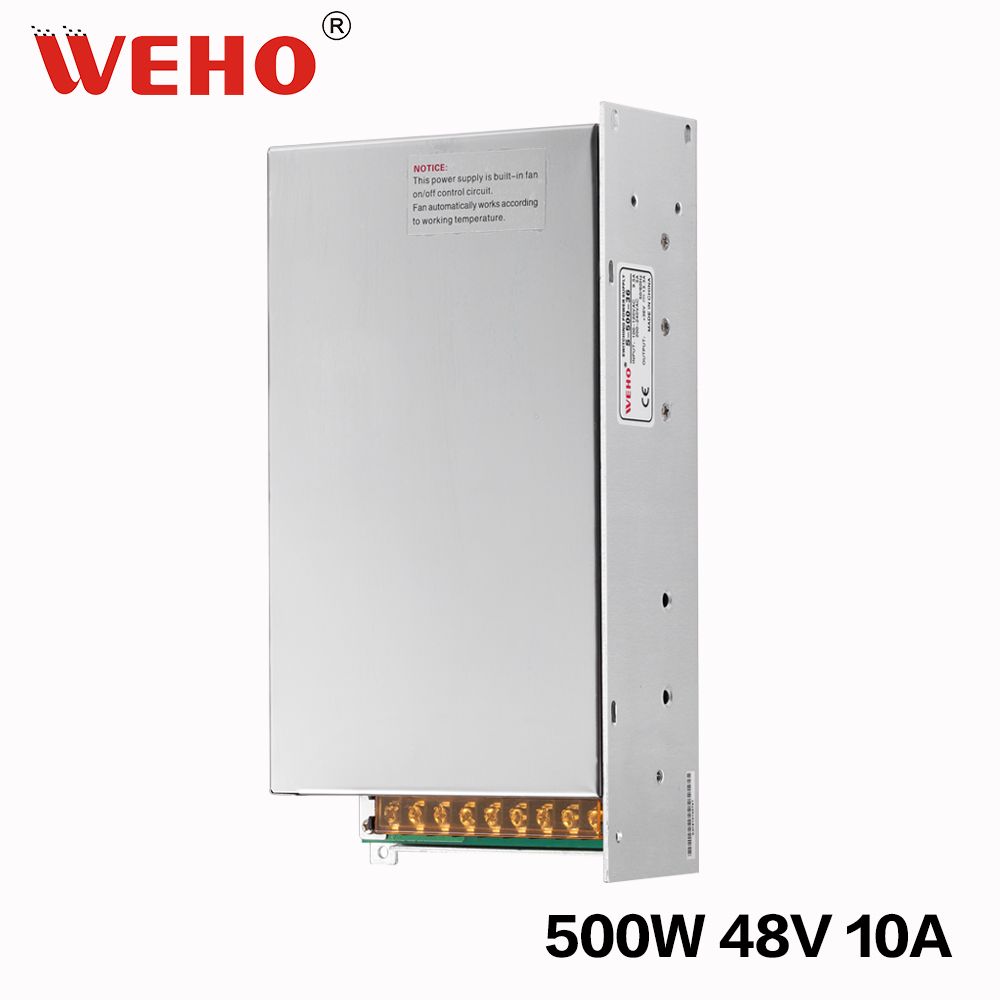

Electrical Single Output AC /DC 500W 48V Power Supply

Name: Electrical Single Output AC /DC 500W 48V Power Supply
Brand: all-electronics-online.com
SKU: 832195785
Availability: InStock
Rating: 4.3 (132 reviews)

Price:	US $ 30-38/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-500-48
Output Current:	10A
Type:	Constant Voltage
Test:	100% Full Load Burn-in Test
Material:	Aluminum Case
Output Frenquency:	47~63Hz
Weight:	1.35kg
MOQ:	1-5PCS
Output Type:	Single
Warranty:	2 Years
Output Power:	401 - 500W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Input Voltage:	110V/220V
Brand:	Weho

Product Description

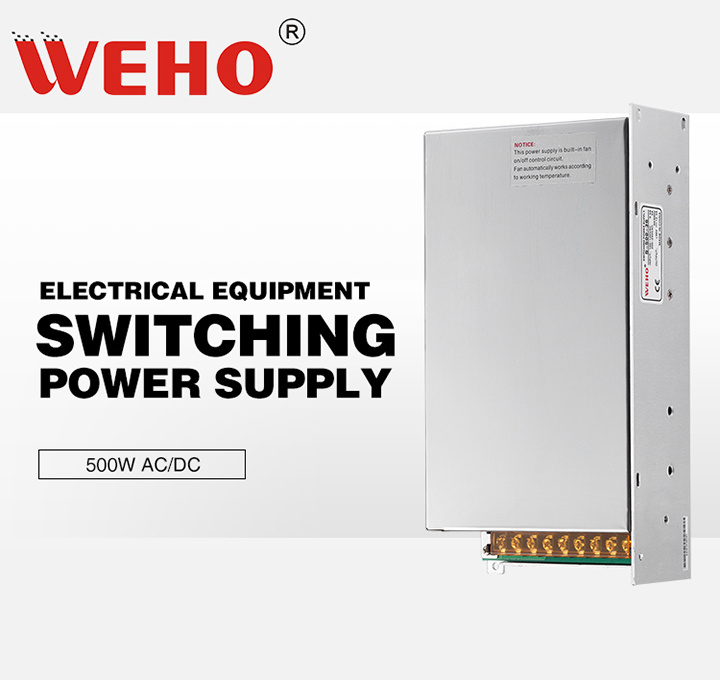

500W 48V DC Switching Power Supply

Features:

1. AC input range selectable by switch

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 24 months warranty

Specifications:

MODEL	S-500-12	S-500-13.5	S-500-15	S-500-24	S-500-27	S-500-48
OUTPUT	12V	13.5V	15V	24V	27V	48V
	40A	36A	32A	20A	18A	10A
	0 ~ 40A	0 ~ 36A	0 ~ 32A	0 ~ 20A	0 ~ 18A	0 ~ 10A
	480W	486W	480W	480W	486W	480W
	240mVp-p	240mVp-p	240mVp-p	240mVp-p	200mVp-p	300mVp-p
	10 ~ 13.2V	12 ~ 15V	13.5 ~ 18V	20 ~ 26.4V	26 ~ 32V	41 ~ 56V
	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%	±1.0%
	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
	200ms, 50ms, 20ms at full load
INPUT	180 ~ 264VAC (110VAC input can be custom-made)
	47 ~ 63Hz
	84%	84%	84%	86.00%	87.00%	88%
	7A/115V 3.5A/230V
	18A/115V 36A/230V
	105 ~ 135% of rate load
PROTECTION	Protection type : Fold back current limiting, recovers automatically after fault condition is removed
	10 ~ 13.2V	12 ~ 15V	13.5 ~ 18V	20 ~ 26.4V	26 ~ 32V	41 ~ 56V
	Protection type : Hiccup mode, recovers automatically after fault condition is removed.
	RTH1 or RTH250ºC FAN ON,45ºC FAN, 70ºC output shut down
ENVIRONMENT	-10 ~ +60ºC, 20 ~ 90% RH non-condensing
	20 ~ 90% RH non-condensing
	-20 ~ +85ºC, 10 ~ 95% RH
	±0.03%/ºC (0 ~ 50ºC)
	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC	Design refer to UL1950, TUV EN60950-1
	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
	Compliance to EN55022 (CISPR22) Class B
	Compliance to EN61000-3-2,-3
	Compliance to EN61000-4-2,3,4,5,6,8,11;ENV50204,Light industry level,criteria A
OTHERS	138.6K hrs min. MIL-HDBK-217F (25ºC)
	24012565mm (LWH)
	1.35Kgs/pcs, 12pcs/17.7Kgs/0.0326CMB

Our Workshop:

Packaging:

FAQ:

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
