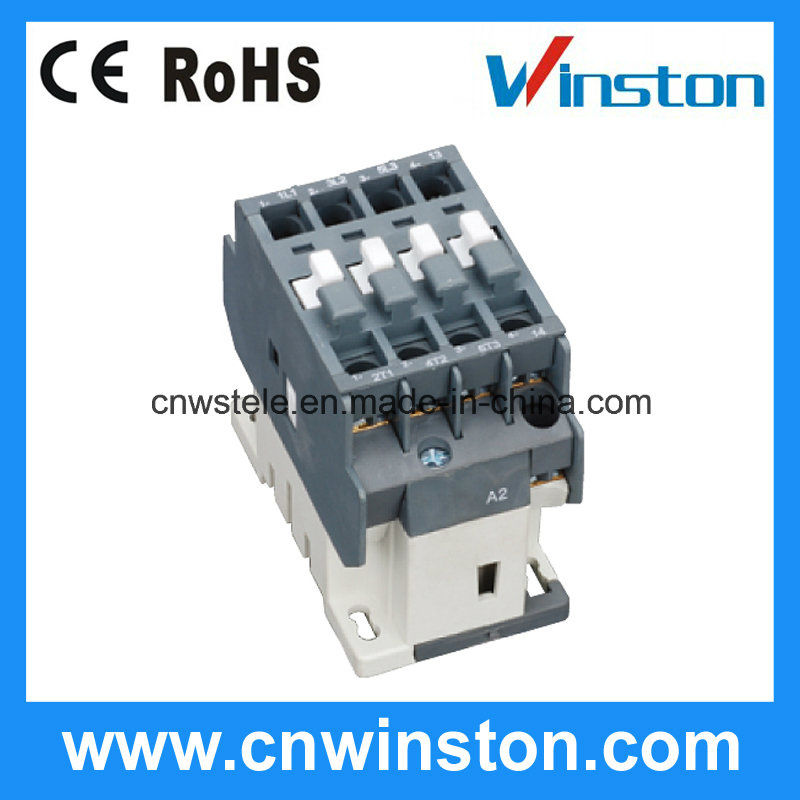

Electrical Single Phase/Three Phase AC Contactor (CJX7)

Electrical Single Phase/Three Phase AC Contactor (CJX7)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: CJX7
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Protective Characteristics: Sealed relay
Load: High Power Relay
Size: Miniature
Usage: Household Appliances Relay, Communication Relay, Lathe Relay
Theory: Magnetic Contactor

Product Description

1. Application

CJX7-9~300 AC contactor(hereafter refer to as contactor)is mainly used in power system with AC 50Hz(or 60Hz), therated working voltage up to 660V, under the application category of AC-3, when the rated working voltage 380V, the rated operating current to 300A electrical, for the long-distance range making and breaking the electric circuit, and combines the electorm agnetism starter with the suitable thermal overload relay or the electronic protector to protect against the possible overload electric circuit during operation(running).

2. Technical parameter

2.1 The allowable application category of main circuit and the auxiliary circuit of the contactor and it's code see Table 1

Table 1 application category of main circuit and the auxiliary circuit of the contactor and it's code

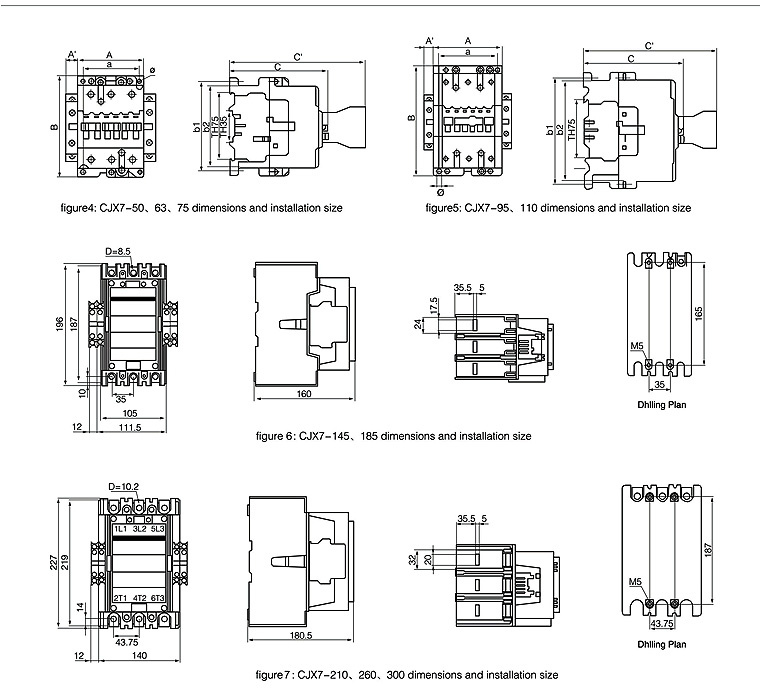

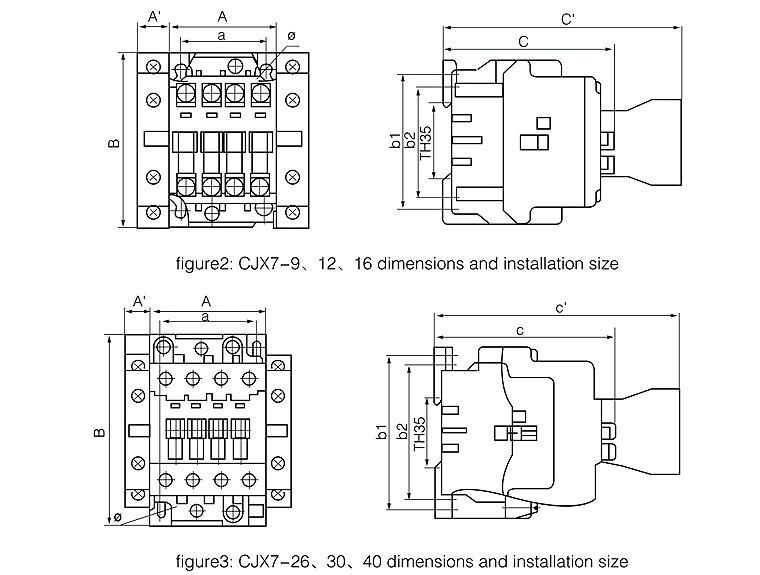

3.Installation


Type Frame code Rated insulation Convensional free air heat AC-3 rated operating current Ie A     AC-3 control the max. power KW of generator
    voltage Ui V current Ith 220V 380V 660V 220V 380V 660V
CJX7-9 16 1000 26 9 9 7 2.2 4 5.5
CJX7-12 28 12 12 9 3 5.5 6.5
CJX7-16 30 17 17 10 4 7.5 9
CJX7-26 26 45 26 26 17 6.5 11 15
CJX7-30 40 65 32 32 21 9 15 18.5
CJX7-40 65 37 37 25 11 8.5 22
CJX7-50 75 100 50 50 35 15 22 30
CJX7-63 125 65 65 43 18.5 30 37
CJX7-75 125 75 75 46 22 37 40
CJX7-95 110 145 96 96 65 25 45 55
CJX7-110 160 110 110 82 30 55 75
CJX7-145 185 250 145 145 120 40 75 100
CJX7-185 275 185 185 170 50 90 120
CJX7-210 300 350 210 210 210 60 110 150
CJX7-260 400 260 260 260 78 140 190
CJX7-300 450 300 300 280 88 160 220
