Electrical Testing Equipment Current Transformer

Name: Electrical Testing Equipment Current Transformer
Brand: all-electronics-online.com
SKU: 672659331
Availability: InStock
Rating: 4.5 (25 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q150
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Q150:	Clamp-on Ct
Operating Temperature:	-20~55
Measuring Current Range:	0~3000A
Dimensions:	229mm364mm44mm
Weight:	600g

Product Description

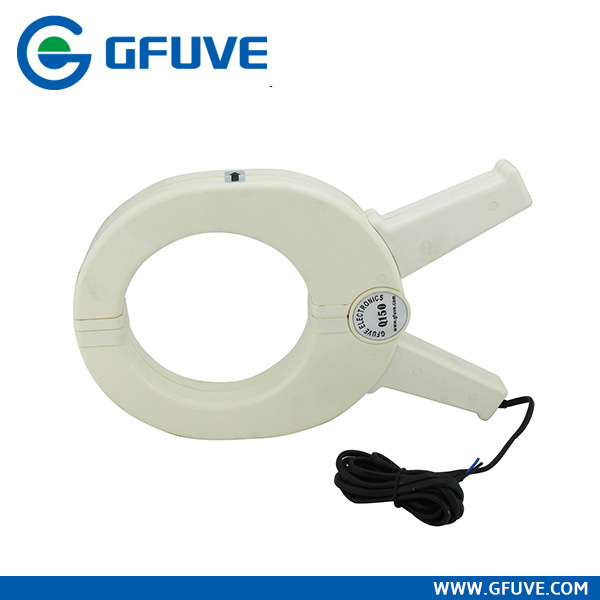

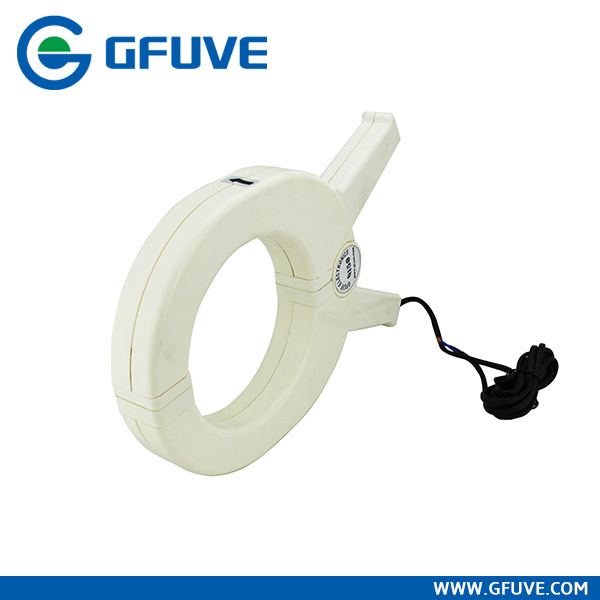

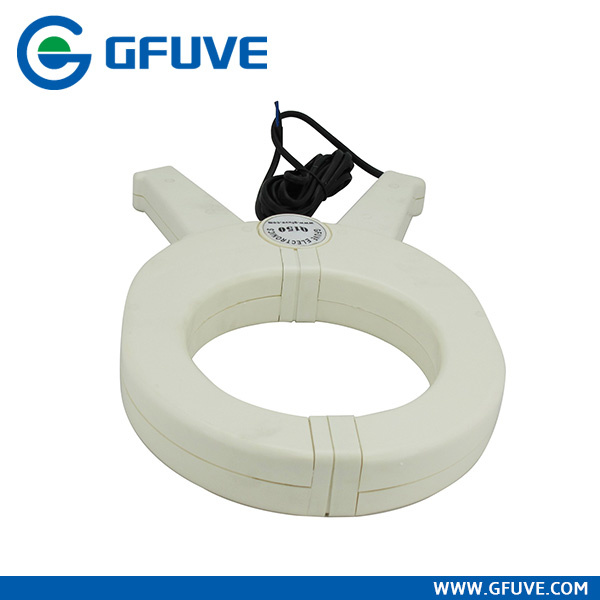

Characteristic and application of Electrical testing equipment current transformer Q150 Clamp on Ct Clamp on Current Transformer (Q150), fast delivery and favorable price, with excellent working performance

Clamp-on CT can be used in large current situation, also can cooperate to cable fault
Tester and cable identification device, used for cable test work.

But holding wire diameter: Φ 150mm

Dimension: 229mm× 364mm× 44mm
(View outline drawing)

With load capacity: Ma OUTPUT ≤ 4Ω ,

1A OUTPUT 0.1Ω , 5A OUTPUT 2.5VA

Installation: Clamp type

Output mode: Lead output

Primary current	Secondary current	Precision
1000A	200mA	Class 0.2%
1000A ~ 3000A	500mA	Class 0.2%
1000A ~ 3000A	1A	Class 0.1%, 0.2%
1000A ~ 3000A	5A	Class 0.2%, 0.5%
Cable fault tester special	4000:1

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
