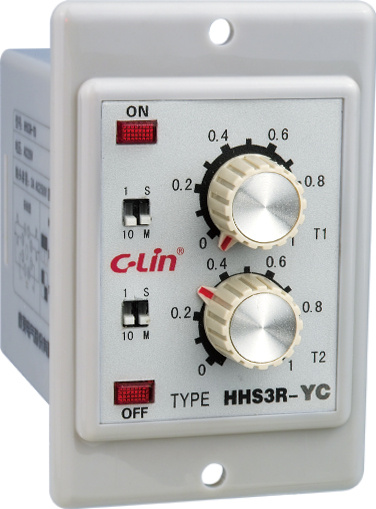

Electrical Time Relay (HHS3R-Y)

Name: Electrical Time Relay (HHS3R-Y)
Brand: all-electronics-online.com
SKU: 694717895
Availability: InStock
Rating: 4.3 (72 reviews)

Price:	US $ 8.17-16.33/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HHS3R-Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Power:	DC24V; AC24V; 220V; 380V
Repetitive Error:	Less Than or Equal to 1%
Working Mode:	Cycling-Delay Time
Contact Form:	2 Groups Time Delay Contact
Contact Capacity:	3A AC220V(Resistance)
Dimension:	865792mm

Product Description

Timer Relay/Electrical Time Relay/Timers/Relay

HHS Series Time Relays are used as the delay component in the control circuit with 50/60Hz alternating current, 380V or below 380V rated voltage or 24V direct voltage. HHS Series Time Relays are not only characterized by the high time-delay precision and wide time delay range, but also possess two display modes: Increasing progressively display mode and decreasing progressively display mode. There are six working modes such as on-delay, off-delay, cycling-delay, star-delta starting-delay, release-delay working modes and so on. HHS Series Time Relays with a complete range of products and novel appearance, are widely used in the control circuit of industrial automation.

Mode	HHS3R-Y Electrical Time Relay/Timer Relay/Timers/Relay
Working Power	DC24V; AC24V; 220V; 380V
Time-delay Range	YA: 1s/10s/1m/10m
	YB: 3s/30s/3m/30m
	YC: 6s/60s/6m/60m
	YD: 1m/10m/1h/10h
	YE: 3m/30m/3h/30h
Repetitive Error	Less than or equal to 1%
Working Mode	Cycling-delay time
Contact Form	2C time delay contact
Contact Capacity	3A AC220V(Resistance)
Dimension	875893mm
Mounting Dimension	6153mm 75.5-24.5(diameter)mm
Mounting Mode	Panel mounting

Xinling Electrical Co., Ltd. China was established in 1990. Now we have 10 sub-branch companies, each company is responsible for manufacturing different kinds of electrical products, We have more than 100 cooperation units, and 100 direct distributors, 1000, 000 square meter factory area and 1600 stuffs.

Our company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, AC contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, it strengthens the management of enterprise and promotes product quality. Our company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling is ready for creating a magnificent tomorrow together with you!
