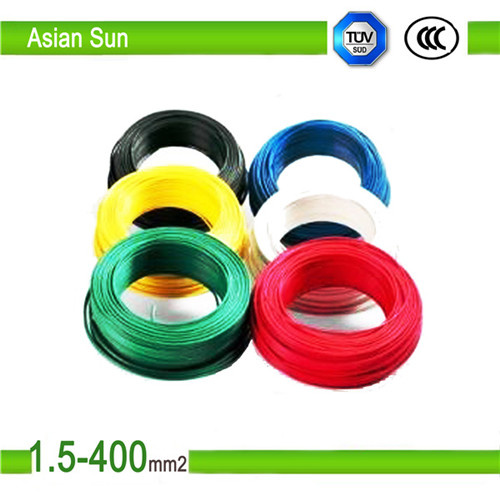

Electrical Wire Tinned Copper PVC Insulated Cable Wire

Electrical Wire Tinned Copper PVC Insulated Cable Wire
Price: US $ 0.2-1/Meter
Min Order: 2000/Meter
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: DY-THW-E44
Standards: IEC, ASTM, DIN.BS
Rated Voltage: 300/500V 450/750V
Size: 1-400mm2
Color: Yelow, Red, Blue, Green or Requirement
Type: Insulated
Conductor Type: Solid
Application: Underground
Conductor Material: Copper
Insulation Material: PVC
Certification: RoHS
Range Of Application: Overhead
Brand: Asian Sun

Product Description

Product Description

Electrical Wire Tinned Copper PVC insulated Cable Wire Type THW is a single conductor ground wire suitable for non-grounded multiconductor cables. Compatible with twisted, heavy-duty,jacketed, or parallel cables. These wires are manufactured to UL standard Type THW. The solid bare copper conductor is insulated with a moisture-resistant, polyvinyl chloride (PVC) insulation .
1.For installation in conduits and other raceways
2.Oil and grease resistant insulation
3.Abrasion and crush resistant
4.THW insulation is flame retardant PVC and meets the UL VW-1 flame test
5.Maximum continuous conductor temperature: 75°C Dry, 75°C Wet

Electrical Wire Tinned Copper PVC insulated Cable Wire

AWG or kcmil
Strand
       Nominal Insulation
      Thichness Inch/mm
         Nominal Overall
       Diameter Inch/mm
           Cable Weight
    Lbs/kft                kg/km
14
1
0.030
0.76
0.169
4.3
22
33
12
1
0.030
0.76
0.189
4.8
32
47
10
1
0.030
0.76
0.213
5.4
46
68
8
1
0.045
1.14
0.240
6.1
67
100
14
7
0.030
0.76
0.177
7
101
151
12
7
0.030
0.76
0.201
4.5
24
36
10
7
0.030
0.76
0.228
5.1
34
50
8
7
0.045
1.14
0.291
5.8
49
73
6
7
0.060
1.52
0.335
7.4
79
118
4
7
0.060
1.52
0.386
8.5
117
174
2
7
0.080
2.03
0.445
9.8
172
256
1
19
0.080
2.03
0.531
11.3
263
391
1/0
19
0.080
2.03
0.575
13.5
339
505
2/0
19
0.080
2.03
0.622
14.6
418
622
3/0
19
0.080
2.03
0.677
15.8
515
767
4/0
37
0.080
2.03
0.740
17.2
638
950
250
37
0.095
2.41
0.823
18.8
792
1179
300
37
0.095
2.41
0.882
20.9
943
1404
350
37
0.095
2.41
0.937
22.4
1118
1664
400
37
0.095
2.41
0.984
23.8
1292
1923
500
61
0.095
2.41
1.079
25
1465
2180
600
61
0.110
2.79
1.197
27.4
1810
2694
 Electrical Wire Tinned Copper PVC insulated Cable Wire
1. Conductor
Electrolytic copper, class 5 (flexible), based on EN60228 / IEC 60228 and BS 6360.
2. Insulation

Flexible PVC, extra sliding, high service temperature type TI3 according to UNE 21031/HD 21 and Class 43 UL 1581.

Factory Information


Electrical Wire Tinned Copper PVC insulated Cable Wire

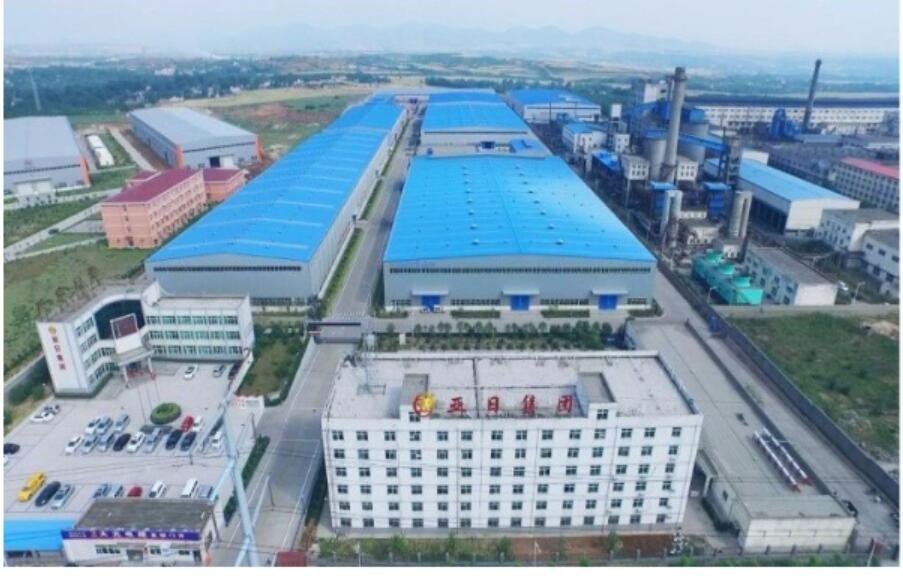

Luoyang Asian Sun Industrial Group Co., Ltd. was established in 2006 with RMB 50 million registerde capital in Luoyang, Henan Province, China. Now our total assets is RMB 300 million. The company covers an area 61,081 square meters, and has 4 affiliates with more than 300 employees including 15 engineers and technicians.

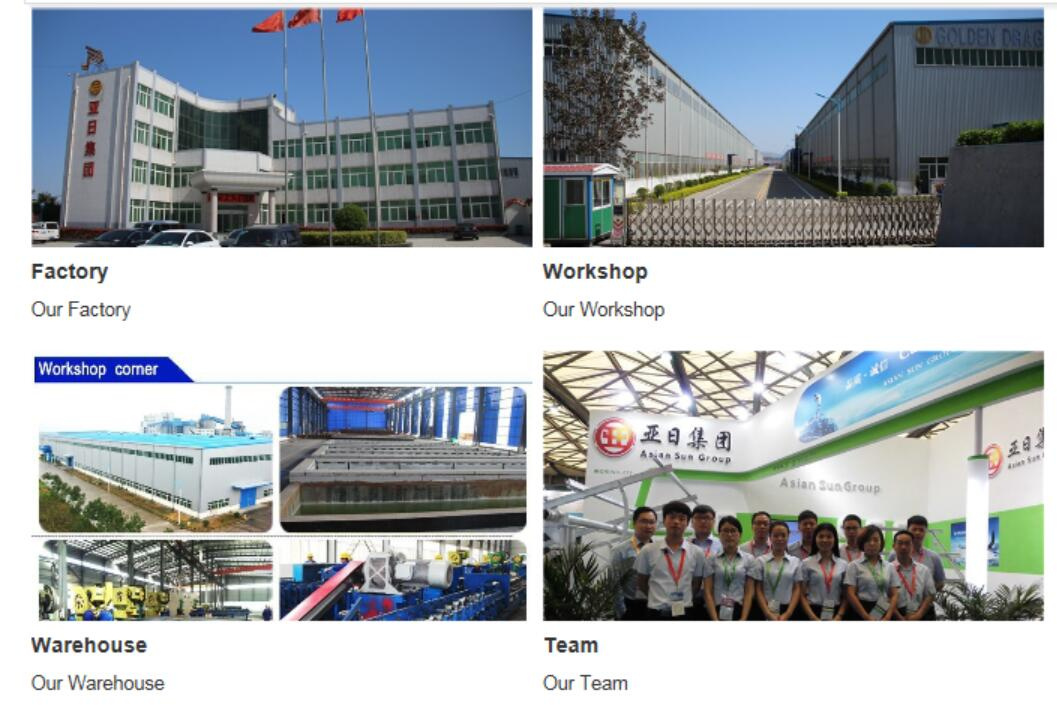

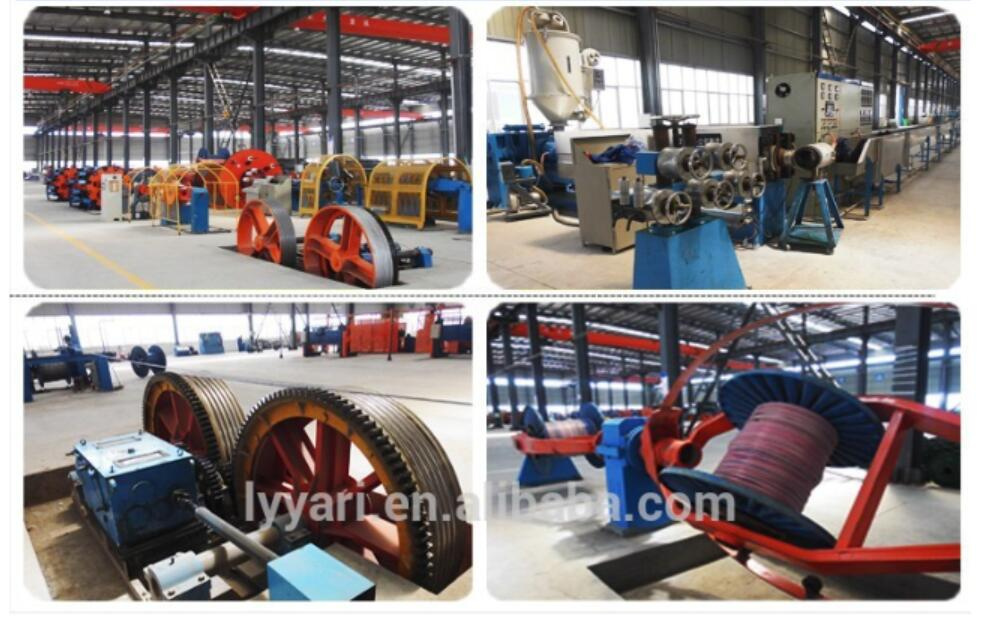

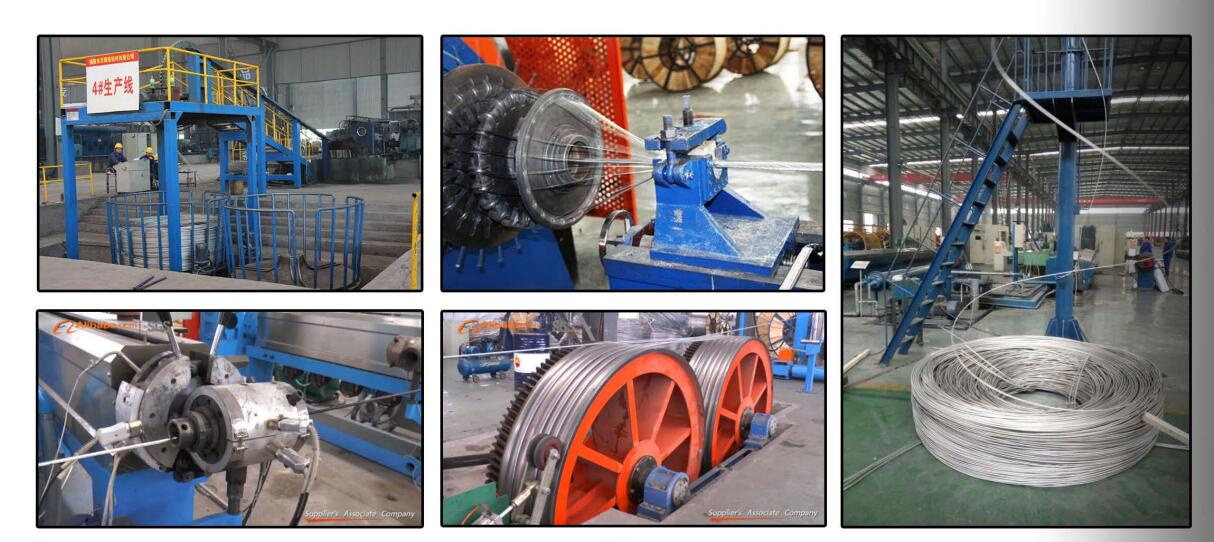

Our factory and work shop :



Customer Visit :

Our Service
* 7*24 hours online services and after sale service

* Prompt quotation for your inquiry.

*More than 10 years experiences incable field.

*Professional cable manufacturer, with good quality and competitive price.
Packing and delivery :


Contact With Us

Ms.Bella




Started in year 2006, Luoyang Asian Sun Group - formerly known as 'Luoyang YaRi'- was a small factory with only tens of employees back then, but after years of growing and developing, now we are a group company with 5 branch companies, with more than 800 employees including 100 engineers and technicians, and with registered capital 410 million RMB. Our factories are located in county Yichuan, Luoyang, Henan, China, and our headquarters are in the beautiful historic city Luoyang. Totally we have 20, 000 square meters area for production and management, with fixed assets valuing 960 million RMB.

Our main products are power transformer, ABC cable, ACSR, AAC, Aluminum rod, PV bracket, screw pile, power cable, and aluminum bar etc. We also carry on projects of engineering, electrical installation and other general contracting. Our research, production and management are strictly in accordance with the ISO9001 quality system, ISO14001 environment system, OHSAS18001 occupational health and safety management system, the EU TUV, etc. The quality assurance is carried out in every aspect of design, material selecting, production, testing, inspection and management.

At home, we have reached strategic cooperation agreements with State Grid Corporation of China, GD Solar Co., Ltd., Huaneng China, Datang Corporation, China Power Investment Energy Conservation and Environmental Protection Group, and other large state-owned enterprises. At abroad, our products have been exporting to Russia, Middle East Asia, European Union, South America, Africa and other parts of the world.

Our continuing growth and success have been the direct result of the excellent word-of-mouth we consistently earn from both our new and established clients. Thinking of others' benefit and win-win cooperation is the core idea of our company culture. Perfection is not easy to achieve, but we chase it and we can catch excellence. Our excellence is the glamour which brings the good quality and service into every clients.

We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
