| Prod Model: |
electrical wire |
| Product Name: |
Flexible Electrical Wires Cooper Conductor PVC Ins |
| Voltage: |
300/300V 300/500V 450/750V |
| Insulation Color: |
Red, Black, Yellow, Blue, Green, Grey and So on |
| Standard: |
IEC, UL, BS, VDE, AS/NZS or According to You. |
| Conductor Class: |
Calss 1, Class2, Class 5, Class6 |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
House and Building |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
BV SGS |
| Sheath Material: |
No |
| Brand: |
Rmjt |
Product Description

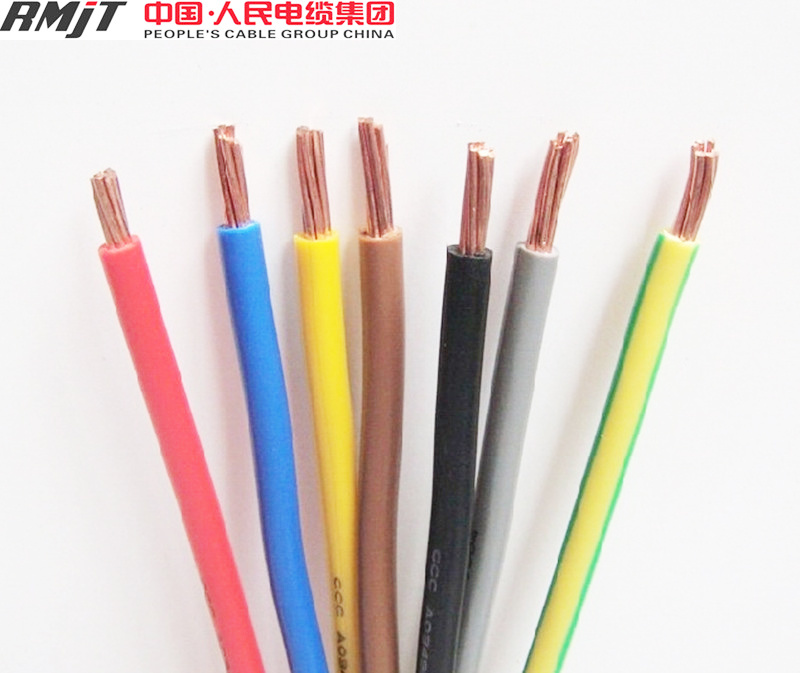

electrical wire wholesale with all electrical wire sizes
1.Application
Electrical cable is suitable for laying at the fixed places. It is widely used in connecting of power device, lighting, daily electrical appliance, instrument etc. with AC rated voltage up to and including 450/750V(U0/U).
2.Standard
The product implement the standards GB/T5023, equivalent to IEC60227. And it can also be made complying with ASTM, DIN, BS standards etc. In addition, we can design and manufacture the products as the requirements of customers.
3.Brief construction
1) Conductor: Copper or aluminium, Solid/strand
2) Insulation: PVC
3) Number of cores: Single core or multicore
4) Other special characteristics: Design and manufacture according to the requirements of customers.
4. Service performance
1) Rated voltage: 450/750V,300/500V
2) Long-term working temperature: not be higher than 70°C
3) When laying the cable, the ambient temperature should not lower than 0°C
4) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm; Bending radius≥6D as cable overall diameter>25mm.
5.Specification and technical data
| Type | Name |
| 227 IEC 01 (BV) | Single-core non-sheathed cable with solid conductor for general purposes |
| 227 IEC 02 (RV) | Single-core non-sheathed cable with flexible conductor for general purposes |
| 227 IEC 05 (BV) | Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 70oC |
| 227 IEC 06 (RV) | Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 70oC |
| 227 IEC 07 (BV-90) | Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 90oC |
| 227 IEC 08 (RV-90) | Single-core non- sheathed cable with flexible conductor for internal wiring for a conductor temperature of 90oC |
| 227 IEC 10 (BVV) | Light PVC sheathed cable |
| 227 IEC 42 (RVB) | Flat non-sheathed flexible cable |
| 227 IEC 52 (RVV) | Light PVC sheathed flexible cable |
| 227 IEC 53 (RVV) | Ordinary PVC sheathed flexible cable |
| 227 IEC 74 (RVVYP) | Oil-proof PVC sheathed, screened flexible cable |
| 227 IEC 75 (RVVY) | Oil-proof PVC sheathed, non screened flexible cable |
Package
Packing in plastic reel, paper reel ,wooden drum or as customer's requirement.
