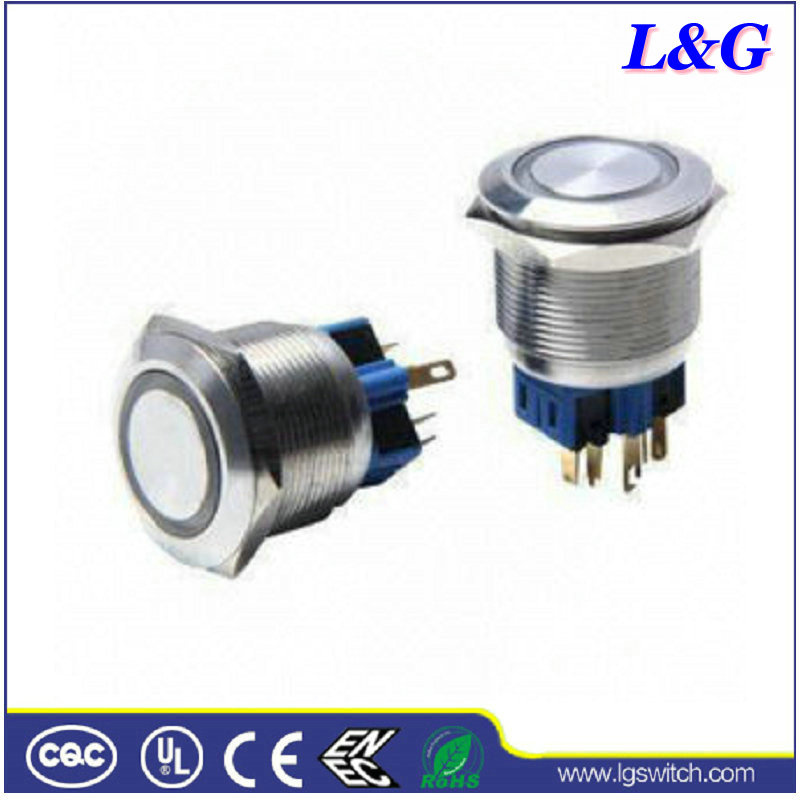

Electrical16mm Stainless Steel Reset Push Button Switch

Name: Electrical16mm Stainless Steel Reset Push Button Switch
Brand: all-electronics-online.com
SKU: 703175782
Availability: InStock
Rating: 4.3 (34 reviews)

Price:	US $ 0.1-0.3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PBS16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Max. Current:	4A
Max. Voltage:	250V
Endurance:	10, 000 Cycles
Install Diameter:	19mm Hole Cutout
Terminal:	Screw Terminal
Protection Level:	IP65
Type:	Normal Open
Usage:	Check Button
Kind:	Single-pole on-off Switch
Brand:	L&G

Product Description

Rated current: 5A
Rated voltage: 250V DC
Contact configuration: 1NO, 1NC
Operating types: momentary or latching
Crust material: stainless steel
Front shape: flat round
Terminal type: pin terminal 2.8 x 0.5mm
Switching: Za (double-break fast-motion changeovercontact)
Maximum switch rating:
ITH: 5A
UI: 250V AC
Contact resistance: d50©
Insulation resistance: e1,000M©
Dielectric intensity: 2,000V AC
Operating temperature: -20 to 55°C
Mechanical lifespan: 1,000,000 cycles
Electrical lifespan: 50,000 cycles

Specifications

Mounting hole	12mm,16mm,19mm. pls choose
Material	Stainless Steel
Operation Type	Momentary
Contact Configuration	1NO
Pin Number	2
IP Degree	IP65
The Front Shape	Round
Terminal Type	Screw Type
Contact Resistance	≤50MΩ
Insulating Resistance	>=1000MΩ
Dielectric Strength	2000VAC
Operating Temp	-20°c_+55°c
Mechanical Life	1 000 000cycles
Electric Life	50 000cycles
LED Life	40 000hours
Panel Thickness	1-10mm
Torque	5-14Nm
Operating Pressure	3-5N
Operating Distance	About 3.1mm
Contact	Silver Alloy
Base	PBT
ROHS	YES

What's Included
100% brand new
1 x Momentary Metal Push Switch (12mm, 16mm or 19mm)

Sample:

1. Free charge sample: Could provide(less than 10 PCS),freight collect

2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.

3. Samples payment term: T/T, PAYPAL, Western union

Quality Guarantee:

1.Strictly quality control before leave factory

2. Quality guarantee within one year

Advantage:

1.Low MOQ: 50~100PCS

2.New design Accepted: As your requirement

3.Good Service: Customer as God

4.Good Quality: Strict quality control and good reputation

5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)

Order Guide:

1. Inquiry-Professional quotation.

2. Confirm the price, lead time, packing requirement, payment term etc.

3. OMTER sales send the Proforma Invoice with OMTER seal.

4. Customer make the payment and send us Bank receipt.

5. Will inform client that we have got the payment, arrange the production & inform the estimated time.

6. After delivery will inform the tracking number and check the status for clients.

7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .

LATCH PIN: 301 STAINLESS STEEL, NICKEL PLATED

Dongguan Guanjun Electronic Technology Co., Ltd. Was established Taiwan in 1993. The factory in China mainland was established in 2007 and the HongKong office L&G ELECTRONICS Co., Ltd Was established in 2014. We turned into a manufacturer engaged in the R&D, manufacture and trading company of switches, Thermal protector, potentiometer and jacks.

Its leading products include switch products like Motor Thermal protector, power switch, rocker switch, trigger switch, micro switch, toggle switch, key switch and rotary switch, potentiometer etc.; And the jack/socket products like AC/DC jack, AV terminals, S-terminal and USB head and socket, etc.

The products are widely used for lighting decoration, toys, cold and hot fans, dust cleaner, vibrator, peripheral computer device and various video and audio products, electronic appliances, electronics, instrument and medical equipment.

After the development for a dozen of years, the company has turned into a corporate with powerful technology forces, self-contained production and testing equipment and complete quality assurance system; All operating procedures comply strictly with ISO9001 and ISO14000 Standards.

" It is our objective to innovate with science and technology, keep improving and launch sound services, We expecting the manufacturers and people from all walks of life for mutual refulgence.
