| Prod Model: |
BM180 |
| Rated Voltage: |
11kv |
| Hardness: |
80±5 Shorea |
| Longation: |
3% |
| Tensile Strength: |
60kg/Cm2 |
| Thermal Conductivity: |
0.8~2.8W/M-K |
| Continuous Use Temperature: |
-60~200 |
| Breakdown Voltage: |
2-5kv |
| Thickness: |
0.16~0.8mm |
| Application: |
Electrical Winding Insulation |
| Type: |
Insulation Sheet |
| Chemistry: |
Organic Insulation |
| Material: |
Rubber |
| Thermal Rating: |
250 250 |
| Maximum Voltage: |
<10KV |
| Color: |
Grey |
| Brand: |
Jrft |
Product Description

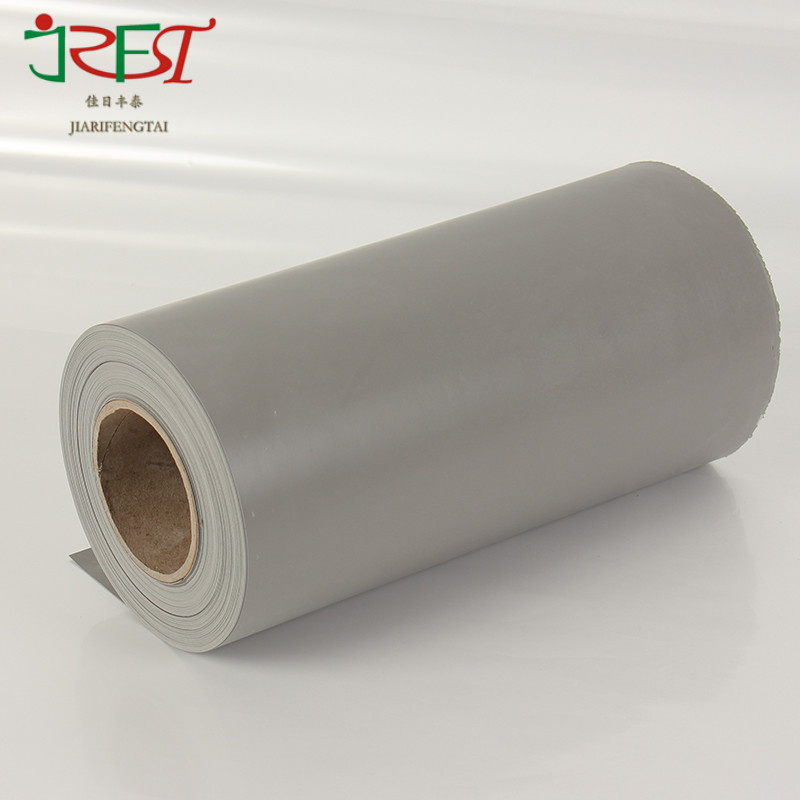

Electrically Insulation Thermal Conductive Silicone Insulator Sheet
Product Introduction
Thermal Insulation Silicone Cloth is glass fiber as reinforcement of silicone elastomeric material and high molecular polymer, also known as thermal silicone cloth, anti tearing silicone. the silica gel cloth can effectively reduce the thermal resistance between the electronic component and the radiator. It has good characteristic of electrical insulation, high dielectric strength, good thermal conductivity, high resistance chemical properties, in addition, It can withstand problem of short circuit of high voltage and metal piercing , and is an excellent thermal conductive insulation material to instead of the traditional mica and silicone grease.
Advantages
1. Dielectric strength high,
2. Good thermal conductivity,
3. Good toughness, tear resistance,
4. Surface soft, no viscosity on surface ,
5. High voltage insulation performance,
6. Strong withstand voltage, wear resistance,
7. Thin thickness, suitable for insulation and thermal power device.
Data Sheet :
| Test Project | Numerical | Test Standard |
| Test Item | Product | Test Method |
| Model NO. | BM180 | --- |
| Thickness(mm) | 0.18 | ASTM D 347 |
| Color | Pink/Grey | Visual |
| Thickness Tolerance(mm) | 0.006±0.001 | ASTM D 347 |
| Continuous Use Temp. | -60~200 | TGA+DMA |
| Thermal Conductivity(W/m.k) | 1.5 | ASTM D 5470 |
| Volume Resistivity(Ω-cm) | 10∧17↑ | ASTM D 257 |
| Dielectric Breakdown Voltage | 4KV↑ | ASTM D 149 |
| Hardness(ShoreA) | 65±5 | ASTM D 2240 |
| Specific Gravity | 2.0 | ASTM D 792 |
| Tensile Strength(kg/cm2) | 50 | ASTM D 412 |
| Elongation(%) | 2.0 | ASTM D 412 |
| RoHS(6) | Check out | IEC 62321 |
| Halogen(4) | Check out | EN 14582 |
| REACH(15) | Check out | EN14372EPA3502 |
| Flame Rating | V---0 | UL94 |
| Construction | Silicone/Fiberglass | --- |
Application:
1. Military, aviation ;
2. Large power source ;
3. Heating power device;
4. Automobile electronic heating module ;
5. Motor control, communication equipment;
6. Power semiconductor, IS MOS tube IGBT chip;
7. High voltage, high temperature, high power welding machine etc.
Specifications:
Sheet, die-cutting, roll, with adhesive and without adhesive.
Basic size
0.23mm*300mm*50m
0.3mm*300mm*50m
0.45mm*300mm*50m other different thickness can be customized
According to customer requirements can be processed into sheets of different shapes, we also can undertake gum processing to meet the customer demand.
