| Prod Model: |
TSD5 7-9ways |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shape: |
Surface Type or Flush Type Available |
| Type: |
Distribution Metering Box |
| Structure: |
Open Frame |
| Certification: |
CE |
| Size: |
2-32ways |
| Application Range: |
Power Distribution |
| Shell Material: |
Plastic |
| Brand: |
Tosunlux |

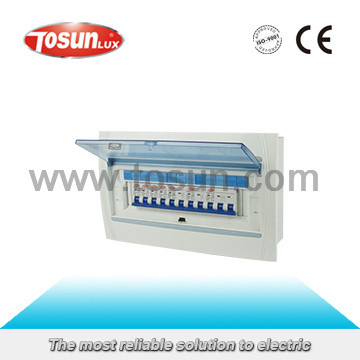

Product Description
PRODUCT DESCRIPTION:
1. TSD5 Distribution Board owns independently an identifier printed clearly for indicating breaker control circuits, with a mild and beautiful appearance.
2. TSD5 Distribution Board employs a hinge structure with self-locking localization when opened. The opening mode by pressing is used, and the face shield can be opened only by slightly pressing.
3. The support plate of the rail is movable, and the support plate of the rail can be hung on the external connecting wire of a hidden box.
4. The support plate of the rail is provided with an oval hole, by which the top cover of the power distribution box can be adjusted to be horizontal.
5. The height of the power distribution box can be adjusted automatically at the installation depth within a certain range from the exterior wall.
6. The power distribution box installed openly is provided with a trunking hole for outgoing wires.
SPECIFICATION:
1. Easy to identify: Fashion design, unique blue mark or transparent mark can be insert at will, indicating the switches direction.
2. Easy to open: Just by gentle push, can easily open the cover.
3. Convenient installation: When install the Circuit breaker, can put the din rail support panel hung outside the flush boxes, not limit to the narrow space, make the installation more easy.
Model | L | W | H |
| TSD5 2-4WAYS | 137 | 161 | 82 |
| TSD5 4-6WAYS | 208 | 208 | 95 |
| TSD5 7-9WAYS | 261 | 208 | 95 |
| TSD5 10-13WAYS | 334 | 208 | 95 |
| TSD5 14-16WAYS | 390 | 208 | 95 |
| TSD5 20-26WAYS | 334 | 416 | 95 |
| TSD5 28-32WAYS | 390 | 416 | 95 |
Why us?
1. We have extensive experience in low tension electric items and illumination products. We have been dealing the line for more than 21 years.
2. The prices of our products are very reasonable because our network of raw material supply, spare parts and goods. And our factory is efficient, covering an area of 13,000 m².
4. Our group of professional inspectors supervising the quality for your every order. Our products have obtained TUV, SEMKO, CE, CB, and ROHS certificates.
5. We have particular designers in charge of packing.
6. We have experienced salesmen to handle business for you specially.
About us
nearly 20 years
| 1. More than 23 years' experience. We have extensive experience in low tension electric items illuminaiton products. |
| 2. Reasonable price. Good network of raw material supply, spare parts and goods and efficient factory covering an area of 13,000 m². |
| 3. Reliable quality. We have professional inspectors supervising the quality during the production. Our products have obtained TUV, SEMKO, CE, CB and RoHS certificates. |
| 4. Favorable service. We have experienced salesmen to handle business for you specially. |
| 5. Attractive packing. We have particular designers in charge of packing material in a unique style. |

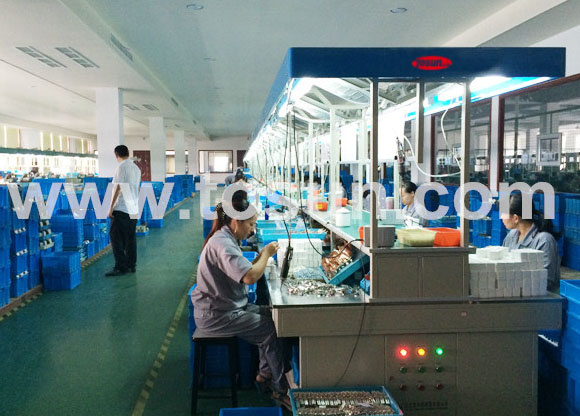

OUR PRODUCING LINE
