Electronic 1p+N 40A RCBO RCCB with Overcurrent Protection

Name: Electronic 1p+N 40A RCBO RCCB with Overcurrent Protection
Brand: all-electronics-online.com
SKU: 791850625
Availability: InStock
Rating: 4.8 (118 reviews)

Price:	US $ 6.8-7.7/Piece
Min Order:	60/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	EKL3-40
Protection Degree:	IP20
Mechanical Life:	2000
Electrical Life:	2000
Export Market:	Global
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	SGS TUV RoHS
Poles Number:	1p+N

Product Description

Electronic 1P+N 40A RCBO RCCB with Overcurrent Protection

Product Description

Product Description of rcbo
Technical Data of rcbo
RCBO Electrical Features
Type (wave form of the earth leakage sensed): AC, A
Thermo-magnetic release characteristic: B, C
Rated current In: 6, 10, 16, 20, 25, 32, 40A
Poles: 1P+N
RCBO Rated voltage Ue: 230/240V
Rated sensitivity In: 0.01, 0.03, 0.1, 0.3A
Rated residual making and breaking capacity Im: 500A
RCBO Rated short-circuit capacity lcn: 4, 500/6, 000A
Break time under In: ≤ 0.1s
RCBO Rated frequency: 50/60Hz
Rated impulse withstand voltage (1.2/50)Uimp: 4000V
Dielectric TEST voltage at ind. Freq. For 1min: 2kV
Insulation voltage Ui: 300V
Pollution degree: 2
Mechanical Features OF RCBO
Electrical life: 2, 000
Mechanical life: 2, 000
Contact position indicator: Yes
Protection degree: IP20
RCBO Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C
RCBO Installation
Terminal connection type: Cable/Pin-type busbar
Terminal size top/bottom for cable: 16mm2 18-5AWG
RCBO Terminal size top/bottom for busbar: 16mm2 18-5AWG
Tightening torque 2.0 N*m 11In-Ibs.
RCBO Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
RCBO Connection: From top

Items	Protection degree	Rated Current	Electrical Life	Mechanical Life
EKL3-40	IP20	6/10/20/32/40A	2000	2000
EKL3-40	IP20	6/10/20/32/40A	2000	2000
EKL3-40	IP20	6/10/20/32/40A	2000	2000
EKL3-40	IP20	6/10/20/32/40A	2000	2000

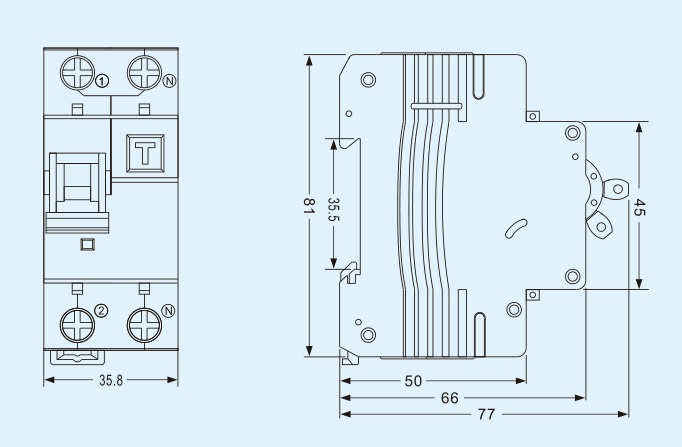

Dimensions (mm)

Our Services

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After-service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 18 months warranty after goods arrive.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With All Technical Support From Engineer Team.

Warranty:
1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!
Company Profile:
Changan Group Co., Ltd,Establised in 1987,Comprising more than 62 factories with over 2500 employees and the whole corporaion occupies 82000m2 ground during past 30years.we manufacture and export varieties of low voltage electrical appliance including all kinds of Circuit Breaker,Contactor,Relay,Switch,Solar Inverter etc..
1. We already get the certificate of ISO9001, CE, SGS.CB for most of our products.
2. We have 30 years of manufacture and 20 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia,Turkey,Europe,south america,Mid-east and Africa Market.
Electronic Type with Overcurrent Protection Circuit Breaker RCBO

Electronic Type with Overcurrent Protection Circuit Breaker RCBO

Packaging & shipping
Faq:
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q 1.What's the payment term?
A.We accept tt,30% deposit and 70% balance agaisnt the copy of b/l.
Q 2.How's the delivery time ?
A.Usually it will take about 25 days for production
Q 3.Tell me the standard of package?
A.Normally are cartons, but also we can pack it according to your requirement.
Q4.Could you offer form a or c/o ?
A.It's totally not a problem.
We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do oem

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
