| Prod Model: |
Rigao PCB&PCBA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Copper Thickness: |
0.5oz-4oz |
| Board Thickness: |
0.15mm |
| Min. Line Width: |
0.1mm |
| Min. Line Spacing: |
0.1mm |
| Engineering Support: |
Support |
| PCB Testing: |
E-Testing |
| Color & Page: |
Multicolor |
| Color Of Silk-Screen: |
White,Black,Silver |
| Coler Of Solder Mask: |
Green, Black, Blue, White, Y |
| Samples Run Acceptable: |
Mass Production Welcome |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Aluminum Covered Copper Foil Layer |
| Flame Retardant Properties: |
V0 |
| Brand: |
Rigao |
Product Description
Welcome To China Visit Our Company Wesbite !

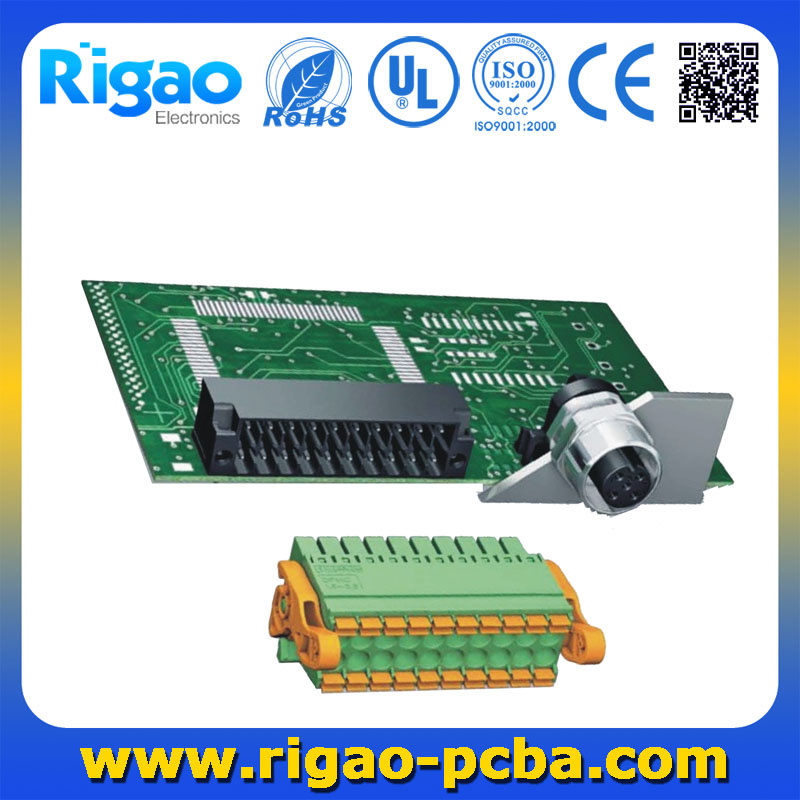

Electronic Assembly Products In China PCB&PCBA
Company Information
Shenzhen Rigao Electronics Co., Ltd apply itself to the manufactures and productions of printed circuit boards and flexible Printed Circuit Board(PCB) including buried blind via as well as Printed Circuit Boards(PCBs) SMT assembly for over years with our seasoned teamwork, the company now occupies a 5000sq.m manufacturing facility which our team provides world class expertise in PCBs, flexible PCBs and flex-rigid circuits design and manufacture across a broad base of technologies here. We understand the importance of our role in your product's success. From initial product conception to prototyping to full production, Rigao Corporation Limited can truly be your reliable manufacturing partner.
Product Description
Item |
Technical Index |
Layer |
1-22 layers(Rigid Board) |
1-10 layers(Flexible Board) |
Multi-layer |
Base Material |
FR4, PI, PET |
Cooper Thickness |
Rigid PCB |
0.5Oz to12Qz |
Flexible PCB |
18μm-105μm |
Min. Hole Size |
0.2mm |
Min. Line Width |
Rigid PCB |
0.1mm |
Flexible PCB |
3mil |
Min. Line Spacing |
Rigid PCB |
0.1mm |
Flexible PCB |
3mil |
Surface Treatment |
OSP/HASL Lead Free/ ENIG/Immersion Gold/Immersion Tin |
External Treatment |
Precise V-cut, externally pressed or milled, laser appearance |
External Tolerance |
±0.05mm |
Solder Mask Color |
Blue/White/Green/Red/Yellow |
Welding Resistance Film |
Covered in layers with PI and PET film |
Sensitive welding resistant oil/ welding resistant dry film/silk printing oil/separable welding resistant oil |
Type of oil |
Applicable to silk printing in multi-colors |
Manufacturing Capability for PCB Board
1). Material type: CEM-3,FR-4,FR-4-TG170/TG180,Halogen Free,Rogers,Arlon,Taconic,Isola,PTFE, Bergquist
2). Surface Treatment: HASL,HASL lead-free,HAL,Flash gold,immersion gold,OSP,Gold Finger Palting,Selective thick gold plating, immersion silver,immersion tin, Carbon ink,peelable mask
3). Solder mask colour: Green/MATT Green/Blue/Yello/White/Black/Red
4). Board Size: 650mm*1000mm
5). Board Layer: 1L-26L
6). Board thickness: 0.2mm to 6.0mm
7). Finished Copper thickness: 0.5 OZ to 6 OZ
8). Min. drilled hole size: 3mil (0.075mm)
9). Min. Line width/Line spacing: 3mil/3mil
10). Copper thickness in hole: >20um
11). Board thickness tolerance: ±10%
12). Outline tolerance: Routing:±0.1mm,Punching:±0.1mm
13). Hole tolerance: PTH: ±0.076mm , NPTH: ±0.05mm
14). impedance control tolerance: ±10%
15). Warp and Twist: <0.75%
16). Tested by:Flying-Probe Tester, Fixture tester , Visual Inspection
17). Special requirements: Buried and blind vias, impedance control, thick Cu PCB,selectivity plating gold 30 microinch
18). Profiling: Punching, Routing, V-CUT, Beveling
19). Certificate: UL,ISO 9001,ISO14001,ROHS
20). We have a sound quality management system,Ensure the quality of all products
Our Services
Shenzhen Rigao Electronics is an OEM manufacturer of PCB and PCBA, We also can
design PCB and PCBA for your as your request.
Single-side,double-sided and multilayer PCB and PCB Assembly manufacturer/OEM
- Contract Manufacturing
- Mixed-technology (High speed SMT & Through hole assembly)
- PCB Design & Assembly and copy service
- Prototyping
- Components purchasing
- Metal box,Coil,Cable and Wire Assemblies
- Plastics and Molds
- Fast turn around
We have NO MOQ,all of your order, we will be attention.Even 1 piece, we care!
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
