Electronic Balance Load Cell

Electronic Balance Load Cell
Price: Negotiable/Piece
Min Order: 10/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: QL-51D
Safe Class: RoHS Standard.
Max Capacity: 50g
Overload: 120%Fs
Power Supply: ≤6V
Name: Customized Best Accuracy 50g Load Cells (Ql-51d)
Pattern: Miniature

Product Description

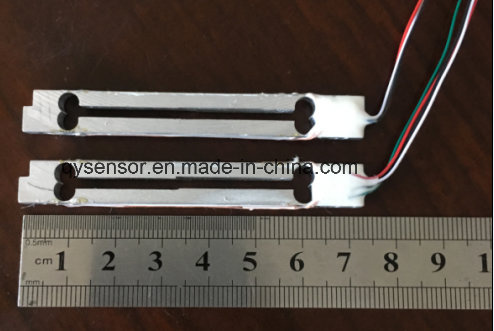

Customized Best Accuracy 50g Load Cells (QL-51D)
QL-51D miniature sensor is available in the capacities from 20g to 50g.
Aluminum-alloy construction with parallel beam type, silicon adhesive sealed, surface anodized and anti-corrosion.
Integral structure and easy installation.
Suitable for electronic balance and other high accuracy electronic weighing devices.

Features:
Capacity :20g to 50g
Defend grade:  IP65
High accuracy, parallel beam type, reliable performance.
Integral structure and easy installation.
Recommended platform size: 50x50mm

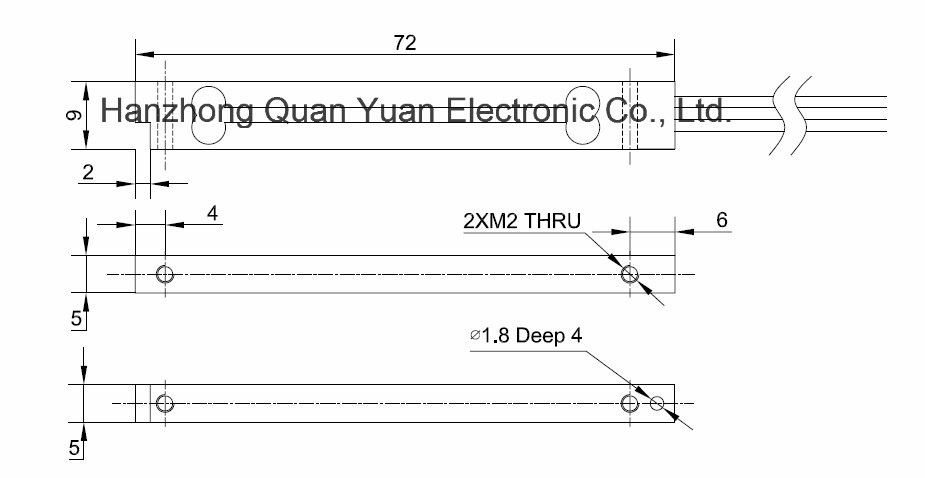

Electrical connection and Dimensions:


Technical Specifications:
Specifications:
Capacityg20, 30, 50
Safe overload%FS120
Ultimate overload%FS150
Rated outputmV/V0.8±0.1
Excitation voltageVdc≤6
Combined error%FS± 0.005
Zero unbalancemV/V± 0.1
Non-linearity%FS± 0.05
Hysteresis%FS± 0.05
Repeatability%FS± 0.05
Creep%FS/3min± 0.05
Input resistanceΩ1130 ± 20
Output resistanceΩ1000 ± 10
Insulation resistanceM Ω≥ 2000 @ 50 Vdc
Compensated temperature rangeºC-10 ~ +40
Temperature coefficient of SPAN%FS/10ºC± 2.0
Temperature coefficient of ZERO%FS/10ºC± 0.05
Electrical connection:
Excitation+ red     Excitation- black   Signal+ green   Signal- white
Four -color one line
Cable length
:140mm.

Packaging & ShippingOur ServicesCompany Information
Han Zhong Quan Yuan Electronic Co., LTD. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
     QuanYuan are certified according to ISO 9001:2000 and produce strictly in accordance withR60


Contact details:
Chloe Shu
HanZhong QuanYuan Electronic Co.,Ltd.
TEL: +86-916-2257989

https://cn.linkedin.com/in/qysensor
http://www.qysensor.com


Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

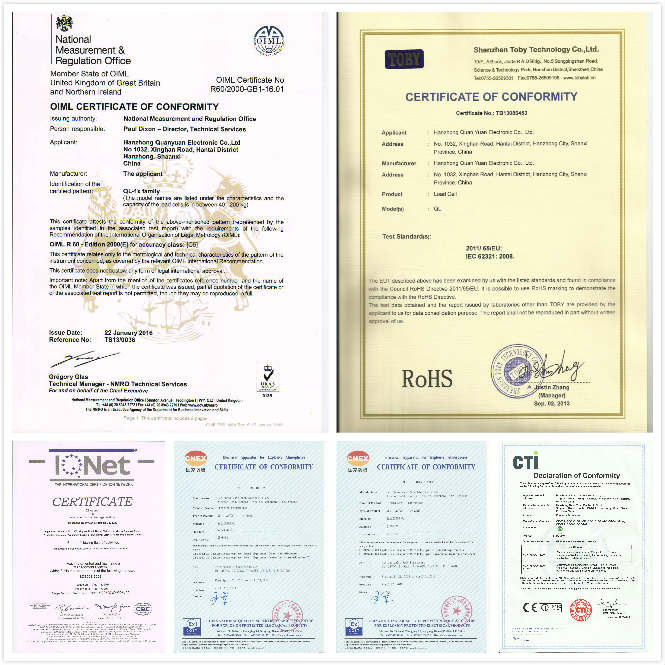

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).
