| Prod Model: |
RIGAO - pcb 0260 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Size: |
600*1200mm |
| Solder Mask: |
Green |
| Silk Screen: |
White |
| Sample Run: |
Yes |
| Engineering Support: |
Yes |
| Biz Service: |
Factory Services |
| Mass Production: |
Welcome |
| Product: |
Rigid PCB Board |
| Board Thickness: |
0.2~4mm |
| Copper Thickness: |
0.5~4oz |
| Structure: |
Double-Sided Rigid PCB |
| Production Process: |
Subtractive Process |
| Material: |
Polyester Glass Fiber Mat Laminate |
Product Description

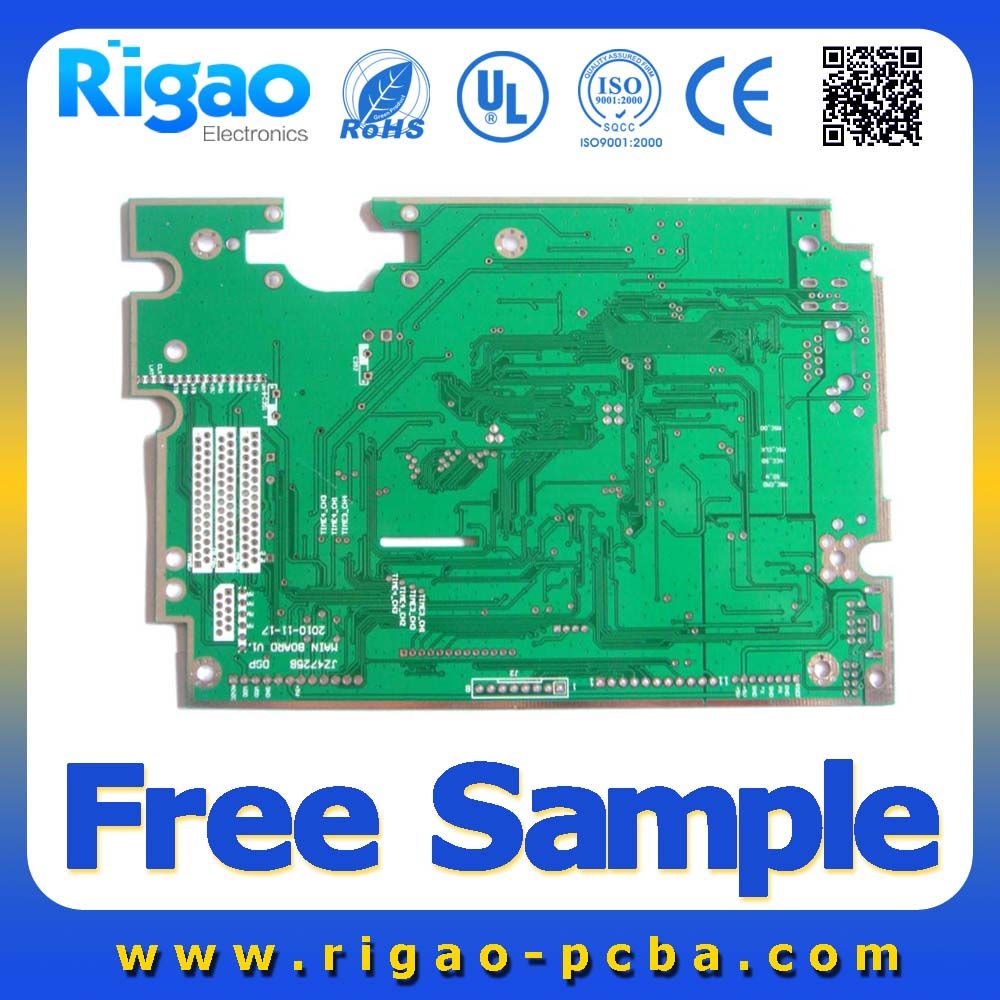

Product Name: Electronic board HASL Lead Free FR4 PCB
Material : FR4
Layers (GERBER FILE) : 2 layers
Board Thickness : 1.6mm
Copper Thickness : 1oz
Surface Treatment : HASL Lead Free
Solder Mask : green
Silk Screen : white
Data File Format : gerber file
Board size: 156*210mm
Min. Hole Size : 0.15mm
Hole Size Tolerance : +/-0.05mm (2 mil)
Profile and V-Cut : Jump V-Cut
Special Process : back drilling
Shenzhen Rigao Electronics Co, . Ltd is an experienced PCB and PCBA manufacturer in Shenzhen, China. After several years' developing and improving, our company establishes our main business in three principal areas-Printed Circuit Boards, PCB Assembly and Components Procurement. From prototype to mass production, we are able to guarantee a complete service with technical back up, offering a cost advantage and continuity of supply.
For making PCB assembly, customers just need to provide us with Gerber file and bill of material. Components procurement is one of the featured services we can provide. IC, battery, fuse, LCD, transformer, LED Diode, connector, sensor, we could purchase all these electronic parts to our customers.
Our PCB assembly capability and services: SMT/THT/DIP.1. Component Purchasing Service
2. SMT assembly and through hole components insertion
3. IC pre-programming / Burning on-line
4. Function testing as requested
5. Complete Unit assembly (which including plastics, metal box, Coil, cable inside etc)
6. Packing design
PCB and PCB assembly Description:1. Single sided PCB, double sided PCB & multilayer PCB with competitive price, good quality and excellent service.
2. FR-4, FR-4 High TG, CEM-1, CEM-3, Aluminum base material.
3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.
4. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
5. Quantities range from prototype to medium and batch production.
Please provide the following info for pcb and pcb assembly quotation:1. board material :
2. board thickness :
3. copper thickness :
4. surface treatment :
5. color of silk screen :
6. color of solder mask :
7. pcb data file : like gerber file
8. quantity :
Related pcb board product show:
pcb two:
PCB Three:
Please contact us if you have any inquiry on pcb and pcb assembly board, we will reply back to you asap;
Also please send the gerber file and pcb spec, that all info we need for pcb quotation.
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
