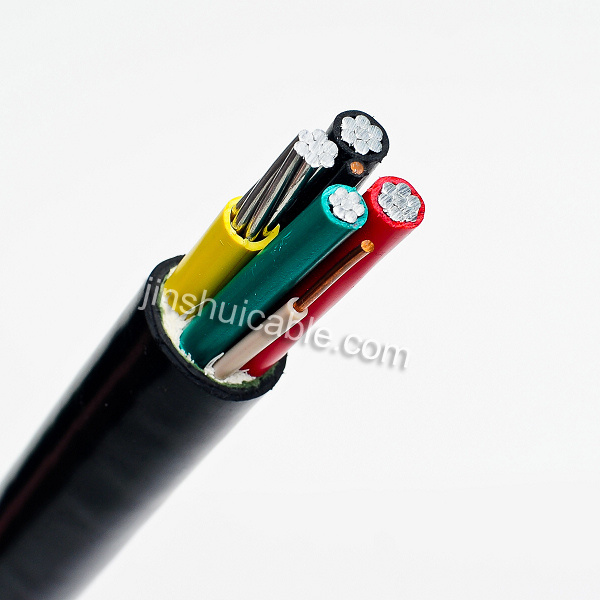

Electronic Cable/Low Voltage PVC Power Cable
| Price: |
Negotiable/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
power cable |
| Markets: |
South America,Southeast Asia,Africa,Mid East |
| Voltage: |
Low and Medium Voltage Cable |
| Insulation Material: |
PVC |
| Current: |
DC & AC |
| Application: |
Industrial |
| Certification: |
CE |
Product Description
PVC Insulated and Sheathed Power Cable
Standard: IEC, BS, VDE, AS/NZS, ICEA, JIS and so on, designing and manufacturing special power cable according to the other standards required by the Capacity: 2000km/month
Delivery Length: Accord with the request
Min. Order Qty: 1km
Application
With the characteristics of stable capability, advanced technology, broad material resources, low price, good flexible and easy to lay and maintain, the PVC Insulated and Sheathed Power Cable are suitable to be laid for distribution line with A. C. 50HZ and rated voltage up to 6kV.
Property
1. The long-time permissible working temperature of cable conductive core is not more than 70 ° C.
2. During short circuit (max. Permanent time is not more than 5 seconds), the max temperature of cable conductor is not more than 165° C.
3. The difference level of laying cable is not restricted. When laying the cable, ambient temperature is not lower than 0° C.
4. They have good chemical stability, and properties of acid resistance, alkali resistance, salt resistance, oil resistance, solvent resistance and flame resistance. Rty
5. Light weight, good bending property and easy installation and maintenance.
|
Cu Core |
AL Core |
Description |
Application |
|
VV |
VLV |
Cu(Al)Core PVC Insulated PVC Sheathed Power Cable |
For laying indoors, in ducts and tunnels, but unable to bear pulling force and pressure |
|
VY |
VLY |
Cu(Al)Core PVC Insulated PE Sheathed Power Cable |
|
VV22 |
VLV22 |
Cu(Al)Core PVC Insulated Steel Tape Armored PVC Sheathed Power Cable |
For laying indoors, in tunnels and directly in ground, able to bear pulling force and pressure |
|
VV23 |
VLV23 |
Cu(Al)Core PVC Insulated Steel Tape Armored PE Sheathed Power Cable |
|
VV32 |
VLV32 |
Cu(Al)Core PVC Insulated Fire Steel Wire Armored PVC Sheathed Power Cable |
For laying indoors, in wells and underwater, able to bear certain pulling force |
|
VV33 |
VLV33 |
Cu(Al)Core PVC Insulated Fire Steel Wire Armored PE Sheathed Power Cable |
|
VV42 |
VLV42 |
Cu(Al)Core PVC Insulated Thick Steel Wire Armored PVC Sheathed Power Cable |
For laying in wells and underwater, able to bear certain axial pressure |
|
VV43 |
VLV43 |
Cu(Al)Core PVC Insulated Thick Steel Wire Armored PE Sheathed Power Cable |
|
NH-VV |
NH-VLV |
Cu(Al)Core PVC Insulated PVC Sheathed Fire Resistant Cable |
For laying indoors, in ducts and tunnels, but unable to bear pulling force and pressure |
|
NH-VY |
NH-VLY |
Cu(Al)Core PVC Insulated PE Sheathed Fire Resistant Cable |
|
NH-VV22 |
NH-VLV22 |
Cu(Al)Core PVC Insulated Steel Tape Armored PVC Sheathed Fire Resistant Cable |
For laying indoors, in tunnels and directly in ground, able to bear pulling force and pressure |
|
NH-VV23 |
NH-VLV23 |
Cu(Al)Core PVC Insulated Steel Tape Armored PE Sheathed Fire Resistant Cable |
|
NH-VV32 |
NH-VLV32 |
Cu(Al)Core PVC Insulated Fire Steel Wire Armored PVC Sheathed Fire Resistant Cable |
For laying indoors, in wells and underwater, able to bear certain pulling force |
|
NH-VV33 |
NH-VLV33 |
Cu(Al)Core PVC Insulated Fire Steel Wire Armored PE Sheathed Fire Resistant Cable |
|
NH-VV42 |
NH-VLV42 |
Cu(Al)Core PVC Insulated Thick Steel Wire Armored PVC Sheathed Fire Resistant Cable |
For laying in wells and underwater, able to bear certain axial pressure |
|
NH-VV43 |
NH-VLV43 |
Cu(Al)Core PVC Insulated Thick Steel Wire Armored PE Sheathed Fire Resistant Cable |
