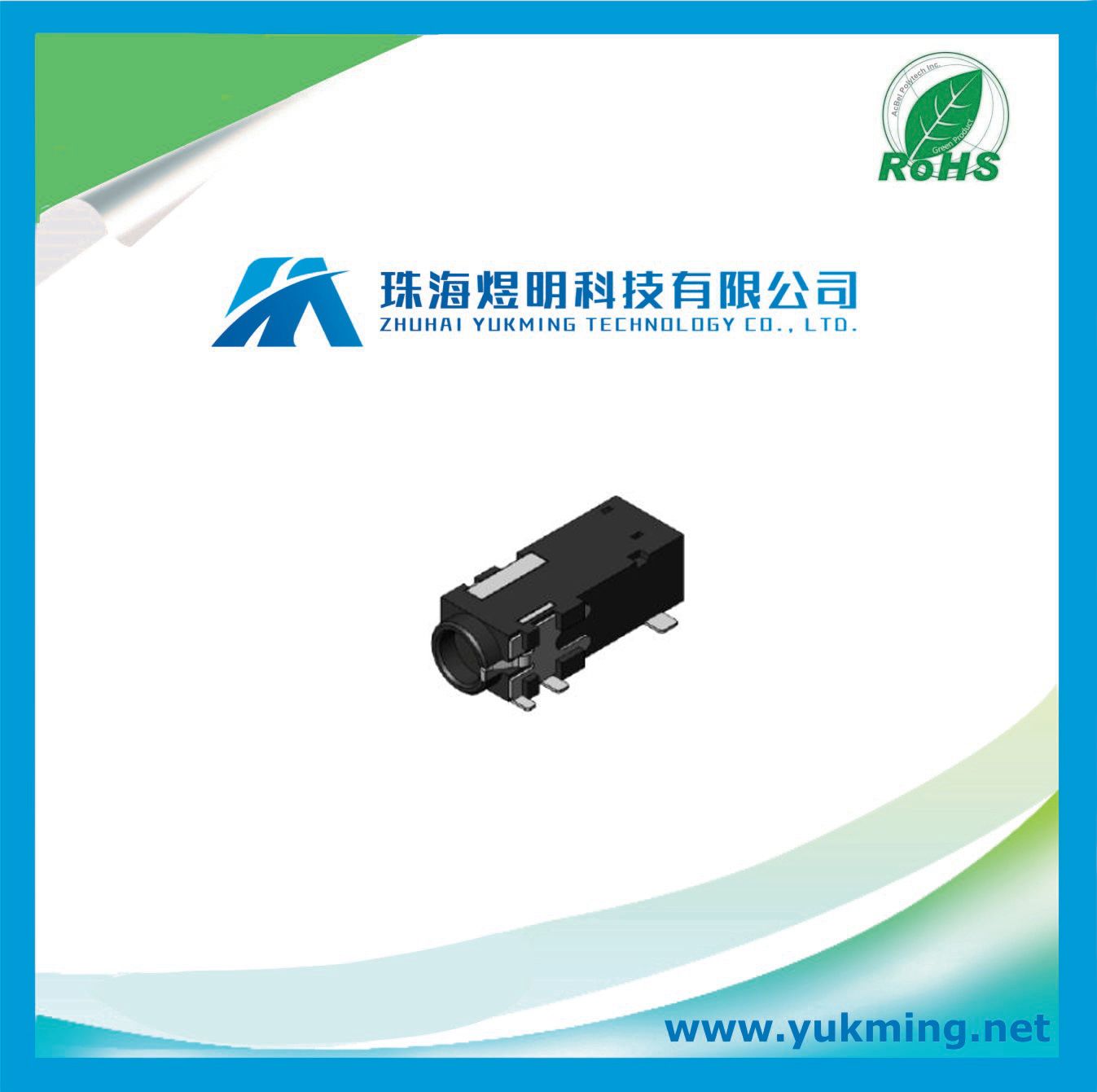

Electronic Component 3.5 mm Audio Jacks Sj-43516-SMT

Electronic Component 3.5 mm Audio Jacks Sj-43516-SMT
Price: US $ 1.5/Piece
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P,Paypal
Prod Model: SJ-43516-SMT
Category: Connectors, Interconnects
Family: Barrel - Audio Connectors
Seriers: Sj
Connector Typr: Phone Jack
Gender: Female
Signal Lines: Multiple
Industry Recognized Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Voltage Rated: 12VDC
Shielding: Unshielded
Number Of Positions/Contacts: 4 Conductors, 6 Contacts
Rated Current: 1A
Brand: Cuiinc
Color: Black

Product Description

3.5 MM AUDIO JACKS

FEATURES
• narrow footprint
• plastic bushing
• multiple switch options available

CategoryConnectors, Interconnects
FamilyBarrel - Audio Connectors
ManufacturerCUI Inc.
SeriesSJ
PackagingDigi-Reel
Part StatusActive
Connector TypePhone Jack
GenderFemale
Signal LinesMultiple
Industry Recognized Mating Diameter3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter0.142" (3.60mm)
Number of Positions/Contacts4 Conductors, 6 Contacts
Internal Switch(s)Two Switches
Mounting TypeSurface Mount, Right Angle
TerminationSolder
ShieldingUnshielded
FeaturesBoard Guide
Voltage - Rated12VDC
Current Rating1A
Mating Length/Depth0.551" (14.00mm)

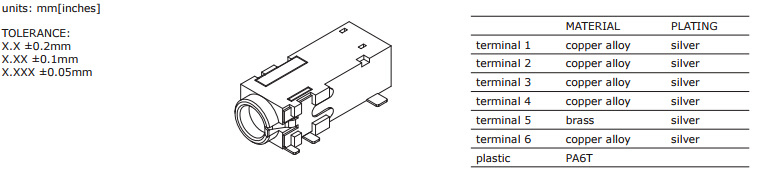

Contact Material - PlatingSilver
Body Colorblack
Includes1 pc - 1 Connector
