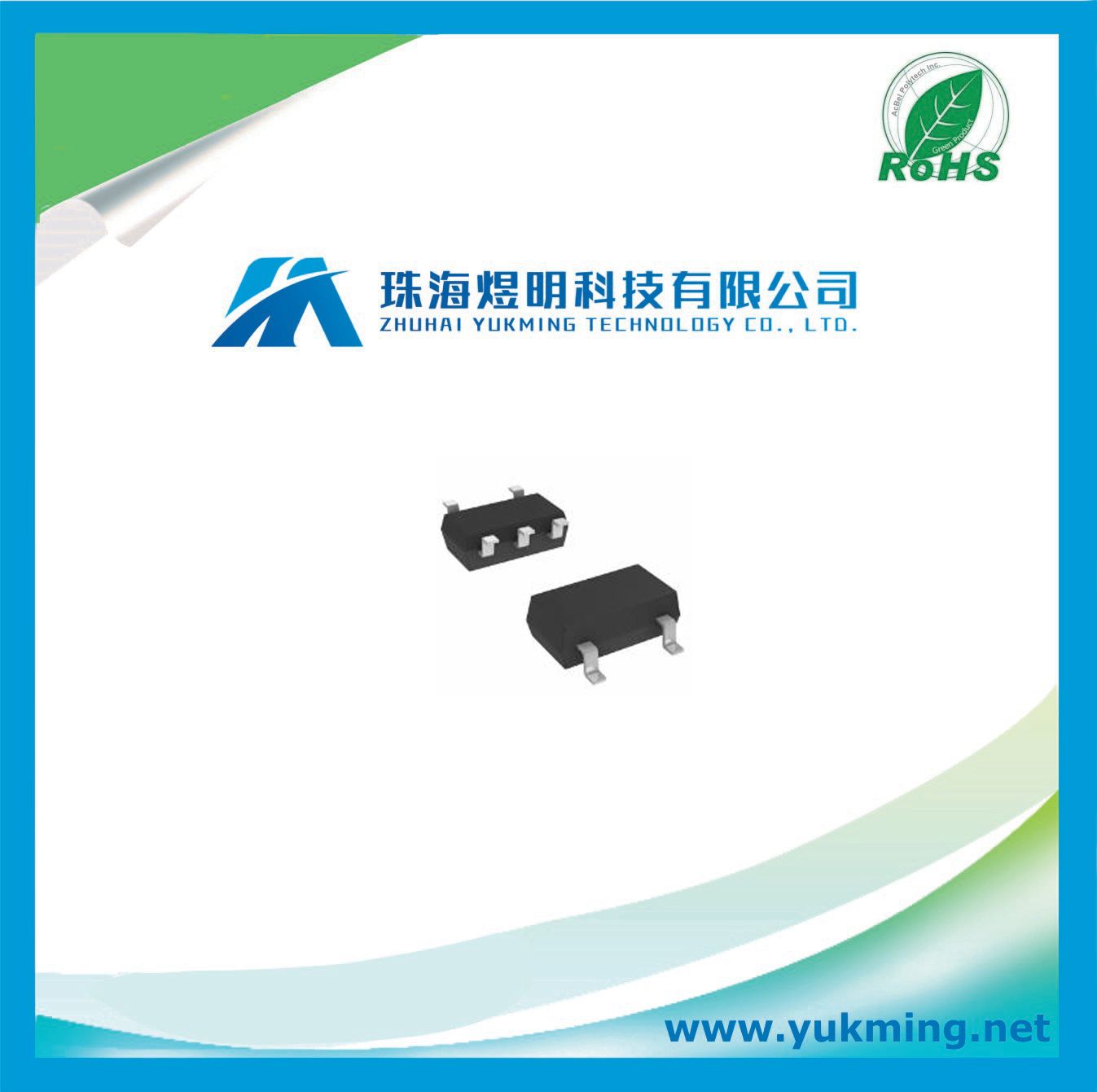

Electronic Component Bipolar (BJT) Arrays Pre-Biased Transistor

Name: Electronic Component Bipolar (BJT) Arrays Pre-Biased Transistor
Brand: all-electronics-online.com
SKU: 807035615
Availability: InStock
Rating: 5 (127 reviews)

Price:	US $ 0.0505/Piece
Min Order:	1292224/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UMG5NTR
Category:	Transistors - Bipolar (Bjt) - - Arrays, Pre-Biased
Part Status:	Active
Transistor Type:	2 NPN - Pre-Biased (Dual)
Current - Collector (IC) (Max):	100mA
Voltage - Collector Emitter Breakdown (M:	50
Resistor - Base (R1) (Ohms):	10k
Resistor - Emitter Base (R2) (Ohms):	47k

Product Description

Categories	Discrete Semiconductor Products
Categories	Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Manufacturer	Rohm Semiconductor
Packaging	Digi-Reel
Part Status	Active
Transistor Type	2 NPN - Pre-Biased (Dual)
Current - Collector (Ic) (Max)	100mA
Voltage - Collector Emitter Breakdown (Max)	50V
Resistor - Base (R1) (Ohms)	10k
Resistor - Emitter Base (R2) (Ohms)	47k
DC Current Gain (hFE) (Min) @ Ic, Vce	68 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic	300mV @ 250 uA, 5mA
Current - Collector Cutoff (Max)	500nA
Frequency - Transition	250MHz
Power - Max	150mW
Mounting Type	Surface Mount
Package / Case	5-TSSOP, SC-70-5, SOT-353
Supplier Device Package	UMT5

Features
1) Built-In Biasing Resistors.
2) Two DTC114Y chips in one package.
3) Emitter(GND)-common type.
4) Built-in bias resistors enable the configuration of
an inverter circuit without connecting external
input resistors (see inner circuit).
5) The bias resistors consist of thin-film resistors
with complete isolation to allow negative biasing
of the input. They also have the advantage of
completely eliminating parasitic effects.
6) Only the on/off conditions need to be set for
operation, making the circuit design easy.
7) Lead Free/RoHS Compliant.
