Zhuhai Yukming Technology Co., Ltd. >> Electronic Component Fixed Inductor Lqh3NPN100nj0l

Electronic Component Fixed Inductor Lqh3NPN100nj0l

Electronic Component Fixed Inductor Lqh3NPN100nj0l
Price: US $ 0.163/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,D/P,Paypal
Prod Model: LQH3NPN100NJ0L
Category: Fixed Inductor
Inductance: 10 Uh
Tolerance: 30 %
Max DC Current: 710 Ma
Max DC Resistance: 300 Mohms
Operation Temperature Range: -40~85
Self-Resonant Frequency: 35 MHz
Terminating Type: SMD/SMT
Type: Fixed Inductor
Inductor Value: 10 Uh

Product Description

Lead time2 to 3 days after receiving the payment.
Remark100% New and original ; 30 days warranty
Payment  Heng Seng Bank (Hong Kong), Paypal,
ShipmentDHL ,TNT ,FEDEX, UPS or any other express

Category: fixed inductor
Inductance: 10 uH
Tolerance: 30 %
Max DC current: 710 mA
Max DC resistance: 300 mOhms
Operation temperature range: - 40° C to + 85°C
self-resonant frequency: 35 MHz
Shield: Shielded
Terminating type: SMD/SMT
Package: 1212

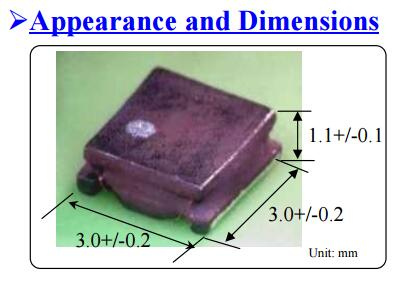

Length of shell: 3 mm
Width of shell: 3 mm
Height of shell: 1.1 mm
Trademark: Murata Electronics
Packing: Reel
Product: Power Inductor Wire Wound Type
Series: LQH3NP J0
Packing pcs: 1000
Measurement frequency: 1 MHz
Category: Power Inductor Wire Wound Type
Weight: 45 mg
