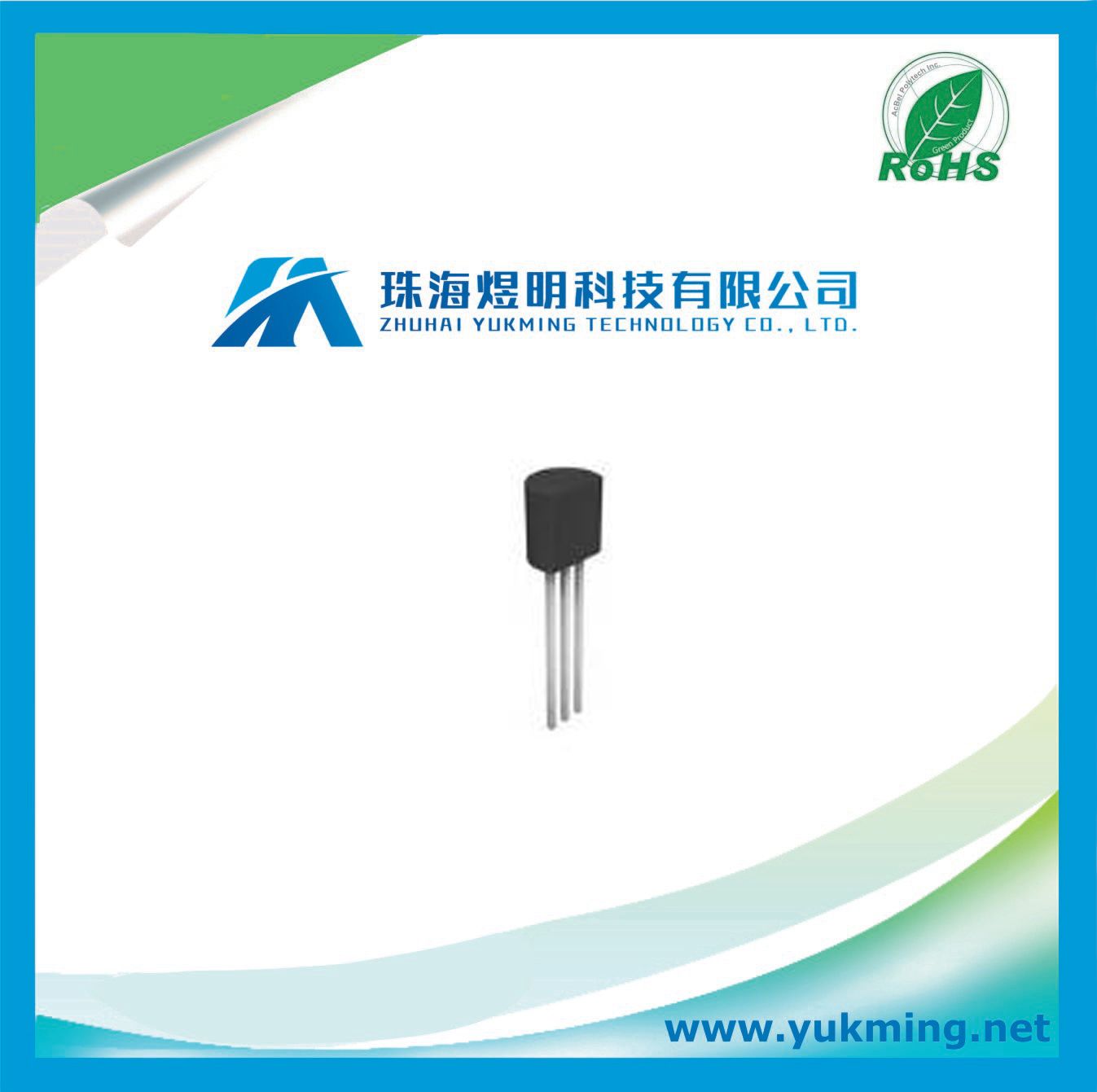

Electronic Component Gp Bjt NPN Amplifier Transistor

Prod Model:	MPS651RLRMG
Channel Type:	N
Number Of Elements Per Chip:	1
Maximum Collector Base Voltage (V):	80
Maximum Collector Emitter Voltage (V):	60
Maximum DC Collector Current (a):	2
Maximum Power Dissipation (MW):	625
Operating Temperature Range:	-55 to 150 Degree C

Product Description

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can.


Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require




Amplifier Transistor

MANUFACTURER
ON Semiconductor

PRODUCT CATEGORY
GP BJT

DESCRIPTION
Trans GP BJT NPN 60V 2A 3-Pin TO-92 Fan-Fold

If you require a general purpose BJT that can handle high voltages, then the NPN MPS651RLRMG BJT, developed by ON Semiconductor, is for you. This bipolar junction transistor's maximum emitter base voltage is 5 V. Its maximum power dissipation is 625 mW. It has a maximum collector emitter voltage of 60 V and a maximum emitter base voltage of 5 V. This bipolar junction transistor has an operating temperature range of -55 °C to 150 °C.

Specifications
EU RoHS Compliant
Type NPN
Configuration Single
Number of Elements per Chip 1
Maximum Collector Base Voltage (V) 80
Maximum Emitter Base Voltage (V) 5
Maximum Collector Emitter Voltage (V) 60
Maximum DC Collector Current (A) 2
Maximum Power Dissipation (mW) 625
Minimum DC Current Gain 75@50mA@2V|75@500mA@2V|75@1A@2V|40@2A@2V
Maximum Transition Frequency (MHz) 75(Min)
Product Category Bipolar Small Signal
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Maximum Collector Cut-Off Current (nA) 100
Packaging Fan-Fold
Maximum Collector Emitter Saturation Voltage (V) 0.3@100mA@1A|0.5@200mA@2A
Maximum Base Emitter Saturation Voltage (V) 1.2@100mA@1A
Mounting Through Hole
Package Height (mm) 5.33(Max)
Package Length (mm) 5.2(Max)
Package Width (mm) 4.19(Max)
PCB changed 3
Standard Package Name TO-92
Supplier Package TO-92
Pin Count 3
Lead Shape Formed
