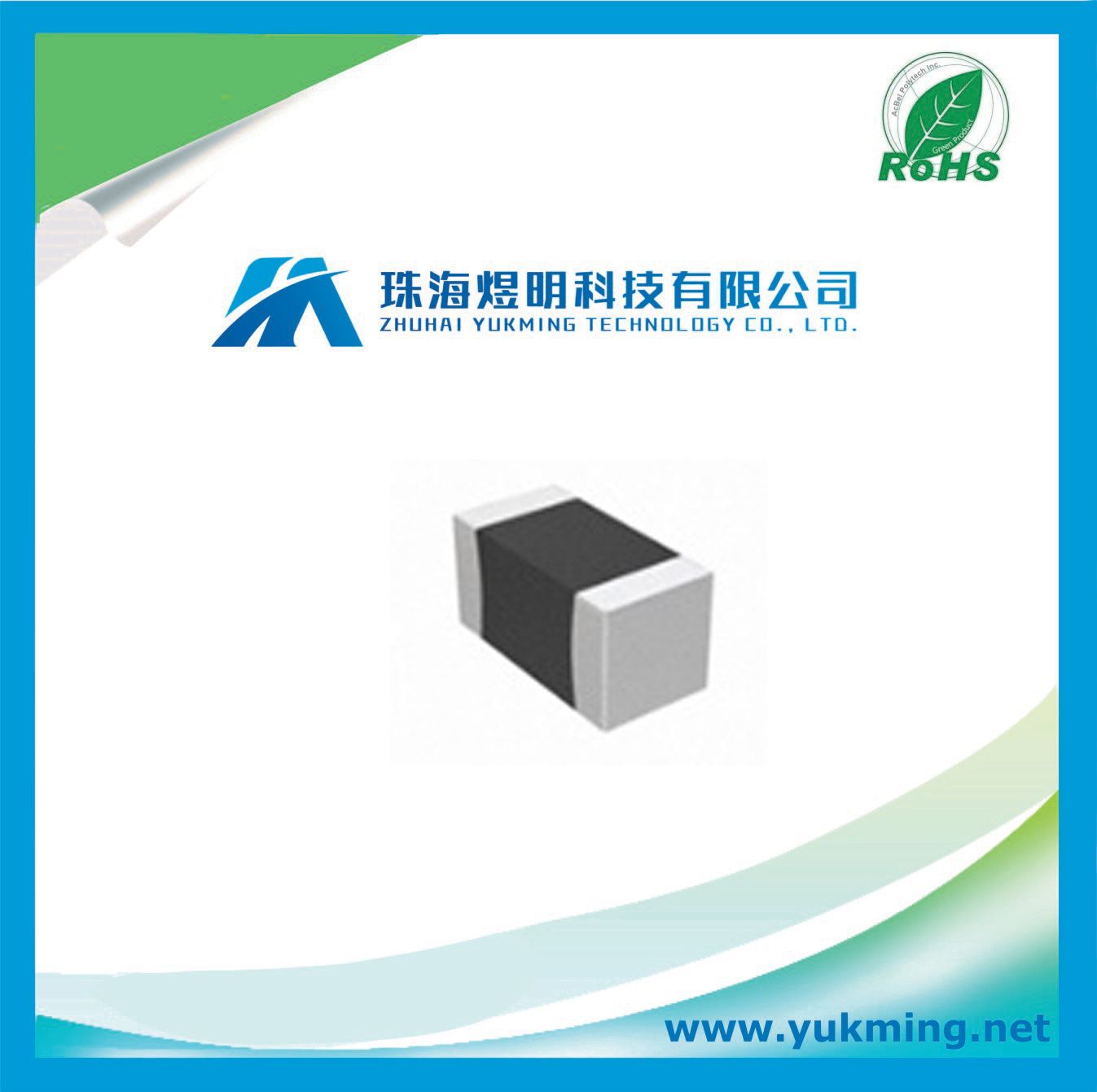

Name: Electronic Component Multilayer Ceramic Chip Capacitor
Brand: all-electronics-online.com
SKU: 799290735
Availability: InStock
Rating: 4.3 (122 reviews)

Price:	US $ 0.01-1.0/Piece
Min Order:	4000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CC0603KRX7R9BB123
Capacitance Value:	0.012UF
Voltage:	50VDC
Tolerance:	10%
Dielectric:	X7r
Package/Case:	0603
Maximum Operating Temperature (°c):	125
Type:	Multi-Layer Ceramic Capacitor
Application:	General Purpose
Package Type:	Surface Mount
Capacitance:	0.012UF
Structure:	0603
Usage:	General Purpose

Product Description

Hello, Thank you for your visiting!

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can.

Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require

PRODUCT CATEGORY
Capacitor Ceramic Multilayer

DESCRIPTION
Cap Ceramic 0.012uF 50V X7R 10% SMD 0603 125

Do you need a capacitor with a large capacitance but in a small package? Then you must be looking for this CC0603KRX7R9BB123 multilayer ceramic capacitor from Yageo! It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its capacitance value is 0.012uF. It has a tolerance of 10%. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep.

Specifications
EU RoHS Compliant
Capacitance Value 0.012uF
Voltage 50VDC
Tolerance 10%
Dielectric X7R
Technology Standard
Package/Case 0603
Mounting Surface Mount
Maximum Operating Temperature (°C) 125
Construction Flat
Case Style Ceramic Chip
Packaging Tape and Reel
Product Length (mm) 1.6
Product Depth (mm) 0.8
Product Height (mm) 0.8

SCOPE
This specification describes X7R
series chip capacitors with leadfree
Terminations.

APPLICATIONS
PCs, Hard disk, Game PCs
DVDs, Video cameras
Mobile phones
Data processing

FEATURES
Supplied in tape on reel
Nickel-barrier end termination
RoHS compliant
Halogen Free compliant

ORDERING INFORMATION -GLOBAL PART NUMBER, PHYCOMP
CTC & 12NC
All part numbers are identified by the series, size, tolerance, TC material,
packing style, voltage, process code, termination and capacitance value.

CONSTRUCTION
The capacitor consists of a
rectangular block of ceramic
dielectric in which a number of
interleaved metal electrodes are
contained. This structure gives
rise to a high capacitance per
unit volume.
The inner electrodes are
connected to the two end
terminations and finally covered
with a layer of plated tin (NiSn).
The terminations are lead-free. A
cross section of the structure is
shown in Fig.1.
