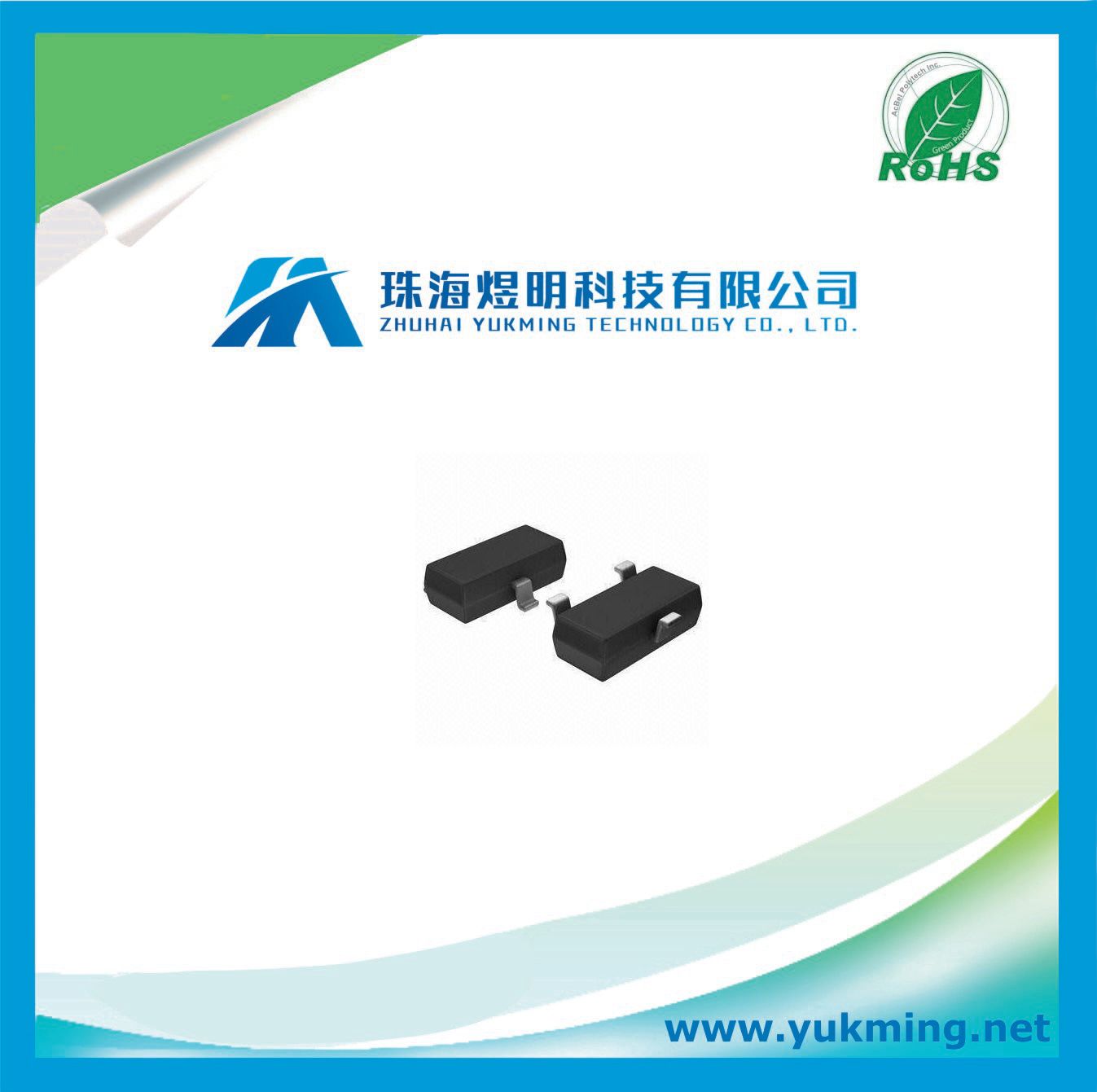

Electronic Component NPN Transistor of Three Terminals

Prod Model:	BC817-25LT1G
Type:	NPN
Number Of Elements Per Chip:	1
Maximum Collector Base Voltage (V):	50
Maximum Emitter Base Voltage (V):	5
Maximum Collector Emitter Voltage (V):	45
Maximum DC Collector Current (a):	0.5

Product Description

MANUFACTURER
ON Semiconductor

PRODUCT CATEGORY
GP BJT

DESCRIPTION
Trans GP BJT NPN 45V 0.5A Automotive 3-Pin SOT-23 T/R

The three terminals of this NPN BC817-25LT1G GP BJT from ON Semiconductor give it the ability to be used as either an electronic switch or amplifier. This bipolar junction transistor's maximum emitter base voltage is 5 V. Its maximum power dissipation is 300 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a maximum collector emitter voltage of 45 V and a maximum emitter base voltage of 5 V. This bipolar junction transistor has an operating temperature range of -55 °C to 150 °C.

Specifications
EU RoHS Compliant
Type NPN
Configuration Single
Number of Elements per Chip 1
Maximum Collector Base Voltage (V) 50
Maximum Emitter Base Voltage (V) 5
Maximum Collector Emitter Voltage (V) 45
Maximum DC Collector Current (A) 0.5
Material Si
Maximum Power Dissipation (mW) 300
Minimum DC Current Gain 160@100mA@1V|40@500mA@1V
Maximum Transition Frequency (MHz) 100(Min)
Product Category Bipolar Small Signal
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Maximum Collector Cut-Off Current (nA) 100
Packaging Tape and Reel
Maximum Collector Emitter Saturation Voltage (V) 0.7@50mA@500mA
Mounting Surface Mount
Package Height (mm) 0.94
Package Length (mm) 2.9
Package Width (mm) 1.3
PCB changed 3
Standard Package Name SOT-23
Supplier Package SOT-23
Pin Count 3
Lead Shape Gull-wing
