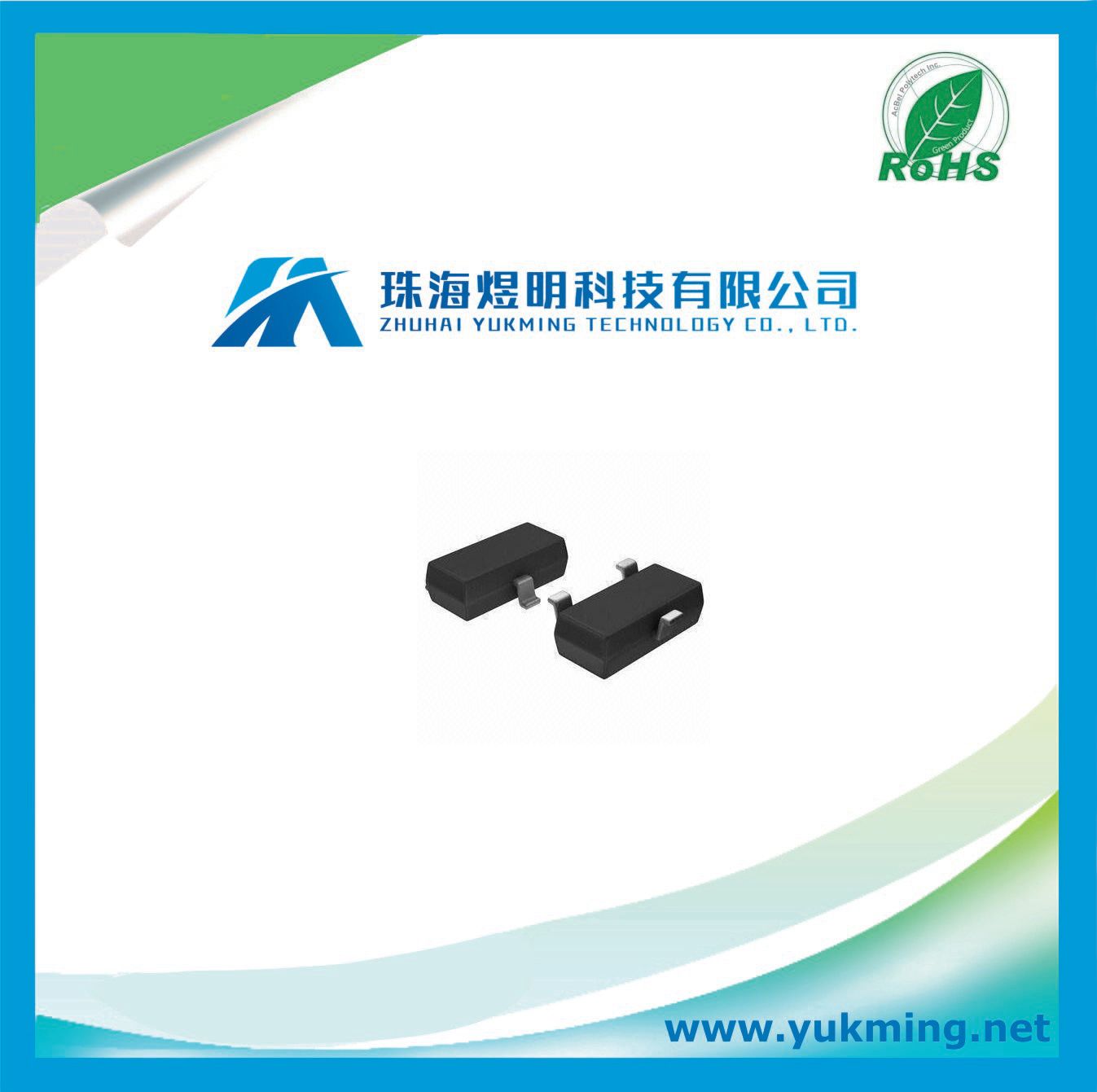

Electronic Component Precision Voltage Reference Transistor

Prod Model:	MCP1525-ITT
Output Voltages:	2.5V and 4.096V
Initial Accuracy:	+/-1% (Max.)
Temperature Drift:	+/-50 Ppm/°c (Max.)
Output Current Drive:	+/-2A
Maximum Input Current:	100 Ua @ +25 Degree C (M)
Operating Temperature Range:	-40~85 Degree C

Product Description

Features
• Precision Voltage Reference
• Output Voltages: 2.5V and 4.096V
• Initial Accuracy: ±1% (max.)
• Temperature Drift: ±50 ppm/°C (max.)
• Output Current Drive: ±2 mA
• Maximum Input Current: 100 µA @ +25°C (max.)
• Packages: TO-92 and SOT-23-3
• Industrial Temperature Range: -40°C to +85°C

Applications
• Battery-powered Systems
• Handheld Instruments
• Instrumentation and Process Control
• Test Equipment
• Data Acquisition Systems
• Communications Equipment
• Medical Equipment
• Precision Power supplies
• 8-bit, 10-bit, 12-bit A/D Converters (ADCs)
• D/A Converters (DACs)

The Microchip Technology Inc. MCP1525/41 devices
are 2.5V and 4.096V precision voltage references that
use a combination of an advanced CMOS circuit
design and EPROM trimming to provide an initial
tolerance of ±1% (max.) and temperature stability of
±50 ppm/°C (max.).

Description Value Find similar Parts
Screening Level Industrial
Max Processing Temp 260
Operating Temperature -40 to 85 °C
Load Regulation 1 mV/mA
Maximum Temperature Coefficient 50 ppm/°C
Initial Accuracy 1 %
Lead Finish Matte Tin
Maximum Output Current 2 mA
Mounting Surface Mount
Maximum Input Voltage 5.5 V
Topology Series
Line Regulation 350 uV/V
Output Voltage 2.5 V
