Electronic Component Switch Tactile off (ON)

Prod Model:	CB315FP
Maximum Current Rating (a):	0.05@24VDC
Maximum DC Voltage Rating (V):	24
Electrical Life (Cycles):	100000
Mechanical Life (Cycles):	100000
Operating Force (N):	1.57
Operation Temperature:	-2 to 70 Degree C
Certification:	RoHS
Type:	Switch Tactile

Product Description

MANUFACTURER
NKK Switches

PRODUCT CATEGORY
Switch Tactile

DESCRIPTION

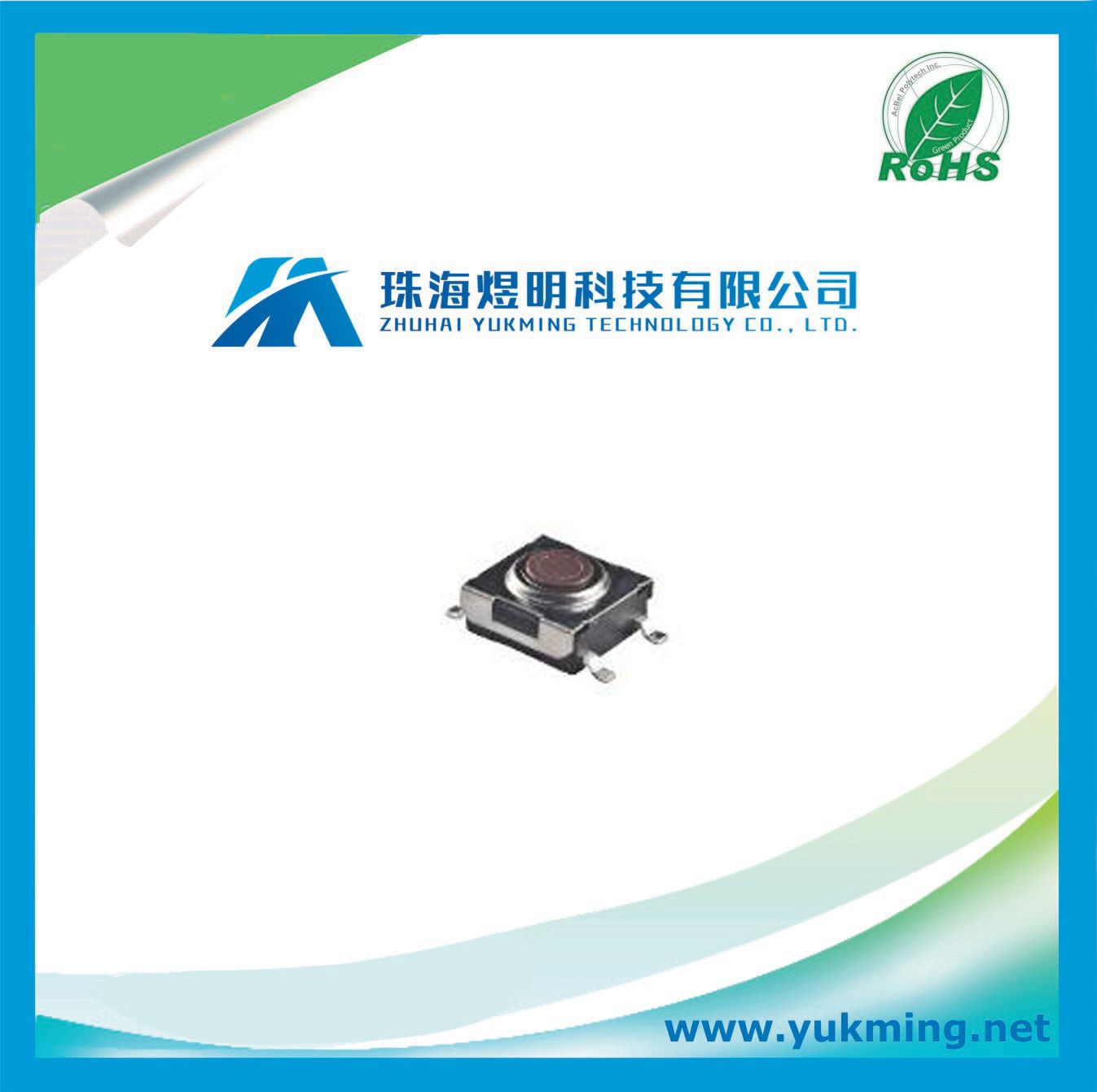

Switch Tactile OFF (ON) SPST Round Button Gull Wing 0.05A 24VDC 100000Cycles 1.57N SMD T/R

Turn on or off your circuit simply by applying pressure to this CB315FP tactile switch from NKK Switches. It has a SPST configuration. This device has a maximum current rating of 0.05 A @ 24VDC. This tactile switch has a minimum operating temperature of -25 °C and a maximum of 70 °C. The CB315FP tactile switch has a gull wing termination style. This round button actuator is 0.65 mm long. This product is 6.2 mm long, 3.1 mm tall and 9 mm deep. The maximum DC voltage rating is 24 VDC.

Specifications
EU RoHS Compliant
Switch Configuration OFF (ON)
Pole Throw Configuration SPST
Actuator Style Round Button
Body Orientation Straight
Maximum Current Rating (A) 0.05@24VDC
Maximum DC Voltage Rating (V) 24
Electrical Life (Cycles) 100000
Mechanical Life (Cycles) 100000
Operating Force (N) 1.57
Termination Style Gull Wing
Product Height (mm) 3.1
Product Length (mm) 6.2
Product Depth (mm) 9
Actuator Length (mm) 0.65
Mounting Surface Mount
Minimum Operating Temperature (°C) -25
Maximum Operating Temperature (°C) 70
Packaging Tape and Reel
Base Material Polyphthalamide
Dielectric Strength 250VAC
Maximum Contact Resistance (mOhm) 100
Minimum Insulation Resistance (MOhm) 100
Switching Function Momentary
Body Length (mm) 6.2
Body Depth (mm) 6.2
Body Height (mm) 2.45
Terminal Length (mm) 1.4
Terminal Pitch (mm) 4
Number of Rows 2
Row Spacing (mm) 8.9
Number of Terminals 4
Operating Temperature (°C) -25 to 70
Ground Terminal No
Base/Housing Material Polyphthalamide/N/A
Contact Material Beryllium Copper
Contact Plating Silver
