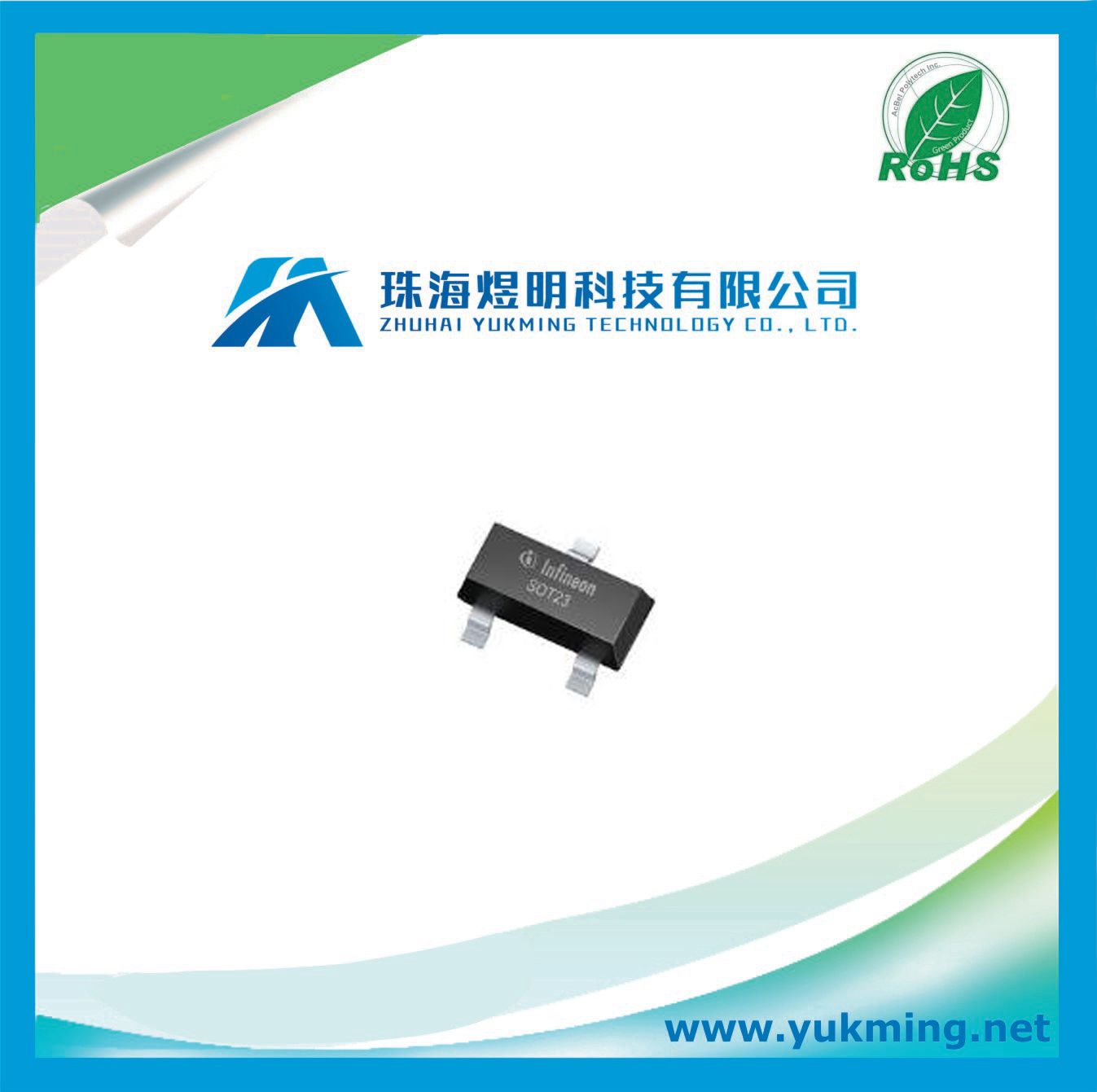

Electronic Component Trans Digital Bjt NPN Transistor

Prod Model:	BCR108E6327
Maximum Collector Emitter Voltage (V):	50
Maximum Continuous DC Collector Current:	100
Maximum Power Dissipation (MW):	200
Typical Resistor Ratio:	0.047
Typical Input Resistor (Kohm):	2.2
Maximum Collector Emitter Saturation Vol:	[email protected]@10mA
Minimum DC Current Gain:	70@5mA@5V
Mounting:	Surface Mount
Operating Temperature Range:	-65~150

Product Description

MANUFACTURER
Infineon Technologies AG

PRODUCT CATEGORY
Digital BJT

DESCRIPTION
Trans Digital BJT NPN 50V 100mA Automotive 3-Pin SOT-23 T/R

The NPN BCR108E6327HTSA1 digital transistor from Infineon Technologies is your alternative to traditional BJTs in that it can provide digital signal processing power. This product's maximum continuous DC collector current is 100 mA, while its minimum DC current gain is 70@5mA@5 V. It has a maximum collector emitter saturation voltage of [email protected]@10mA V. Its maximum power dissipation is 200 mW. It has a maximum collector emitter voltage of 50 V. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This transistor has an operating temperature range of -65 °C to 150 °C. It is made in a single configuration.

Specifications
EU RoHS Compliant
Type NPN
Configuration Single
Maximum Collector Emitter Voltage (V) 50
Maximum Continuous DC Collector Current (mA) 100
Maximum Power Dissipation (mW) 200
Typical Input Resistor (kOhm) 2.2
Typical Resistor Ratio 0.047
Maximum Collector Emitter Saturation Voltage (V) [email protected]@10mA
Minimum DC Current Gain 70@5mA@5V
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Mounting Surface Mount
Package Height (mm) 1(Max)
Package Length (mm) 2.9
Package Width (mm) 1.3
PCB changed 3
Standard Package Name SOT-23
Supplier Package SOT-23
Pin Count 3
Lead Shape Gull-wing
