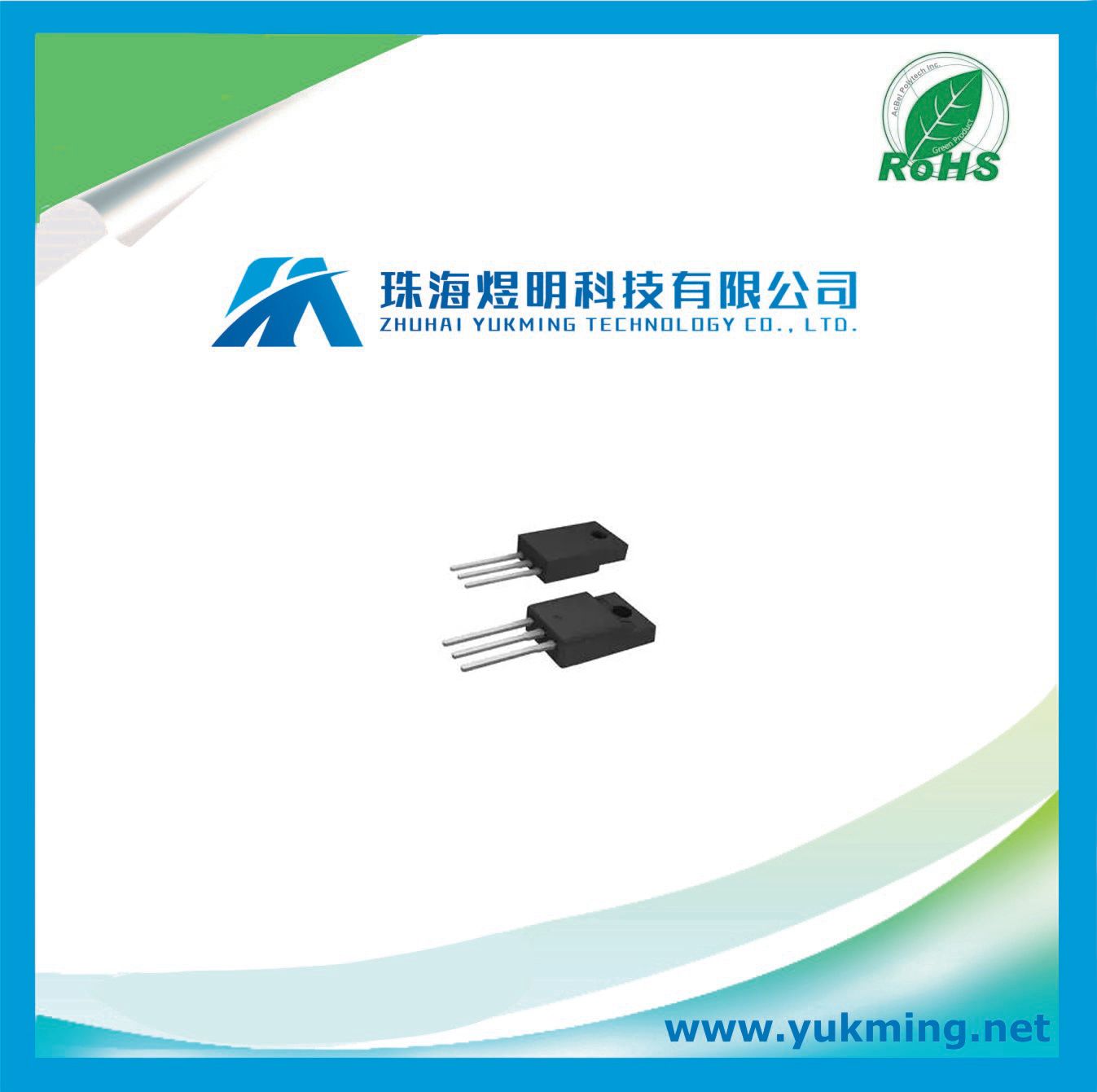

Electronic Component Transistor Mosfet Single for PCB Assembly

Name: Electronic Component Transistor Mosfet Single for PCB Assembly
Brand: all-electronics-online.com
SKU: 806635165
Availability: InStock
Rating: 4.7 (25 reviews)

Price:	US $ 0.9/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	STF11NM80
Fet Type:	N-Channel
Technology:	Mosfet (Metal Oxide)
Drain To Source Voltage (Vdss):	800V
Current - Continuous Drain (ID) @ 25 D C:	11A (Tc)
Power Dissipation (Max) 35W (Tc) Operati:	-65 to 150 Degree C

Product Description

Categories	Discrete Semiconductor Products
Categories	Transistors - FETs, MOSFETs - Single
Manufacturer	STMicroelectronics
Series	MDmesh™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	800V
Current - Continuous Drain (Id) @ 25°C	11A (Tc)
Rds On (Max) @ Id, Vgs	400 mOhm @ 5.5A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) @ Vgs	43.6nC @ 10V
Input Capacitance (Ciss) @ Vds	1630pF @ 25V
Power Dissipation (Max)	35W (Tc)
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack
Supplier Device Package	TO-220FP

TYPICAL RDS(on) = 0.35
LOW GATE INPUT RESISTANCE
LOW INPUT CAPACITANCE AND GATE
CHARGE
BEST RDS(on)*Qg IN THE INDUSTRY

DESCRIPTION
The MDmesh™ associates the Multiple Drain process
with the Company's PowerMesh™ horizontal
layout assuring an oustanding low on-resistance.
The adoption of the Company's proprietary strip
technique yields overall dynamic performance that
is significantly better than that of similar competition's
Products.

APPLICATIONS
The 800 V MDmesh™ family is very suitable for
single switch applications in particular for Flyback
and Forward converter topologies and for ignition
circuits in the field of lighting.
