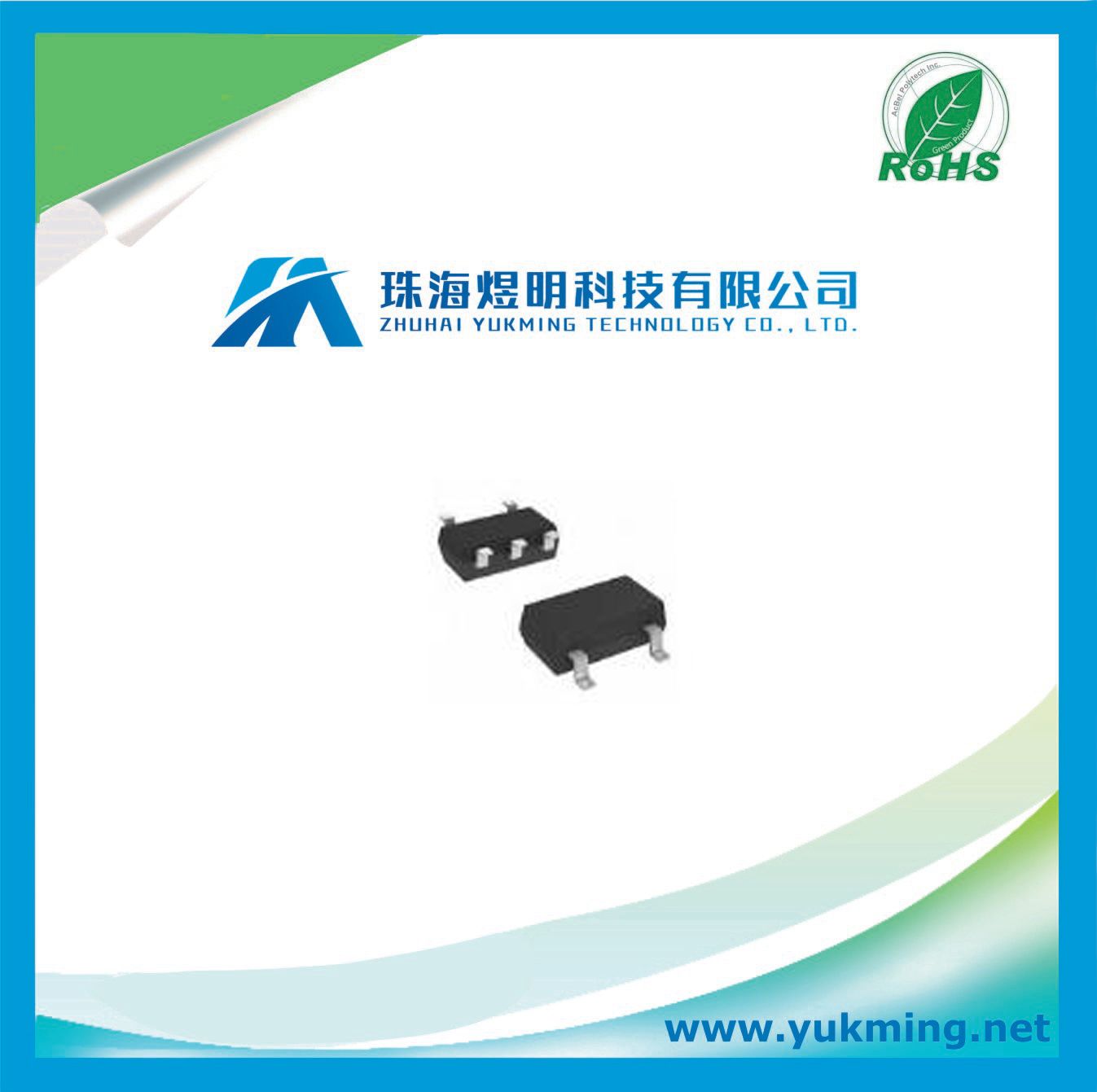

Electronic Component Transistor of ESD Suppressor Tvs 3V 5-Pin

Prod Model:	ESDA6V1W5

Product Description

MANUFACTURER
STMicroelectronics

PRODUCT CATEGORY
ESD Suppressors

DESCRIPTION
ESD Suppressor TVS 3V 5-Pin SOT-323 T/R

This tvs ESDA6V1W5 ESD protection device from STMicroelectronics is ideal for protecting your electronic components and circuits from electrostatic discharge. This ESD diode has a maximum ESD protection device voltage of 15@Air Gap/8@Contact Disc/25@HBM kV. This ESD diode has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It is made in a quad common anode configuration. Its capacitance value is 90(Typ) pF.

Specifications
EU RoHS Compliant
Configuration Quad Common Anode
Type TVS
Direction Type Uni-Directional
Maximum Working Voltage (V) 3
Maximum ESD Protection Voltage (kV) 15@Air Gap/8@Contact Disc/25@HBM
Maximum Leakage Current (uA) 1
Capacitance Value (pF) 90(Typ)
Number of Elements per Chip 4
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Packaging Tape and Reel
Mounting Surface Mount
Package Height (mm) 1(Max)
Package Length (mm) 2.2(Max)
Package Width (mm) 1.35(Max)
PCB changed 5
Standard Package Name SOT-323
Supplier Package SOT-323
Pin Count 5
Lead Shape Gull-wing
