Electronic Component Transistor of P-Channel Mosfet

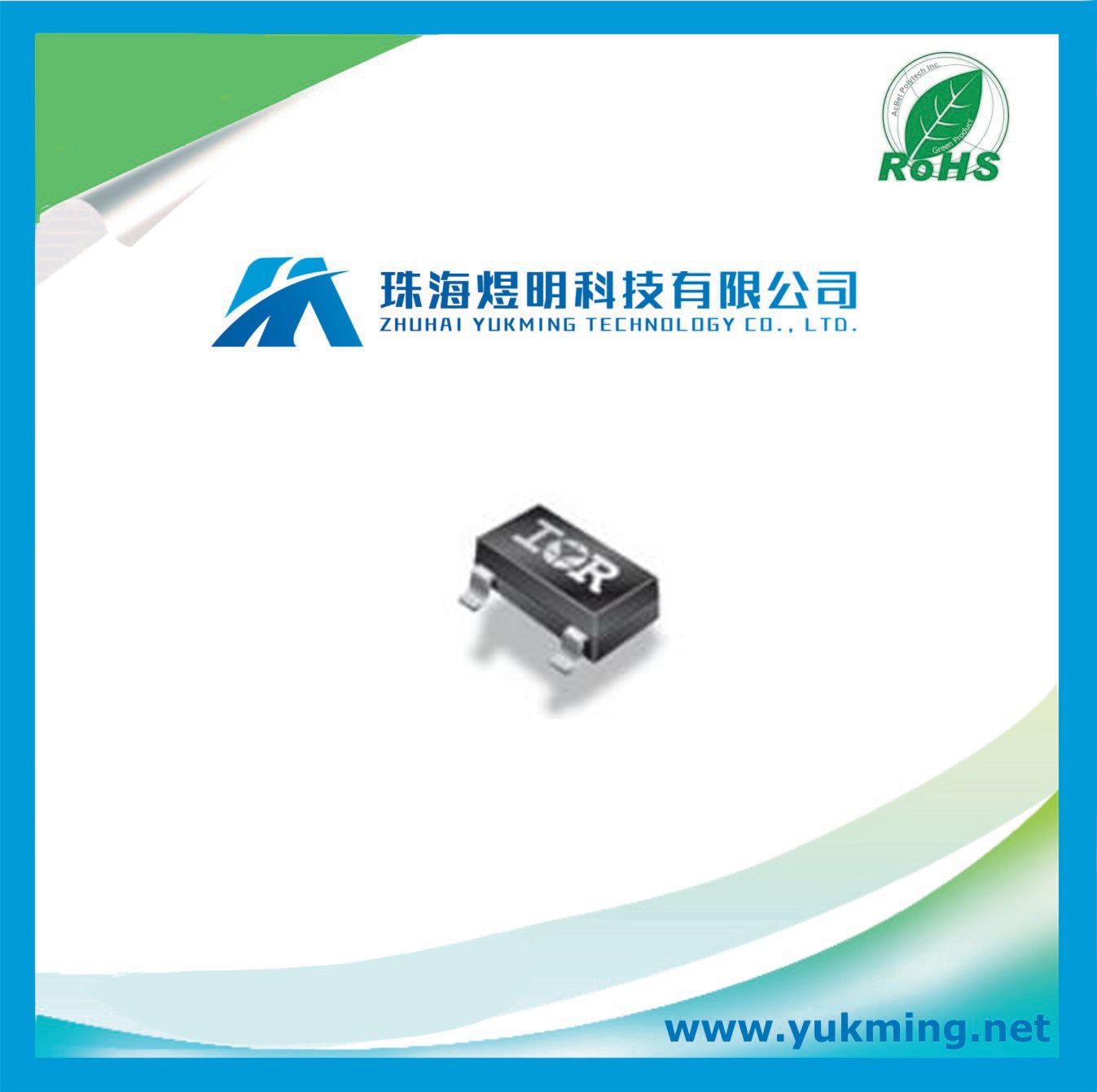

Prod Model:	IRLML6402TRPBF
Number Of Elements Per Chip:	1
Maximum Drain Source Voltage (V):	20
Maximum Gate Source Voltage (V):	+/-12
Maximum Continuous Drain Current (a):	3.7
Maximum Gate Threshold Voltage (V):	1.2
Maximum Drain Source Resistance (Mohm):	[email protected]

Product Description

Ultra Low On-Resistance

Ultra Low On-Resistance
P-Channel MOSFET
SOT-23 Footprint
Low Profile (<1.1mm)
Available in Tape and Reel
Fast Switching

Description
These P-Channel MOSFETs from International Rectifier utilize
advanced processing techniques to achieve extremely low on-
resistance per silicon area. This benefit, combined with the fast
switching speed and ruggedized device design that HEXFET
power MOSFETs are well known for, provides the designer with
an extremely efficient and reliable device for use in battery and
load management.
A thermally enhanced large pad leadframe has been incorporated
into the standard SOT-23 package to produce a HEXFET Power
MOSFET with the industry's smallest footprint. This package,
dubbed the Micro3™, is ideal for applications where printed
circuit board space is at a premium. The low profile (<1.1mm)
of the Micro3 allows it to fit easily into extremely thin application
environments such as portable electronics and PCMCIA cards.
The thermal resistance and power dissipation are the best

Specifications
EU RoHS Compliant
Product Category Power MOSFET
Technology HEXFET
Channel Mode Enhancement
Channel Type P
Number of Elements per Chip 1
Maximum Drain Source Voltage (V) 20
Maximum Gate Source Voltage (V) ±12
Maximum Continuous Drain Current (A) 3.7
Maximum Gate Threshold Voltage (V) 1.2
Maximum Drain Source Resistance (mOhm) [email protected]
Typical Gate Charge @ Vgs (nC) 8@5V
Typical Input Capacitance @ Vds (pF) 633@10V
Maximum Power Dissipation (mW) 1300
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Typical Output Capacitance (pF) 145
Packaging Tape and Reel
Mounting Surface Mount
Package Height (mm) 1.02(Max)
Package Length (mm) 3.04(Max)
Package Width (mm) 1.4(Max)
PCB changed 3
Standard Package Name SOT-23
Supplier Package SOT-23
Pin Count 3
Lead Shape Gull-wing
