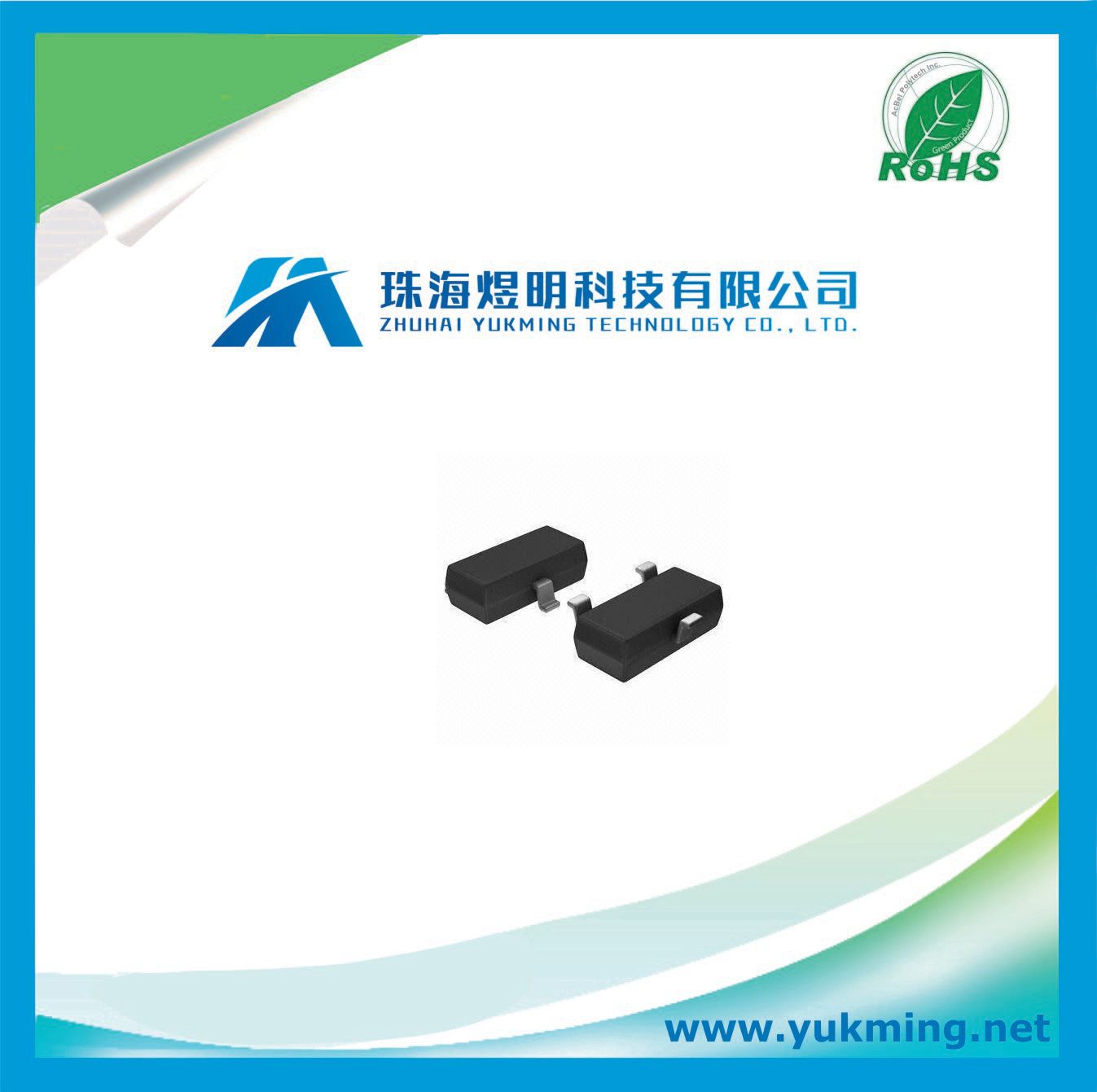

Electronic Component Transistor of Power Mosfet for Switching

Prod Model:	BSS84
Product Category:	Power Mosfet
Technology:	Dmos
Channel Type:	N
Number Of Elements Per Chip:	1
Maximum Drain Source Voltage (V):	50
Maximum Gate Source Voltage (V):	+/-20
Maximum Continuous Drain Current (a):	0.13
Maximum Drain Source Resistance (Mohm):	10000@5V

Product Description

PRODUCT CATEGORY
MOSFETs

DESCRIPTION
Trans MOSFET P-CH 50V 0.13A 3-Pin SOT-23 T/R

This BSS84 power MOSFET from Fairchild Semiconductor can not only be used for amplifying electronic signals but also for switching between electronic signals. Its maximum power dissipation is 360 mW. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This MOSFET transistor has an operating temperature range of -55 °C to 150 °C. This device utilizes dmos technology. This P channel MOSFET transistor operates in enhancement mode.

Specifications
EU RoHS Compliant
Product Category Power MOSFET
Technology DMOS
Channel Mode Enhancement
Channel Type P
Number of Elements per Chip 1
Maximum Drain Source Voltage (V) 50
Maximum Gate Source Voltage (V) ±20
Maximum Continuous Drain Current (A) 0.13
Maximum Drain Source Resistance (mOhm) 10000@5V
Typical Gate Charge @ Vgs (nC) 0.9@5V
Typical Input Capacitance @ Vds (pF) 73@25V
Maximum Power Dissipation (mW) 360
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Temperature Grade Military
Mounting Surface Mount
Package Height (mm) 0.93
Package Length (mm) 2.92
Package Width (mm) 1.3
PCB changed 3
Standard Package Name SOT-23
Supplier Package SOT-23
Pin Count 3
Lead Shape Gull-wing
