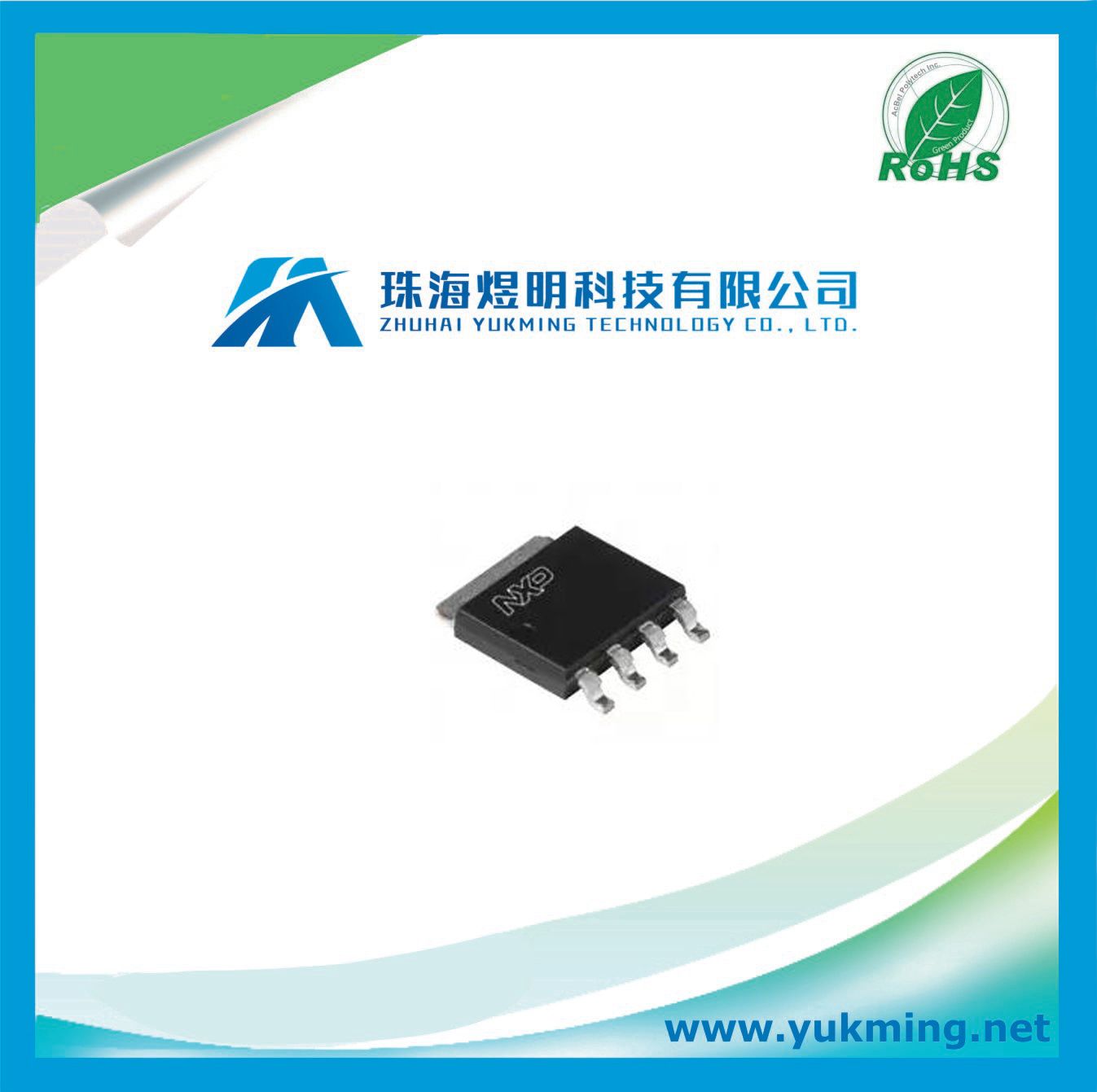

Electronic Component Transistor of Single Mosfet for PCB Assembly

Name: Electronic Component Transistor of Single Mosfet for PCB Assembly
Brand: all-electronics-online.com
SKU: 806588345
Availability: InStock
Rating: 4.8 (108 reviews)

Price:	US $ 0.703/Piece
Min Order:	1500/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PSMN1R0-30YLC
Operating Temperature Range:	-55 to 175 Degree C
Drain To Source Voltage (Vdss):	30V
Power Dissipation (Max):	272W(Tc)
Package Type:	Digi Reel

Product Description

Categories	Discrete Semiconductor Products
Categories	Transistors - FETs, MOSFETs - Single
Manufacturer	NXP USA Inc.
Packaging	Digi-Reel
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25 degree C	100A (Tc)
Rds On (Max) @ Id, Vgs	1.15 mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	1.95V @ 1mA
Gate Charge (Qg) @ Vgs	103.5nC @ 10V
Input Capacitance (Ciss) @ Vds	6645pF @ 15V
Power Dissipation (Max)	272W (Tc)
Operating Temperature	-55 degree C ~ 175 degree C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-100, SOT-669, 4-LFPAK
Supplier Device Package	LFPAK, Power-SO8

Zhuhai Yukming Technology Co., Ltd. is mainly engaged in R&D and marketing of car radar and camera system for blind spot, with a team made up of professional vehicle electronics experts and excellent management talents we have established good market network and service system now.

In the meantime, we can supply with original ICs and other electronic components including diodes, LEDs, capacitor, especially electrolytic capacitors, connectors, inductors, relays etc.

We take scientific and technological innovation as the forerunner, integrity management and long-term cooperation as development criterion, build credibility with quality to serve the global CM, OEM, ODM and EMS, this is our consistent pursuit.

All of you are welcomed to visit us and give instructions, so that we can develop and make the progress hand in hand.

Following "Quality First, Service Oriented", Yukming is here for you!
