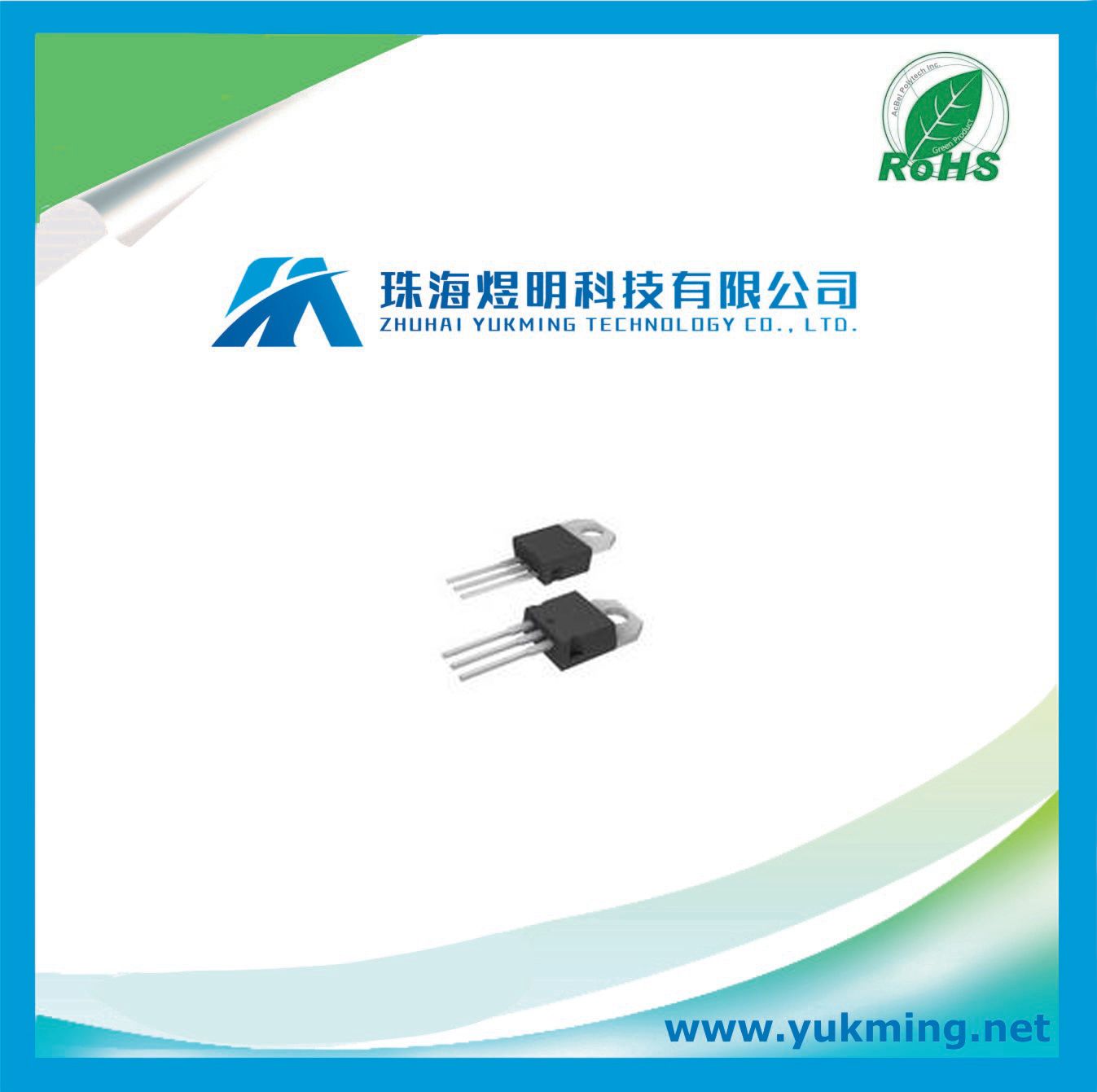

Electronic Component Transistor of Trans Mosfet N-Channal

Prod Model:	STP90N55F4
Category:	Power Mosfet
Channel Mode:	Enhancement
Channel Type:	N
Number Of Elements Per Chip:	1
Maximum Drain Source Voltage (V):	55

Product Description

MANUFACTURER
STMicroelectronics

PRODUCT CATEGORY
MOSFETs

DESCRIPTION
Trans MOSFET N-CH 55V 90A 3-Pin(3+Tab) TO-220 Tube

Compared to traditional transistors, STP90N55F4 power MOSFETs, developed by STMicroelectronics, are able to both quickly switch between data lines as well as amplify the signals themselves.

Specifications
EU RoHS Compliant
Product Category Power MOSFET
Channel Mode Enhancement
Channel Type N
Number of Elements per Chip 1
Maximum Drain Source Voltage (V) 55
Maximum Gate Source Voltage (V) ±20
Maximum Continuous Drain Current (A) 90
Maximum Drain Source Resistance (mOhm) 8@10V
Typical Gate Charge @ Vgs (nC) 90@10V
Typical Gate Charge @ 10V (nC) 90
Typical Input Capacitance @ Vds (pF) 4800@25V
Maximum Power Dissipation (mW) 150000
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 175
Packaging Tube
Mounting Through Hole
Package Height (mm) 9.15(Max)
Package Length (mm) 10.4(Max)
Package Width (mm) 4.6(Max)
PCB changed 3
Tab Tab
Standard Package Name TO-220
Supplier Package TO-220
Pin Count 3
Lead Shape Through Hole
