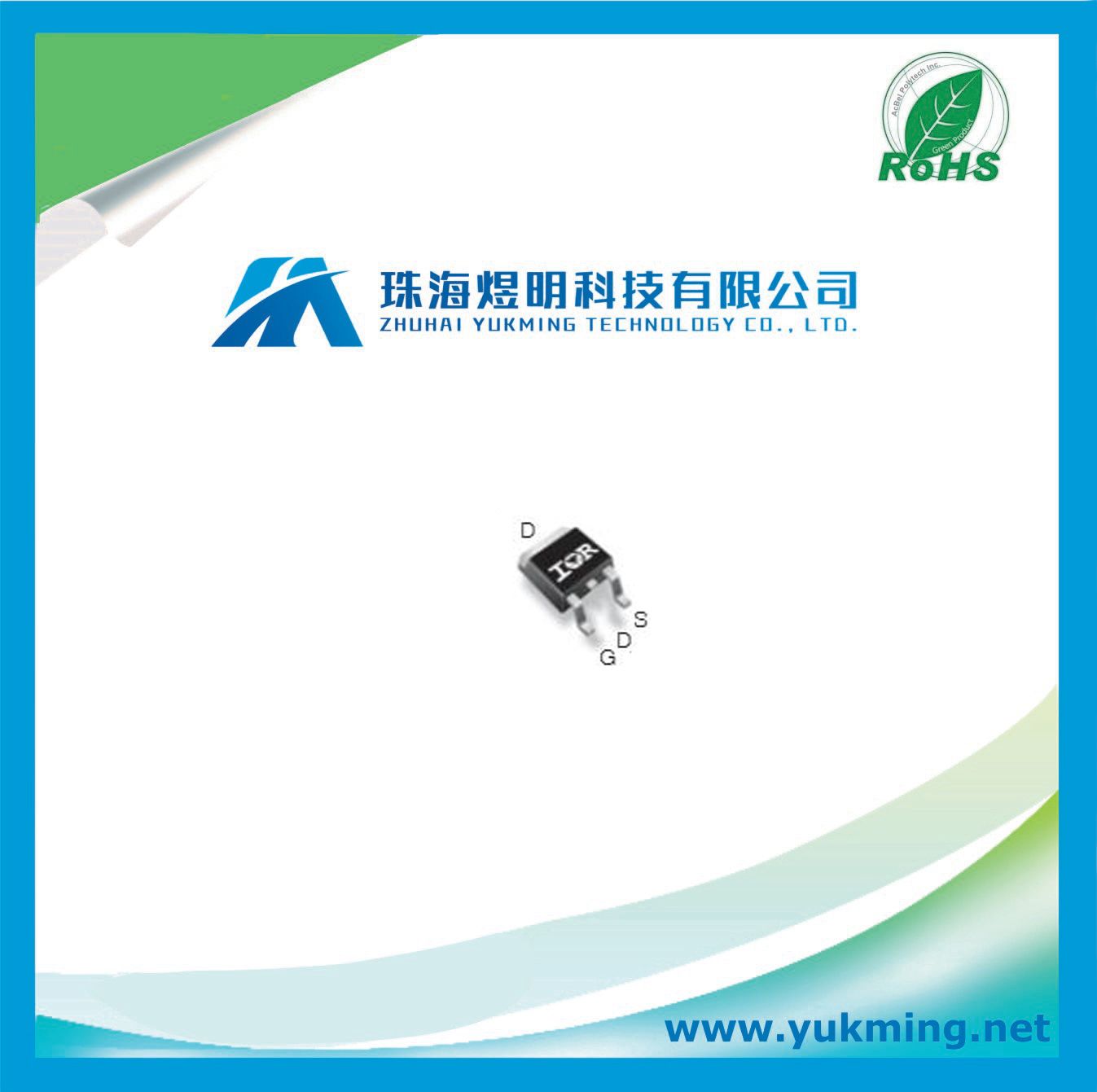

Electronic Component Transistor of Trans Mosfet N-Channel

Name: Electronic Component Transistor of Trans Mosfet N-Channel
Brand: all-electronics-online.com
SKU: 805538115
Availability: InStock
Rating: 5 (134 reviews)

Price:	US $ 0.12/Piece
Min Order:	12000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	IRLR8726TRPBF
Product Category:	Power Mosfet
Technology:	Hexfet
Channel Mode:	Enhancement
Channel Type:	N
Number Of Elements Per Chip:	1
Maximum Drain Source Voltage (V):	30
Maximum Gate Source Voltage (V):	+/-12
Maximum Continuous Drain Current (a):	86
Maximum Drain Source Resistance (Mohm):	5.8@10V

Product Description

MANUFACTURER
Infineon Technologies AG

PRODUCT CATEGORY
MOSFETs

DESCRIPTION
Trans MOSFET N-CH 30V 86A 3-Pin(2+Tab) DPAK T/R

Specifications
EU RoHS Compliant
Product Category Power MOSFET
Technology HEXFET
Channel Mode Enhancement
Channel Type N
Number of Elements per Chip 1
Maximum Drain Source Voltage (V) 30
Maximum Gate Source Voltage (V) ±12
Maximum Continuous Drain Current (A) 86
Maximum Drain Source Resistance (mOhm) 5.8@10V
Typical Gate Charge @ Vgs (nC) [email protected]
Typical Input Capacitance @ Vds (pF) 2150@15V
Maximum Power Dissipation (mW) 75000
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 175
Packaging Tape and Reel
Temperature Grade Military
Mounting Surface Mount
Package Height (mm) 2.39(Max)
Package Length (mm) 6.73(Max)
Package Width (mm) 6.22(Max)
PCB changed 2
Tab Tab
Standard Package Name TO-252
Supplier Package DPAK
Pin Count 3
Lead Shape Gull-wing
